Parameter Description

Query Max Reponses Time

Enter the maximum query response time value here. The range is from 1 to 25

seconds. This configures the period of time which the group member can respond

to an IGMP query message before the router removes the membership. The

group membership lifetime is equal to the query interval times the robustness plus

the maximum response time.

Select the Default option to use the default value.

Robustness Variable

Enter the robustness variable value here. The range is from 1 to 7. The

robustness variable provides fine tuning to allow for expected packet loss on an

interface.

Select the Default option to use the default value.

Last Member Query Interval

Enter the Last Member Query Interval value here. The range is from 1 to 25

seconds. When the router receives a leave message from a receiver to leave a

group or a channel, the router will send the Group Specific Query or Group-

Source Specific Query message to the receiver interface. The IGMP Last Member

Query Interval will be advertised in the query message and conveyed to the

receiver. This configures the period that the router will send the next group-

specific query or group-source specific query message if there is no report from

receiver for the specific group or specific channel. The router will retry for the last

member query count. If no report messages are received after the retry count, the

interface will remove the membership from the specific group or specific channel.

Select the Default option to use the default value.

Subscriber Source IP

Check

Select to enable or disable the subscriber source IP check feature here. By

default, the IGMP report or leave messages received by the interface will be

checked to determine whether its source IP is in the same network as the

interface. If they are not in the same network, the message information won’t be

learned by the IGMP protocol.

Click the Back button to return to the previous window.

Click the Apply button to accept the changes made.

IGMP Static Group Settings

This window is used to display and configure the IGMP static group settings. Use this window to create an IGMP static

group in the case that the attached host does not support the IGMP protocol. Once configured, the group member

entry is added to the IGMP cache.

To view the following window, click L3 Features > IP Multicast Routing Protocol > IGMP > IGMP Static Group

Settings, as shown below:

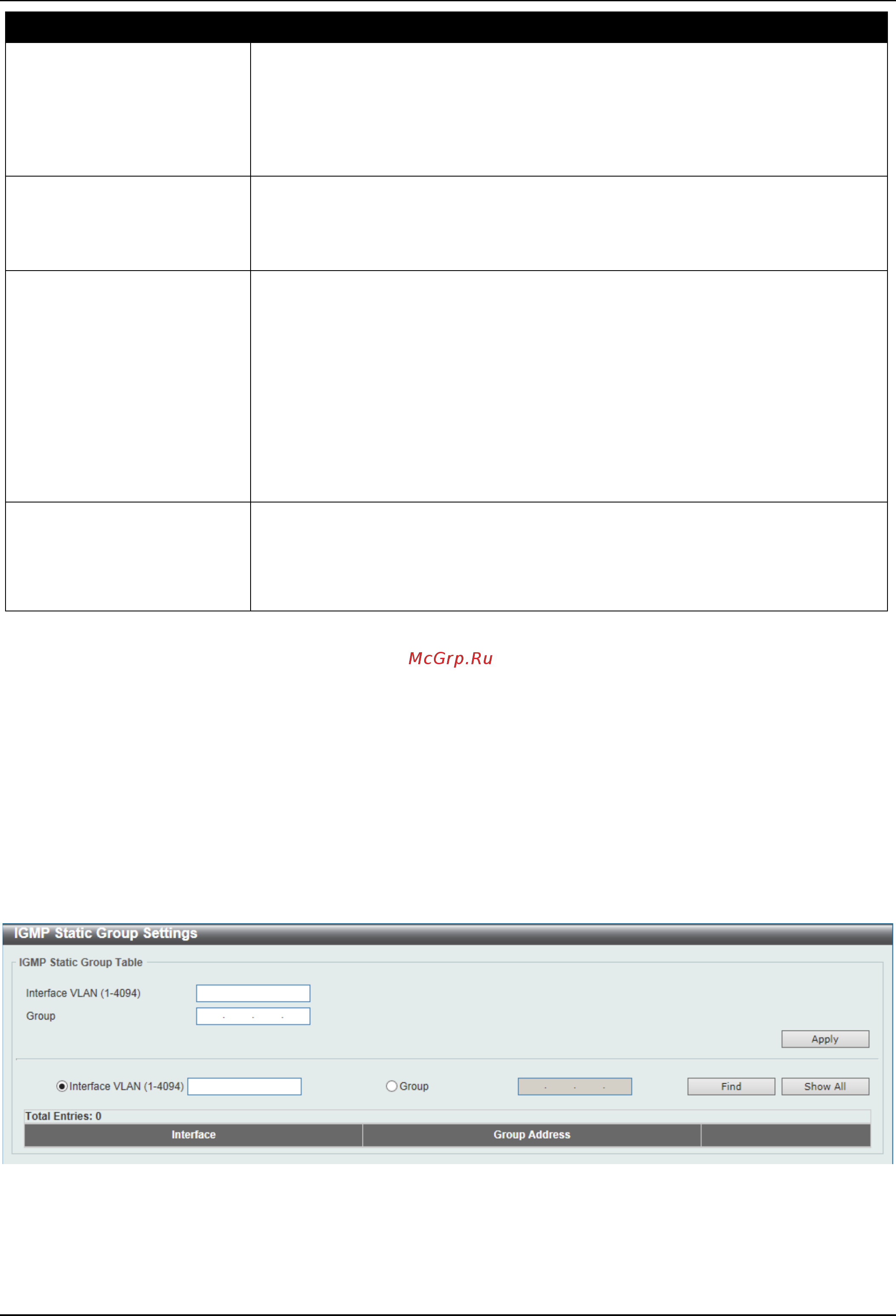

Figure 6-87 IGMP Static Group Settings Window
