Aggregate Policer

This window is used to display and configure the aggregate policer settings.

To view the following window, click QoS > Advanced Settings > Aggregate Policer, as shown below:

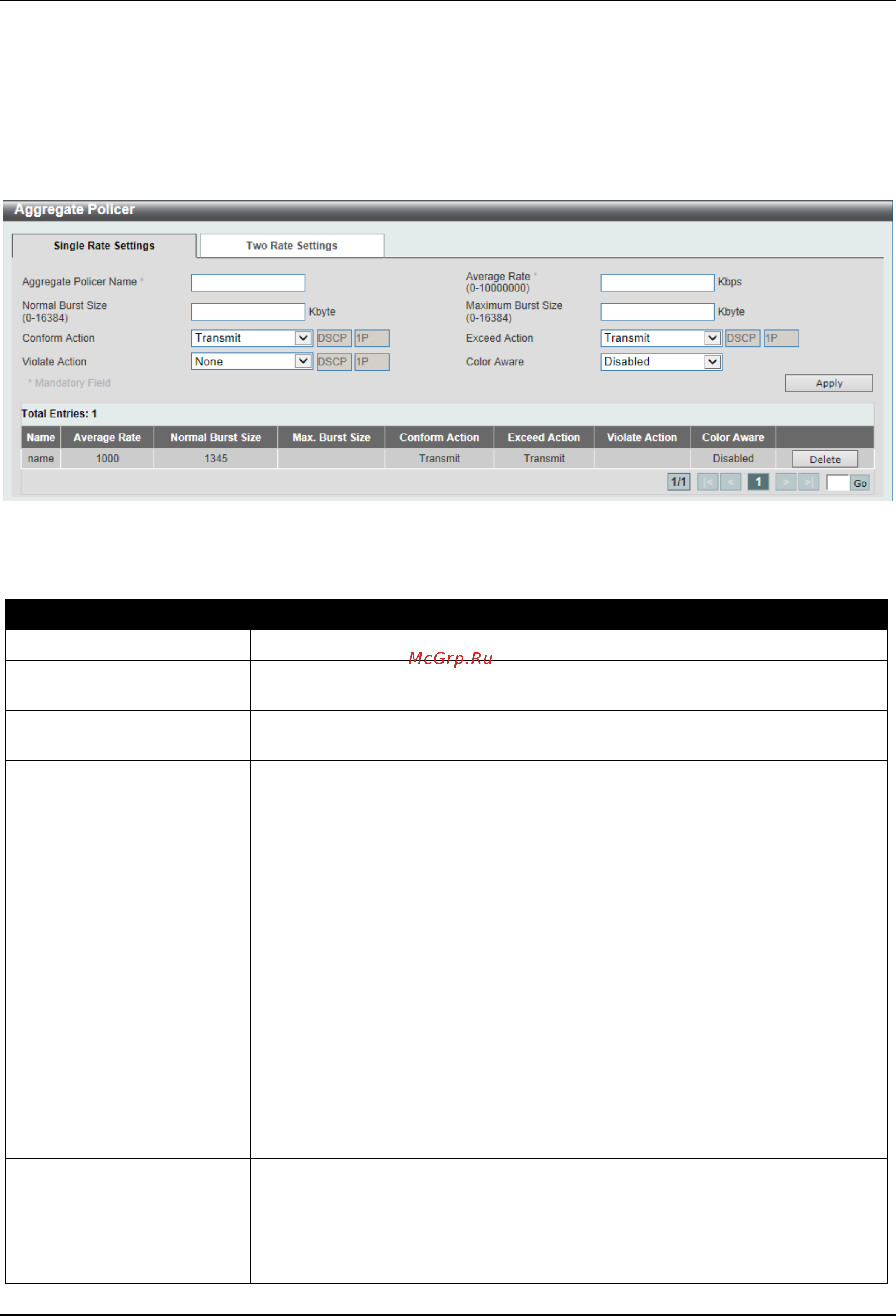

Figure 7-15 Aggregate Policer (Single Rate Setting) Window

The fields that can be configured are described below:

Parameter Description

Aggregate Policer Name

Enter the aggregate policer name here.

Average Rate

Enter the average rate value here. This value must be between 0 and 10000000

kbps.

Normal Burst Size

Enter the normal burst size value here. This value must be between 0 and 16384

Kbytes.

Maximum Burst Size

Enter the maximum burst size value here. This value must be between 0 and

16384 Kbytes.

Confirm Action

Select the confirm action here. The confirm action specifies the action to take on

green color packets. If the confirm action is not specified, the default action is to

Transmit. Options to choose from are Drop, Set-DSCP-Transmit, Set-1P-

Transmit, Transmit, and Set-DSCP-1P.

• When selecting the Drop option, the packet will be dropped.

• When selecting the Set-DSCP-Transmit option, enter the IP DSCP value in

the space provided. This value sets the IP differentiated services code point

(DSCP) value and transmits the packet with the new IP DSCP value.

• When selecting the Set-1P-Transmit option, enter the 1P transmit value in

the space provided. This value sets the 802.1p value and transmits the

packet with the new value.

• When selecting the Transmit option, packets will be transmitted unaltered.

• When selecting the Set-DSCP-1P option, enter the IP DSCP and 1P transmit

values in the spaces provided.

Exceed Action

Select the exceed action here. The exceed action specifies the action to take on

packets that exceed the rate limit. For a two rate policer, if the exceed action is

not specified, the default action is Drop. Options to choose from are Drop, Set-

DSCP-Transmit, Set-1P-Transmit, Transmit, and Set-DSCP-1P.

• When selecting the Drop option, the packet will be dropped.
