The fields that can be configured in IGMP Snooping Filter Table are described below:

Parameter Description

Unit

Select the Switch unit ID that will be used here.

From Port - To Port

Select the Switch port range that will be used here.

Click the Find button to locate a specific entry based on the information entered.

Click the Show All button to display all the entries.

Click the Show Detail button to view more detailed information associated with the entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Please Select button, the following page will appear.

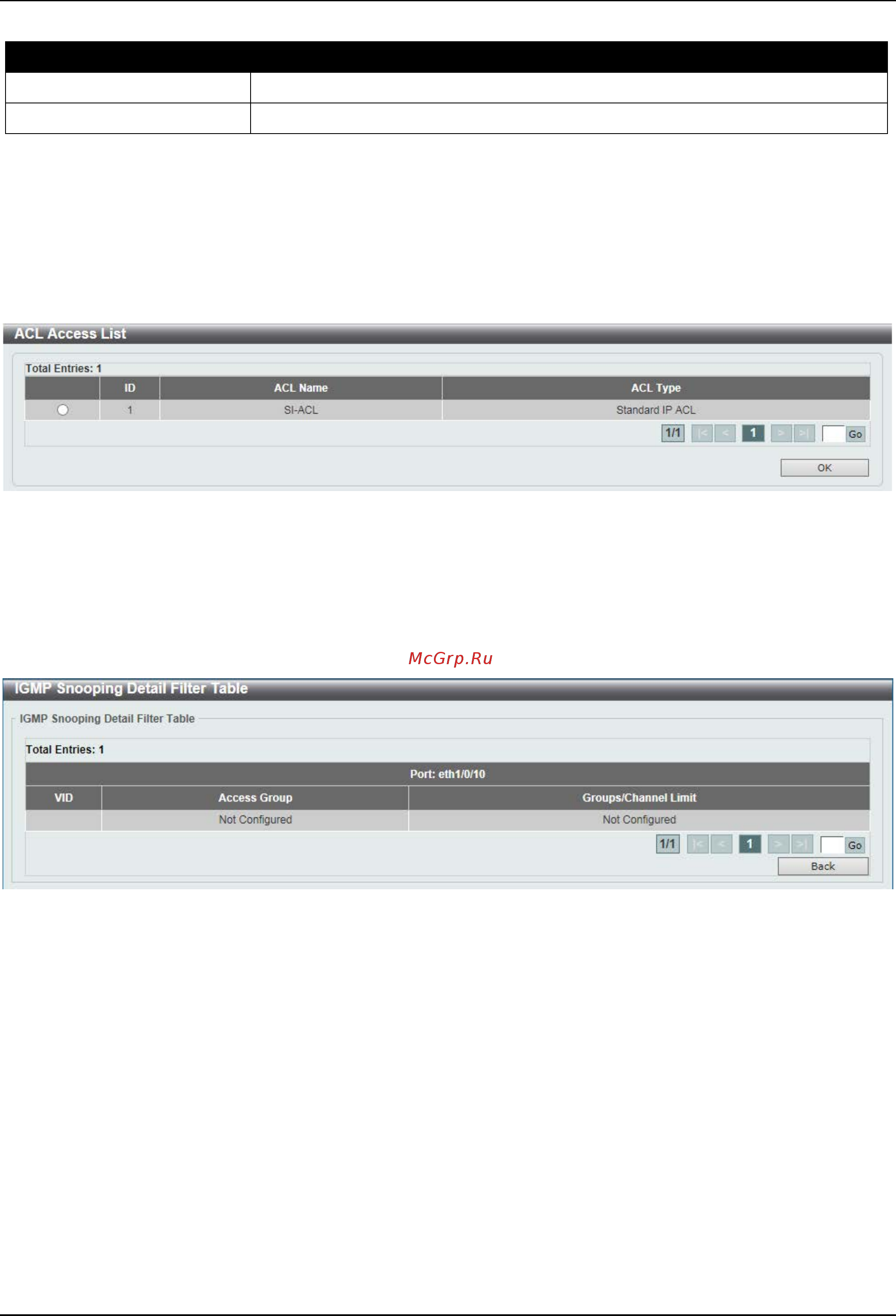

Figure 5-75 IGMP Snooping Filter Settings (Please Select) Window

Select the ACL and click the OK button to use the selected access list.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Show Detail button, the following page will appear.

Figure 5-76 IGMP Snooping Filter Settings (Show Detail) Window

Click the Back button to return to the previous window.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

IGMP Snooping Mrouter Settings

This window is used to display and configure the IGMP Snooping Mrouter settings.
