DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
265
Parameter Description
BFD State
Select to enable or disable the BFD state on the IPv6 RIP interface here.
Passive Interface
Select to enable or disable the passive interface feature here. If this option is
disabled, the router will not send RIPng packets out through the interface.
However, RIPng packets from other routers received on the interface will continue
to be processed.
Click the Apply button to accept the changes made.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
RIPng Database
This window is used to display the RIPng routing database.
To view the following window, click L3 Features > RIPng > RIPng Database, as shown below:

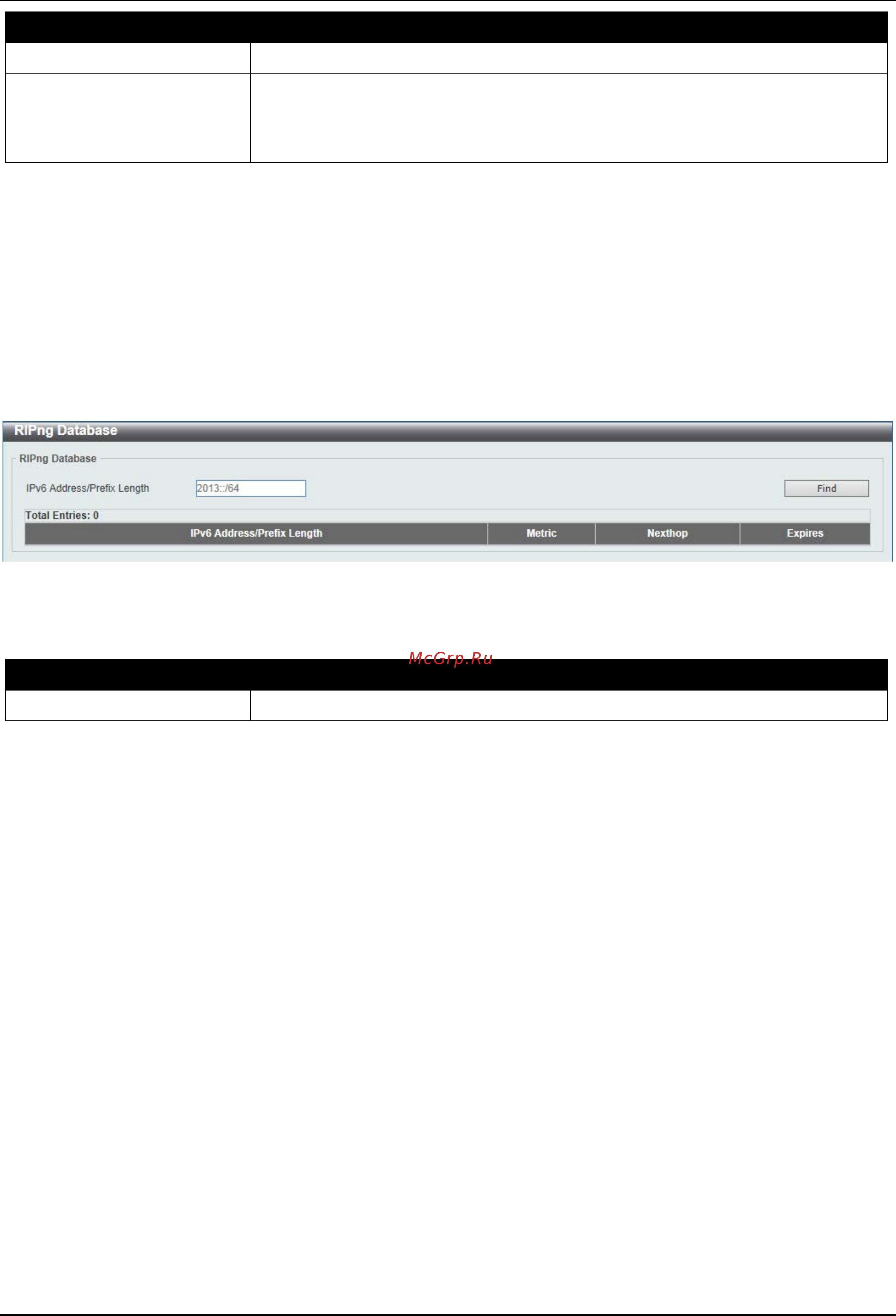

Figure 6-47 RIPng Database Window
The fields that can be configured are described below:
Parameter Description
IPv6 Address/Prefix Length
Enter the IPv6 address that will be used for these results here.
Click the Find button to locate a specific entry based on the information entered.
OSPF
OSPFv2
OSPFv2 Process Settings
This window is used to display and configure the OSPFv2 process settings.
