DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
308
The fields that can be configured in MLD Proxy Downstream Settings are described below:
Parameter Description
Interface VLAN
Enter the VLAN interface ID here. The range is from 1 to 4094.
Downstream
Select to enable or disable the interface as the downstream MLD proxy here. This
feature only takes effect when the interface has an IPv6 address configured.
Multiple downstream interfaces can be configured on an MLD proxy device.
Click the Apply button to accept the changes made.
The fields that can be configured in MLD Proxy Designated Forwarding Settings are described below:
Parameter Description
Interface VLAN
Enter the VLAN interface ID here. The range is from 1 to 4094.
Designated Forwarding
Select to enable or disable designated forwarding on a non-querier MLD proxy
downstream interface here. To avoid local loops and redundant traffic for links
that are considered downstream links by multiple MLD-based forwarders, MLD
proxies use the MLD querier election to elect a single forwarder on a LAN.
Administrators can use this command to make a non-querier device a forwarder.
This feature does not take effect if the interface is not set as the downstream
interface or set as upstream interface.
Click the Apply button to accept the changes made.
MLD Proxy Group Table
This window is used to find and display MLD proxy group information.
To view the following window, click L3 Features > IP Multicast Routing Protocol > MLD Proxy > MLD Proxy
Group Table, as shown below:

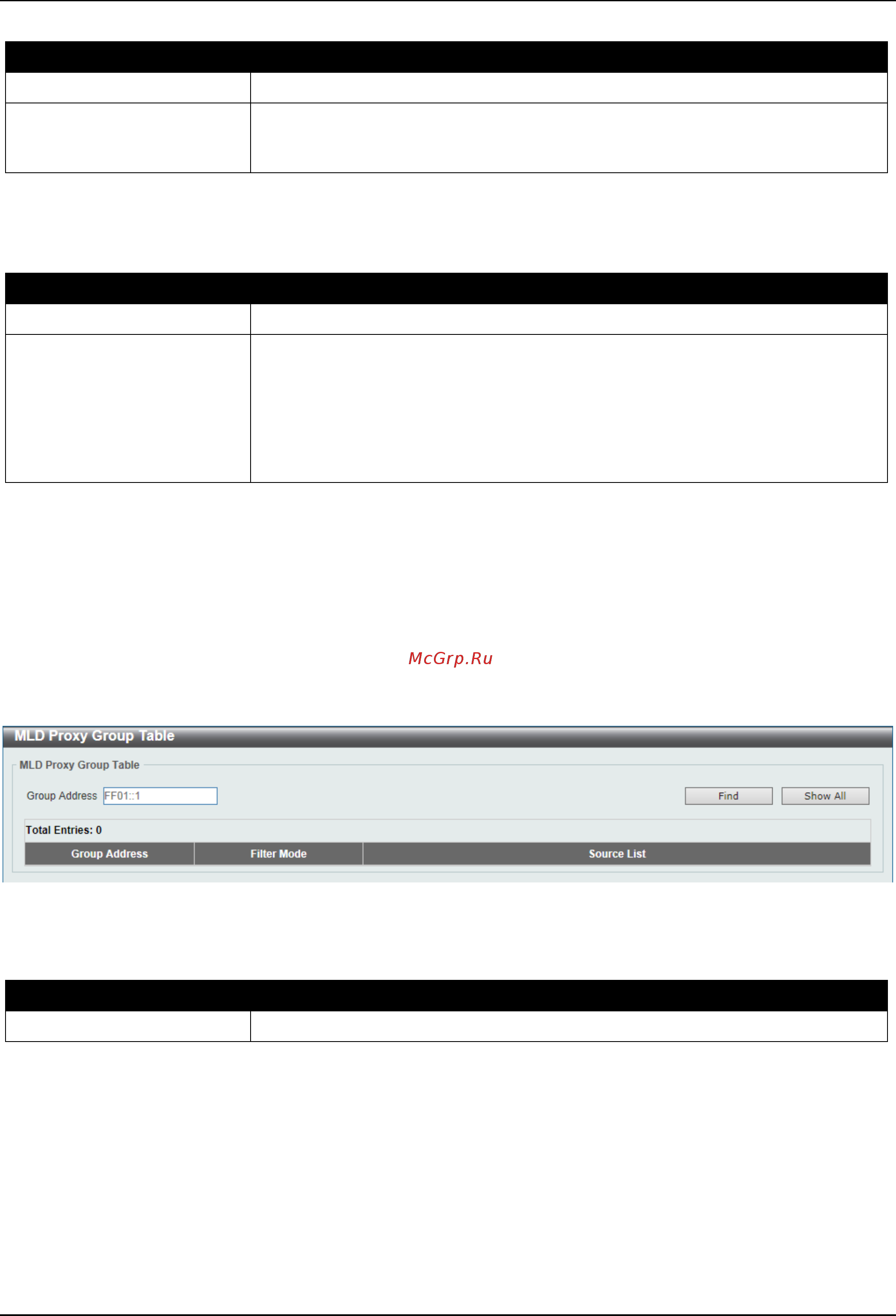

Figure 6-101 MLD Proxy Group Table Window
The fields that can be configured are described below:
Parameter Description
Group Address
Enter the IPv6 group multicast address here.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the entries.
MLD Proxy Forwarding Table
This window is used to find and display MLD proxy forwarding information.
