DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

627

The fields that can be configured are described below:

Parameter Description

Type

Select the type of information to display here. Options to choose from are Port

and VLAN.

Interface VLAN

Enter the VLAN ID that will be used in this display here.

Click the Find button to display entries in the table based on the information selected/entered.

Click the Refresh button to refresh the counter information displayed in the table.

Click the Clear button clear the counter information displayed in the table based on the information selected/entered.

Click the Clear All button clear all the counter information displayed in the table.

Mirror Settings

This window is used to display and configure the mirror feature’s settings. The Switch allows users to copy frames

transmitted and received on a port and redirect the copies to another port. Attach a monitoring device to the mirroring

port, such as a sniffer or an RMON probe, to view details about the packets passing through the first port. This is

useful for network monitoring and troubleshooting purposes.

To view the following window, click Monitoring > Mirror Settings, as shown below:

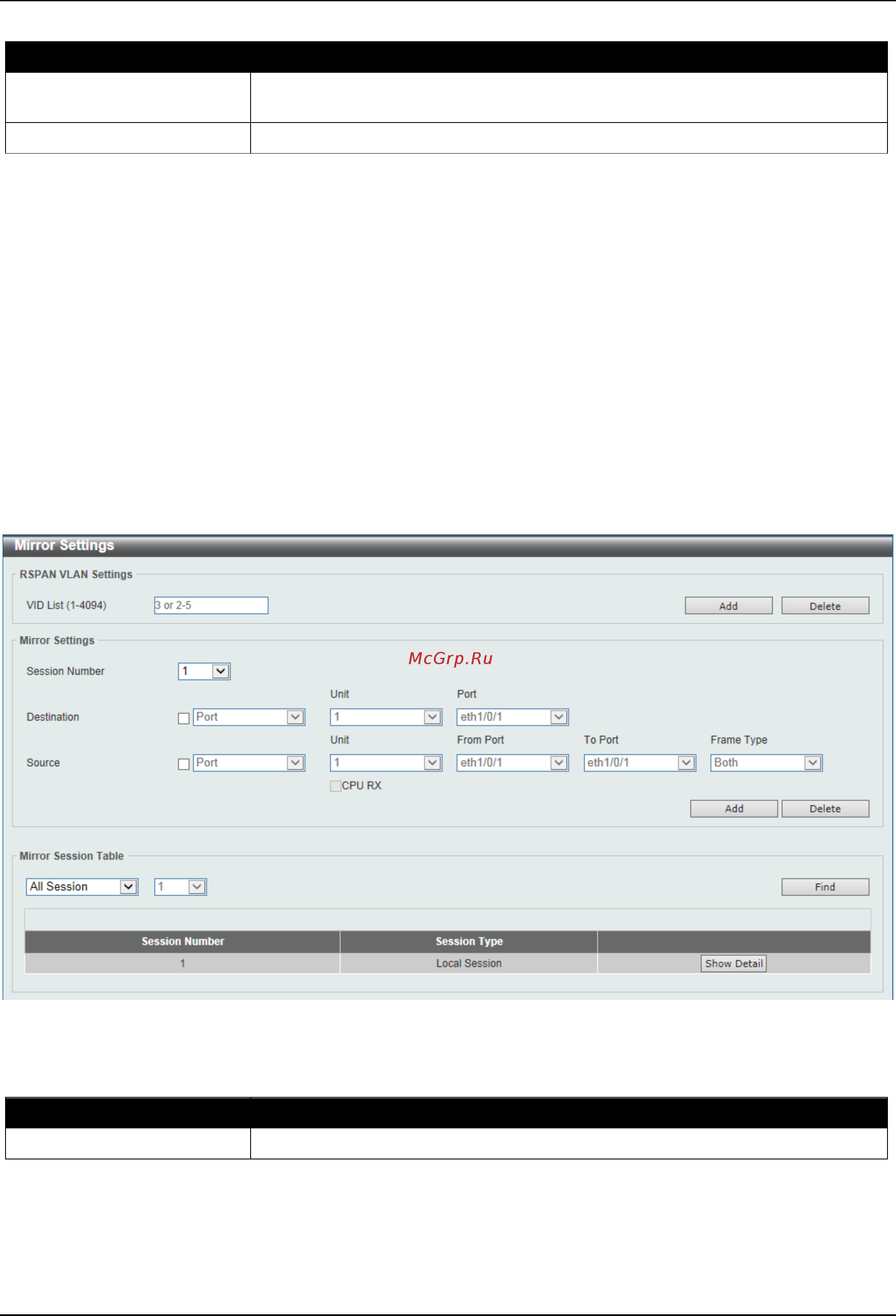

Figure 13-16 Mirror Settings Window

The fields that can be configured for RSPAN VLAN Settings are described below:

Parameter Description

VID List

Enter the VLAN list ID(s) that will be associated with this configuration here.

Click the Add button to add the VLAN(s) to the configuration.

Click the Delete button to delete the VLAN(s) from the configuration.
