DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
641
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade from RCP, as
shown below:

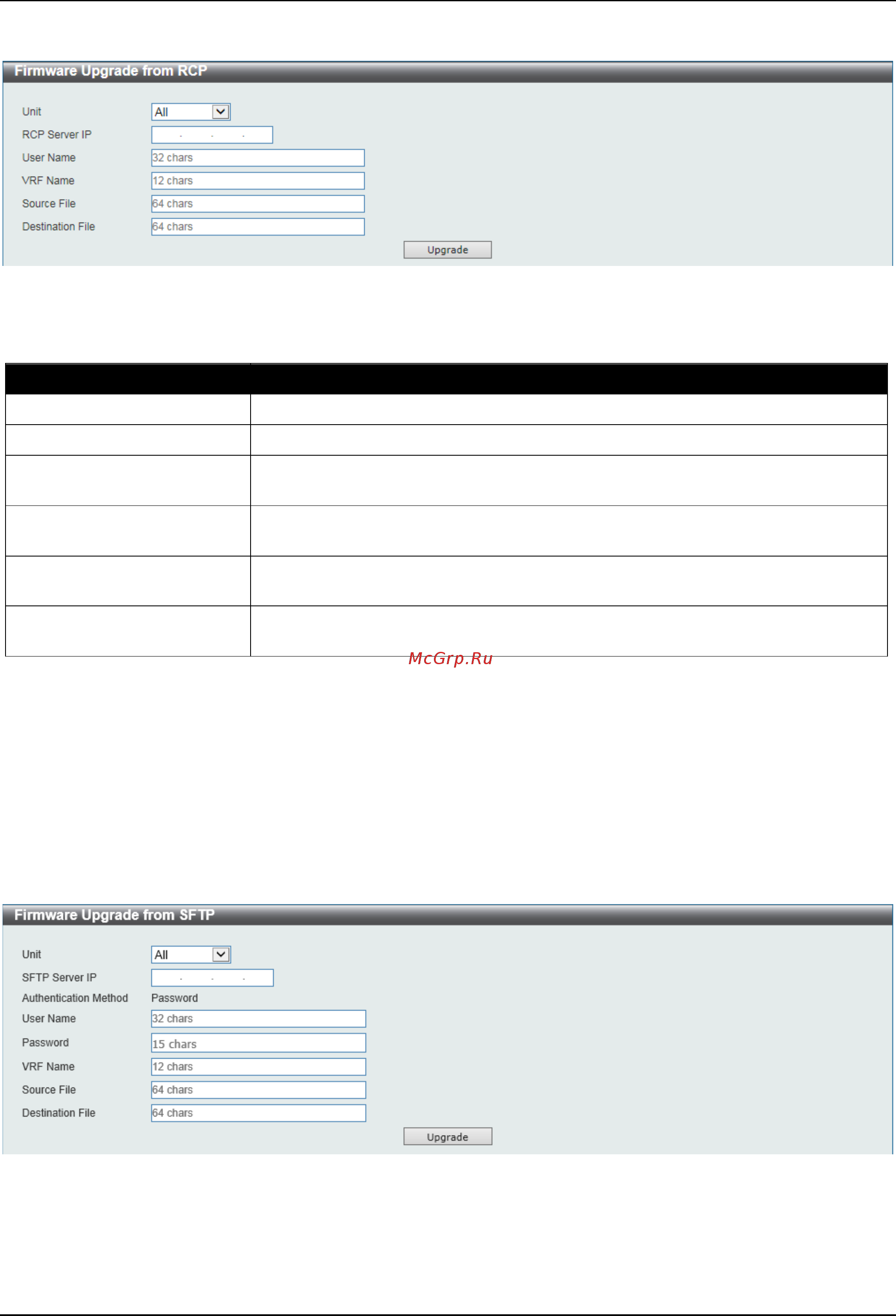

Figure 15-5 Firmware Upgrade from RCP Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
RCP Server IP
Enter the RCP server IP address here.
User Name
Enter the user name used for the RCP connection here. This name can be up to
32 characters long.
VRF Name
Enter the name of the VRF instance here. This name can be up to 12 characters
long.
Source File
Enter the source filename and path of the firmware file located on the RCP server
here. This field can be up to 64 characters long.
Destination File
Enter the destination path and location where the new firmware should be stored
on the Switch. This field can be up to 64 characters long.
Click the Upgrade button to initiate the firmware upgrade.
Firmware Upgrade from SFTP
This window is used to initiate a firmware upgrade from an SFTP server.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade from SFTP, as
shown below:
Figure 15-6 Firmware Upgrade from SFTP Window
