DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
348
To view the following window, click L3 Features > IP Multicast Routing Protocol > IPMC > IP Multicast Protocol
Statistics, as shown below:

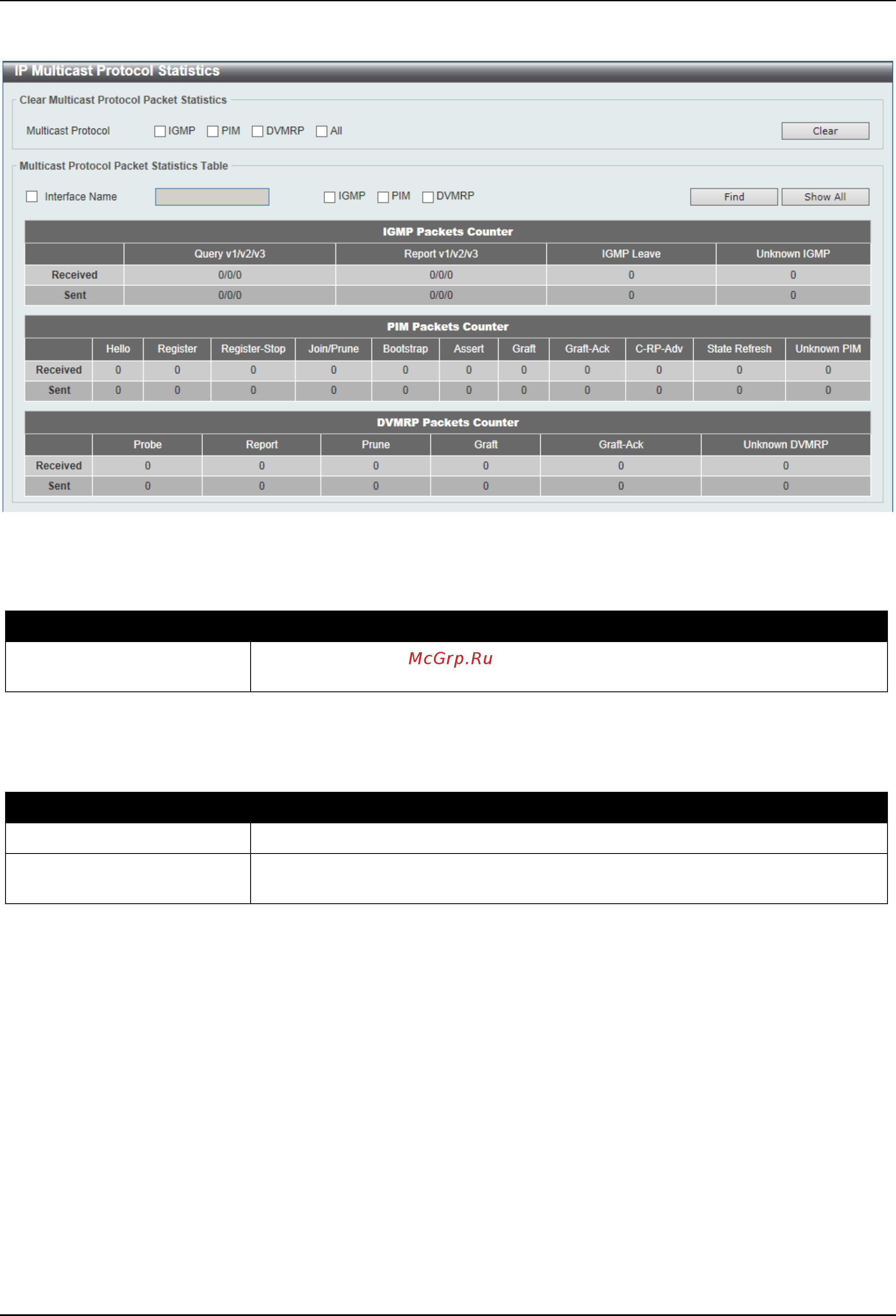

Figure 6-153 IP Multicast Protocol Statistics Window
The fields that can be configured in Clear Multicast Protocol Packet Statistics are described below:
Parameter Description
Multicast Protocol
Select the multicast protocol that will be cleared here. Options to choose from are
IGMP, PIM, DVMRP, and All.
Click the Clear button to clear the entries based on the information specified.
The fields that can be configured in Multicast Protocol Packet Statistics Table are described below:
Parameter Description
Interface Name
Select and enter the interface name that will be used in the display here.
Multicast Protocol
Select the multicast protocol that will be used in the display here. Options to
choose from are IGMP, PIM, and DVMRP.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the entries.
Control Packet CPU Filtering
This window is used to display and configure the IPMC control packet CPU filtering settings.
