DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
488

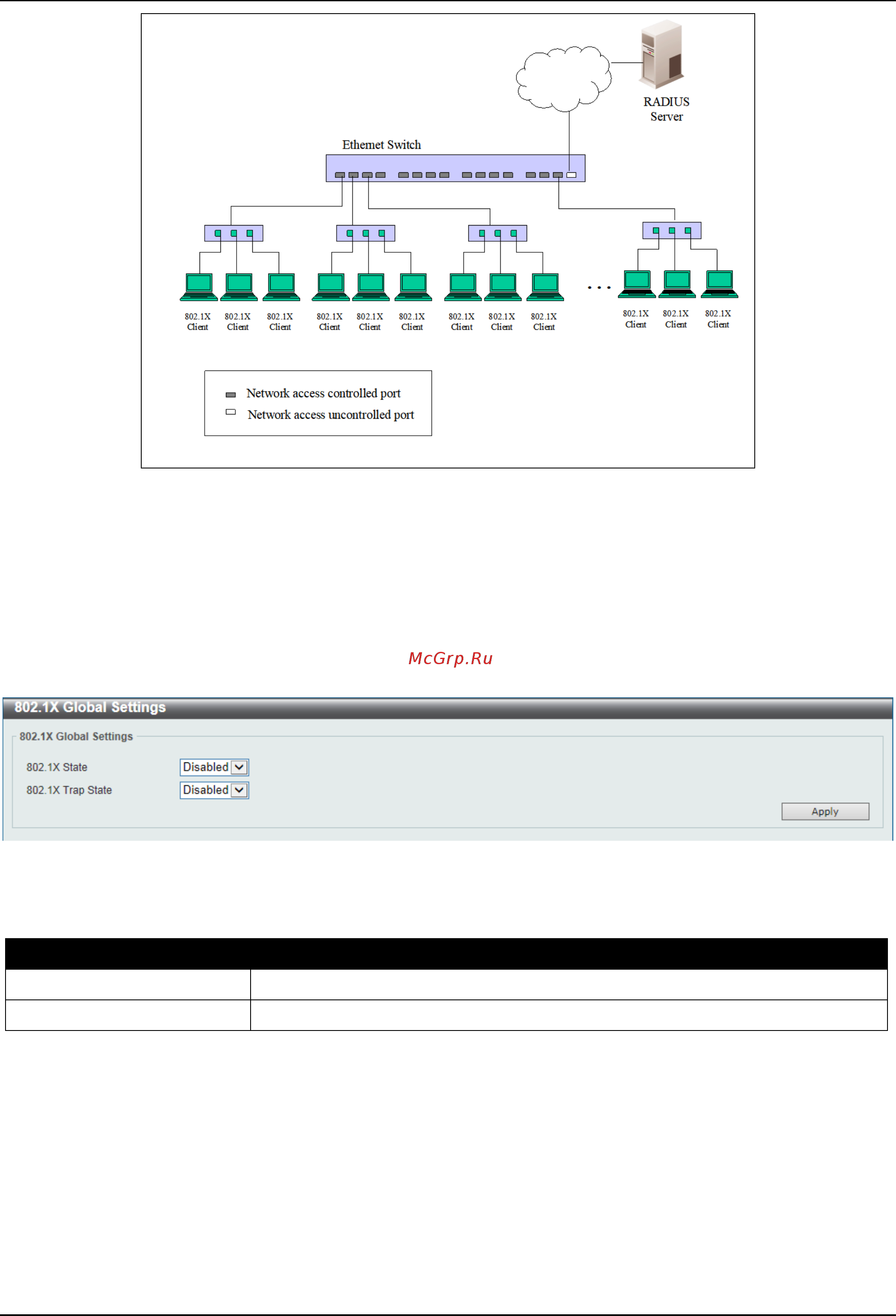

Figure 9-11 Example of Typical Host-based Configuration
802.1X Global Settings
This window is used to display and configure the global 802.1X settings.
To view the following window, click Security > 802.1X > 802.1X Global Settings, as shown below:
Figure 9-12 802.1X Global Settings Window
The fields that can be configured are described below:
Parameter Description
802.1X State
Select to enable or disable the global 802.1X state here.
802.1X Trap State
Select to enable or disable the 802.1X trap state here.
Click the Apply button to accept the changes made.
802.1X Port Settings
This window is used to display and configure the 802.1X port settings.
