DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

573

Parameter Description

MA Name

Enter the MA name here. The name can be up to 22 characters long.

Domain Name

Enter the MD name here. The name can be up to 22 characters long.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear button to clear the entries based on the information specified.

Click the Clear All button to clear the information associated with all entries.

Click the Show Detail button to view more detailed information about the link-trace entry.

After clicking the Show Detail button, the following page will appear.

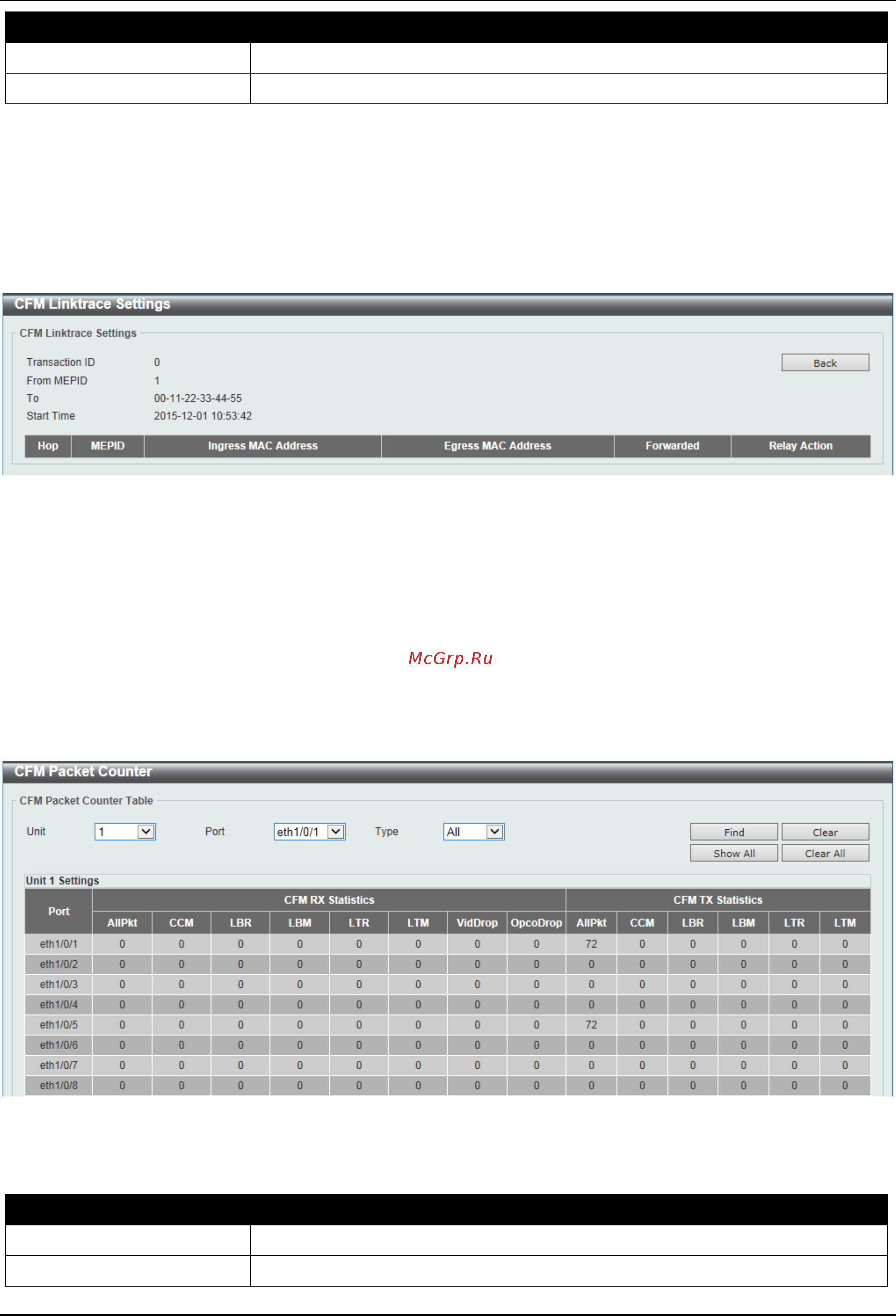

Figure 10-16 CFM Linktrace Settings (Show Detail) Window

Click the Back button to return to the previous window.

CFM Packet Counter

This window is used to find and display the CFM packet counter information.

To view the following window, click OAM > CFM > CFM Packet Counter, as shown below:

Figure 10-17 CFM Packet Counter Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit ID that will be used here.

Port

Select the Switch port that will be used here.
