To view the following window, click L3 Features > OSPF > OSPFv2 > OSPFv2 BFD Settings, as shown below:

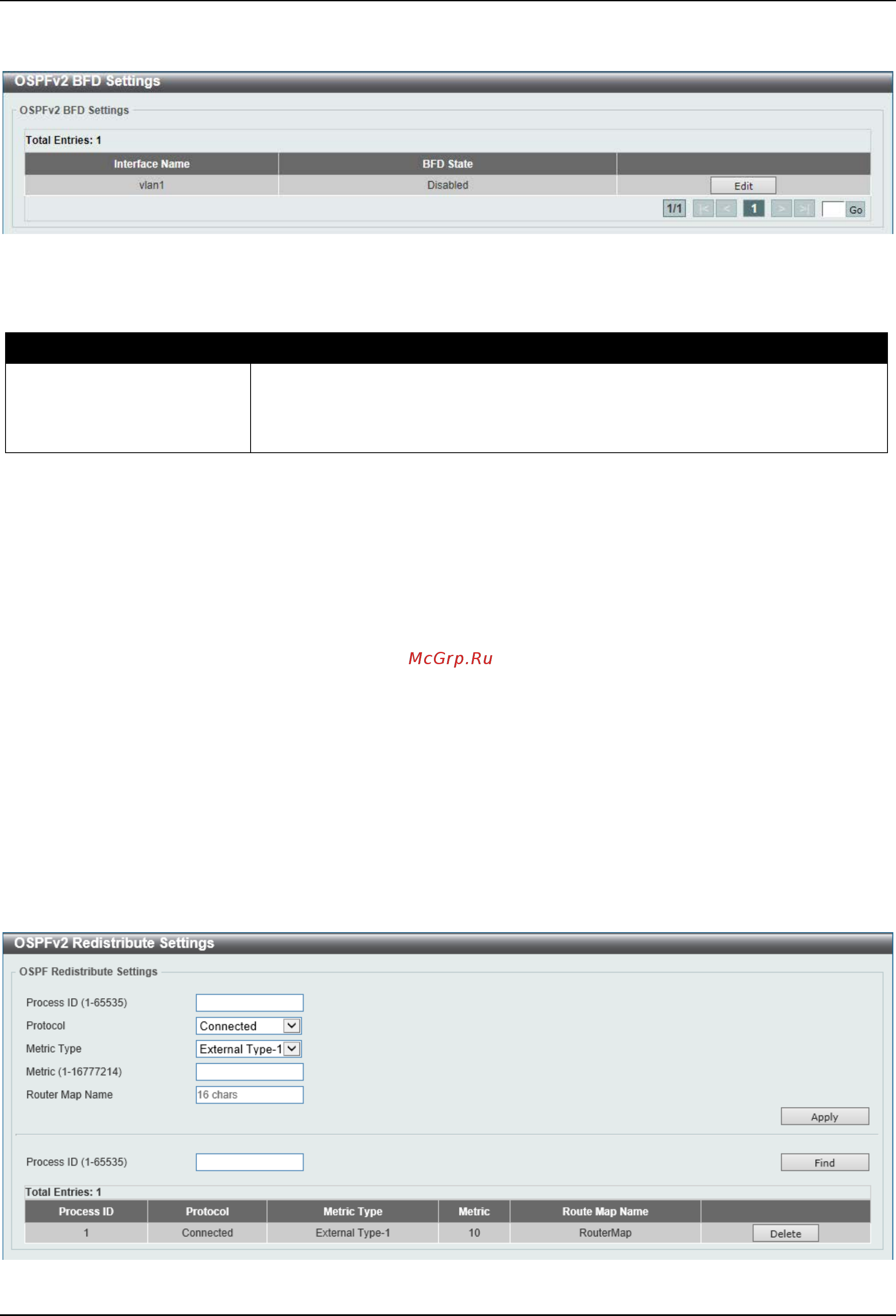

Figure 6-59 OSPFv2 BFD Settings Window

The fields that can be configured are described below:

Parameter Description

BFD State

After clicking the Edit button, select to enable or disable the BFD feature on the

specified interface. When enabled, the Switch will try to create BFD sessions with

the OSPF neighbors on this interface. If the BFD session goes down, the related

OSPF neighbor adjacency will be removed immediately.

Click the Edit button to re-configure the specific entry.

Click the Apply button to accept the changes made.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

OSPFv2 Redistribute Settings

This window is used to display and configure the OSPFv2 redistribution settings. External routes can be redistributed

to normal areas as Type-5 external routes and redistributed to NSSA stub areas as Type-7 external routes by the

ASBR.

If the redistributed external route is of Type-1, the metric represents the internal metric. If the redistributed external

route is of Type-2, the metric represents the external metric. An internal metric will consider the cost of the route from

itself to the redistributing router plus the advertised cost to reach the destination. An external metric only considers the

advertised metric to reach the destination.

If no metric value is specified by the default metric, routes redistributed from other protocols will get a metric value of

20.

To view the following window, click L3 Features > OSPF > OSPFv2 > OSPFv2 Redistribute Settings, as shown

below:

Figure 6-60 OSPFv2 Redistribute Settings Window
