The fields that can be configured are described below:

Parameter Description

Interface VLAN

Enter the VLAN interface ID here. The range is from 1 to 4094.

Group

Enter the group IPv6 address here.

Click the Find button to locate a specific entry based on the information entered.

Click the Show All button to display all the entries.

MLD SSM Mapping Settings

This window is used to display and configure the MLD Source Specific Multicast (SSM) mapping settings.

To view the following window, click L3 Features > IP Multicast Routing Protocol > MLD > MLD SSM Mapping

Settings, as shown below:

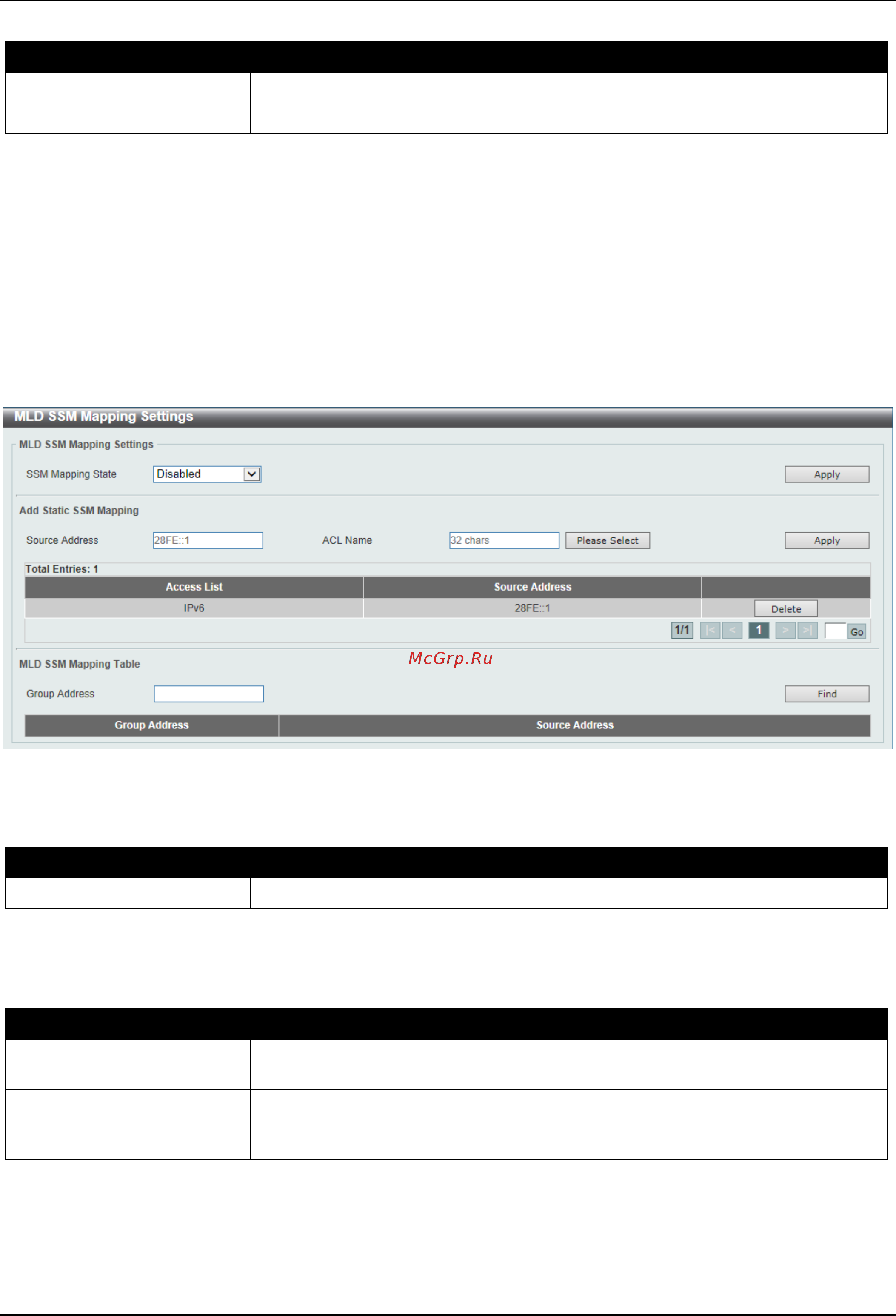

Figure 6-95 MLD SSM Mapping Settings Window

The fields that can be configured in MLD SSM Mapping Settings are described below:

Parameter Description

SSM Mapping State

Select to enable or disable the MLD SSM mapping feature here.

Click the Apply button to accept the changes made.

The fields that can be configured in Add Static SSM Mapping are described below:

Parameter Description

Source Address

Enter the source address that will be associated with the MLD membership for a

group here. This is identified by access list.

ACL Name

Enter the name of the standard IPv6 access list that will be used here. This name

can be up to 32 characters long. Click the Please Select button to select a pre-

configured access list to use here.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
