Parameter Description

Name

address here.

Select the Default SSM Group option to use the default SSM group address

range. The default SSM group address range is FF3x::/32.

Click the Add button to add a new entry based on the information entered.

Click the Delete button to delete an entry based on the information entered.

After clicking the Show List button, the following page will appear.

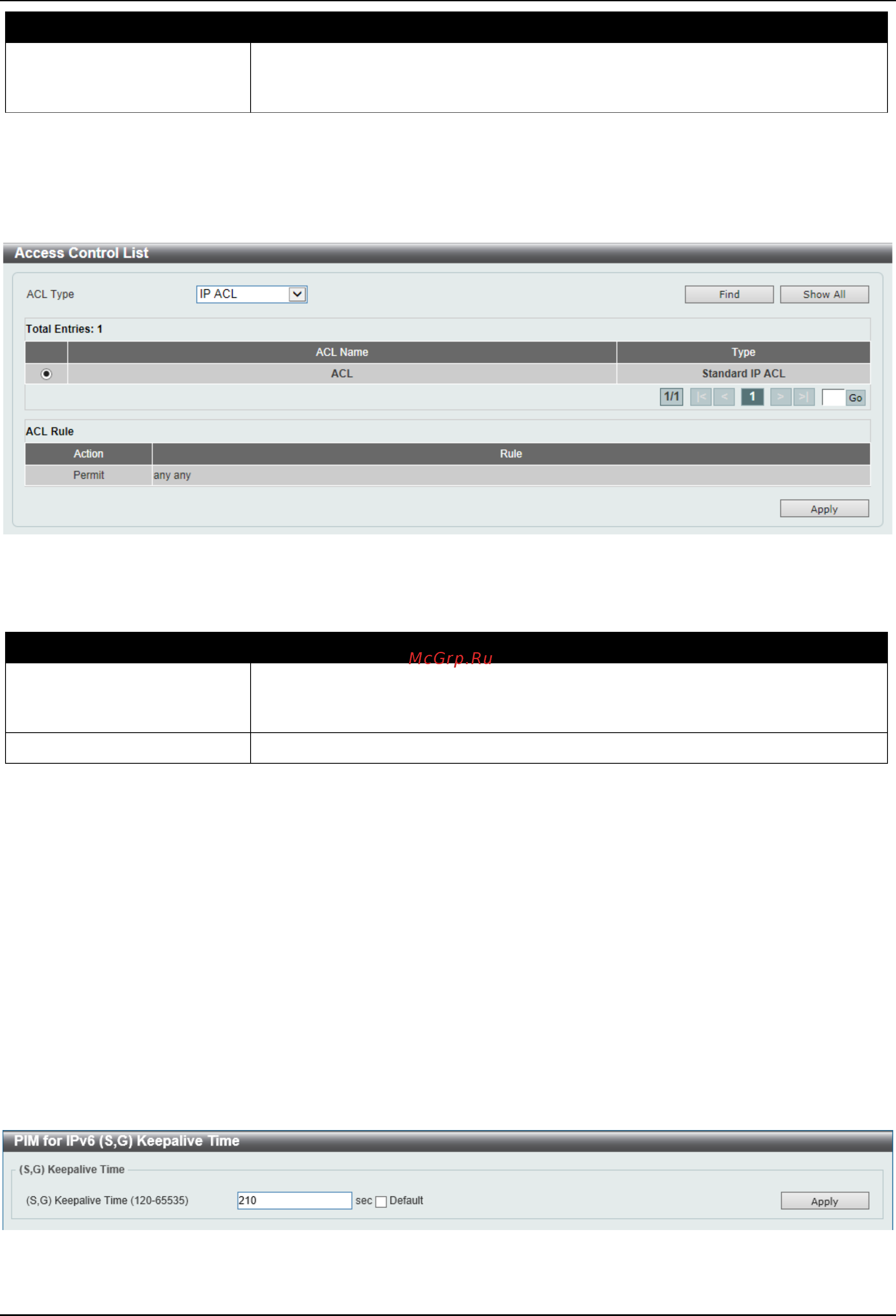

Figure 6-135 PIM for IPv6 SSM Settings (Show List) Window

The fields that can be configured are described below:

Parameter Description

ACL Type

Select the ACL type that will be used to display the type of existing access lists in

the table here. Options to choose from are IP ACL, Expert IP ACL, IPv6 ACL,

Expert IPv6 ACL, MAC ACL, and Expert ACL.

ACL List

Select the radio button of the access list in the table that will be used here.

Click the Find button to display a list of access lists based on the selection made.

Click the Show All button to display all configured access lists.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Click the Apply button to use the selected access list.

PIM for IPv6 (S,G) Keepalive Time

This window is used to display and configure the IPv6 PIM (S,G) keep-alive time settings. This feature is used to

configure the keep-alive timer, which is the period during which the PIM router will maintain the (S, G) state in the

absence of explicit (S, G) local membership or (S, G) join messages received to maintain it.

To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for

IPv6 (S,G) Keepalive Time, as shown below:

Figure 6-136 PIM for IPv6 (S,G) Keepalive Time Window
