D-Link DGS-3630-28SC [681/742] Dlms settings

DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

669

To view the following window, click Tools > Reset, as shown below:

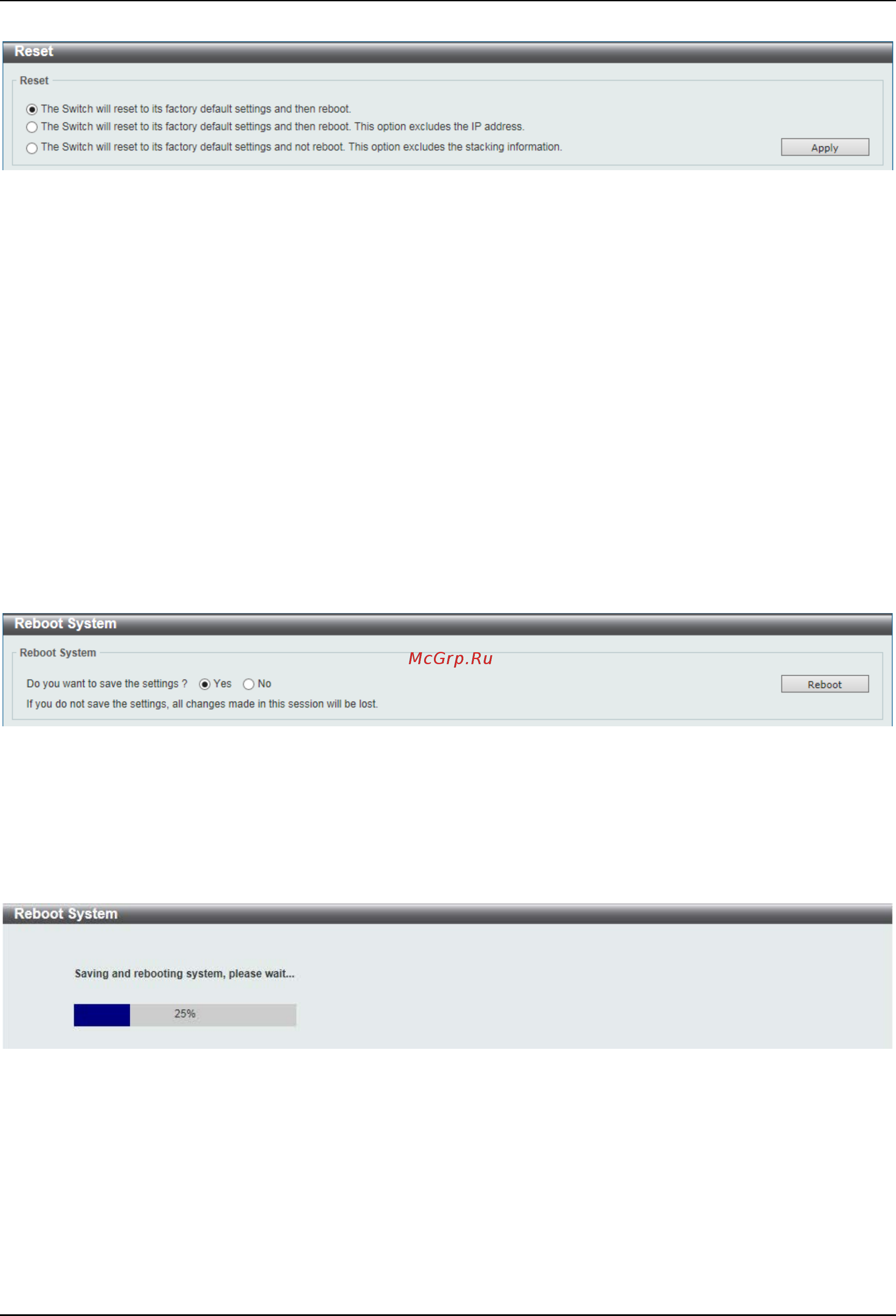

Figure 15-41 Reset Window

Select one of the following options:

• The Switch will reset to its factory default settings and then reboot.

• The Switch will reset to its factory default settings and then reboot. This option excludes the IP address.

• The Switch will reset to its factory default settings and not reboot. This option excludes the stacking information.

Click the Apply button to initiate the reset.

Reboot System

This window is used to reboot the Switch and alternatively save the configuration before doing so.

To view the following window, click Tools > Reboot System, as shown below:

Figure 15-42 Reboot System Window

When rebooting the Switch, any configuration changes that was made during this session, will be lost unless the Yes

option is selected when asked to save the settings.

Click the Reboot button to alternatively save the settings and reboot the Switch.

Figure 15-43 Reboot System (Rebooting) Window

DLMS Settings

This window is used to display and configure the D-Link License Management System (DLMS) settings.

The license specifies the feature options that are enabled on the Switch. License keys are sold in the market. It may

be printed on a physical package or be displayed in an e-mail or a portal.
