DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
307
Click the Show All button to display all the entries.
MLD Proxy
MLD Proxy Settings
This window is used to display and configure the MLD proxy settings. The MLD proxy only works in a simple tree
topology. Make sure there are no other multicast routers except for the proxy devices in the tree topology.
When receiving MLD report packet from a downstream interface, MLD proxy will update its membership database
which is generated by merging all subscriptions on any downstream interface. If the database changes the proxy
device will send unsolicited reports or leaves from the upstream interface. It can also send membership reports from
the upstream interface when queried.
To view the following window, click L3 Features > IP Multicast Routing Protocol > MLD Proxy > MLD Proxy
Settings, as shown below:

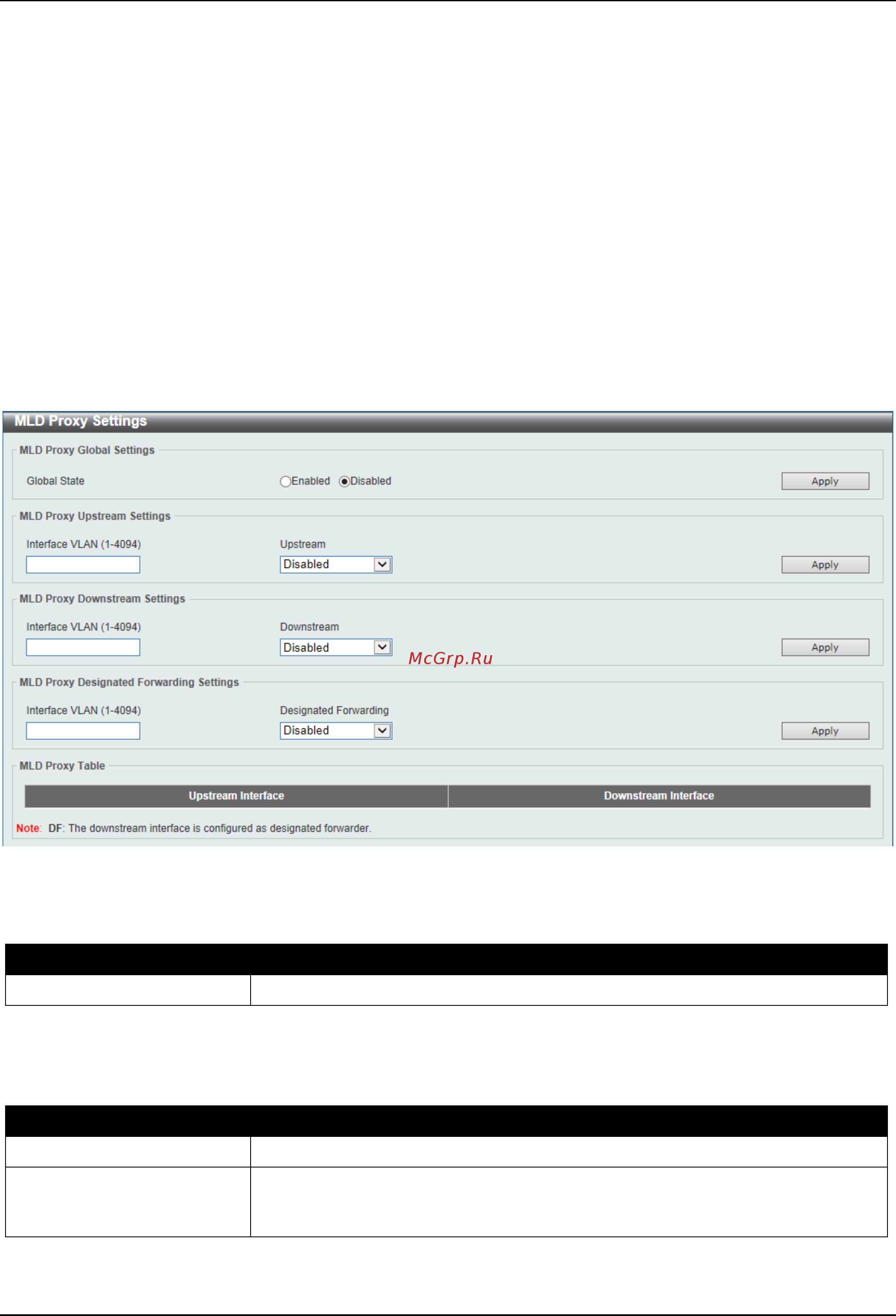

Figure 6-100 MLD Proxy Settings Window
The fields that can be configured in MLD Proxy Global Settings are described below:
Parameter Description
Global State
Select to globally enable or disable the MLD proxy feature here.
Click the Apply button to accept the changes made.
The fields that can be configured in MLD Proxy Upstream Settings are described below:
Parameter Description
Interface VLAN
Enter the VLAN interface ID here. The range is from 1 to 4094.
Upstream
Select to enable or disable the interface as the upstream MLD proxy here. This
feature only takes effect if the interface has an IPv6 address configured. Only one
upstream interface can exist on an MLD proxy device.
Click the Apply button to accept the changes made.
