The fields that can be configured in CFM LM Test are described below:

Parameter Description

MAC Address

Enter the MAC address for the LM test here.

Period

Select the time period here. This specifies the transmitting interval of the LM PDU.

Options to choose from are 100ms, 1sec, and 10sec.

PDU Priority

Select the PDU priority value here. The range is from 0 to 7. This specifies the

802.1p priority to be set in the LMM messages transmitted by the MEP. The

default value is the PDU priority of the MEP.

Click the Apply button to accept the changes made.

The fields that can be configured in Clear CFM LM are described below:

Parameter Description

Type

Select the type of information to clear here. Options to choose from are:

• Result - Specifies to clear the stored LM results.

• Statistics - Specifies to clear the stored statistics of ETH-LM frames (LMM

and LMR).

Click the Clear button to clear the CFM LM statistics information based on the selection made.

Click the Clear All button to clear all the CFM LM statistics information.

Click the Back button to return to the previous window.

CFM Port Settings

This window is used to display and configure the CFM port settings.

To view the following window, click OAM > CFM > CFM Port Settings, as shown below:

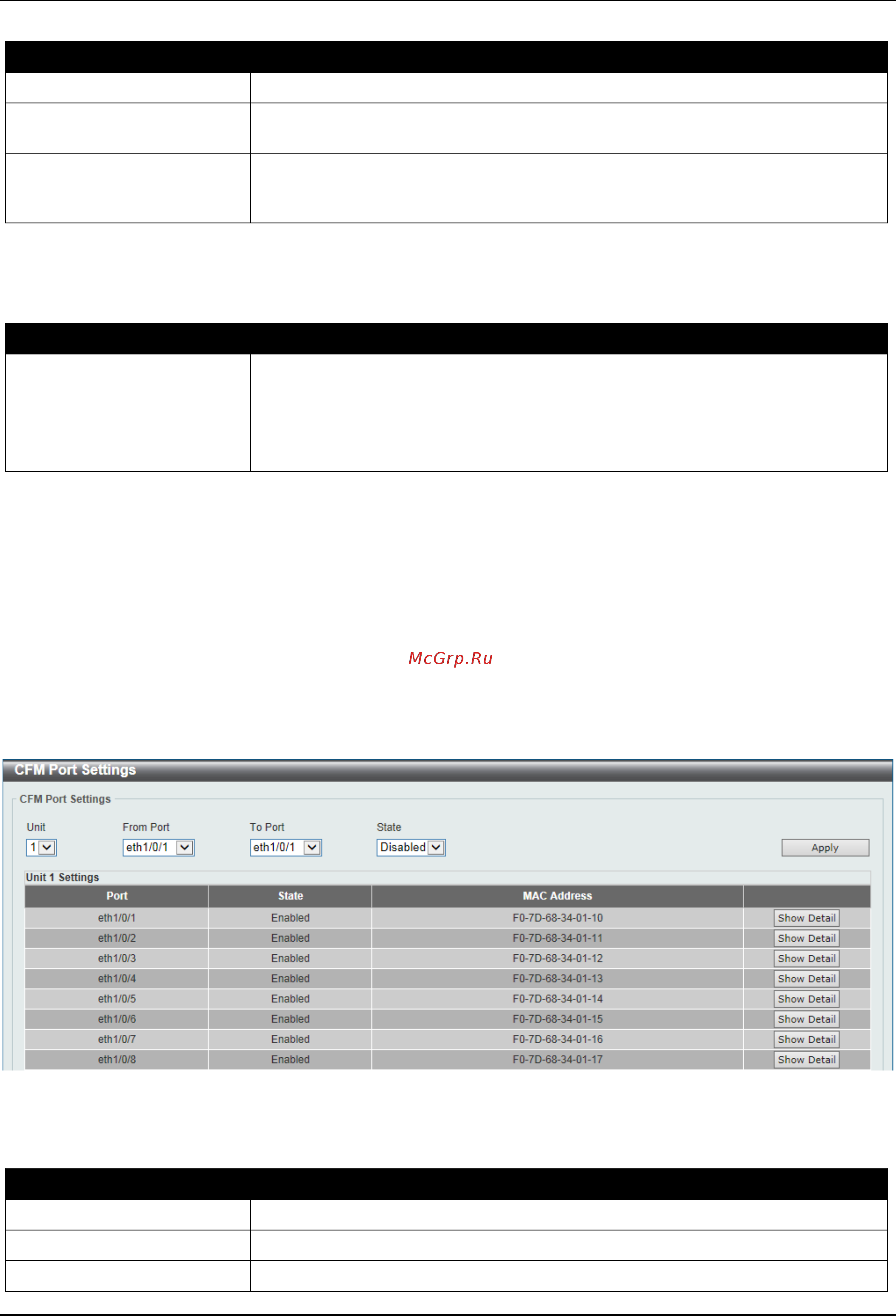

Figure 10-12 CFM Port Settings Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit ID that will be used here.

From Port - To Port

Select the Switch port range that will be used here.

State

Select the enable or disable the CFM feature on the specified port(s) here.
