To view the following window, click L2 Features > VLAN > L2VLAN Interface Description, as shown below:

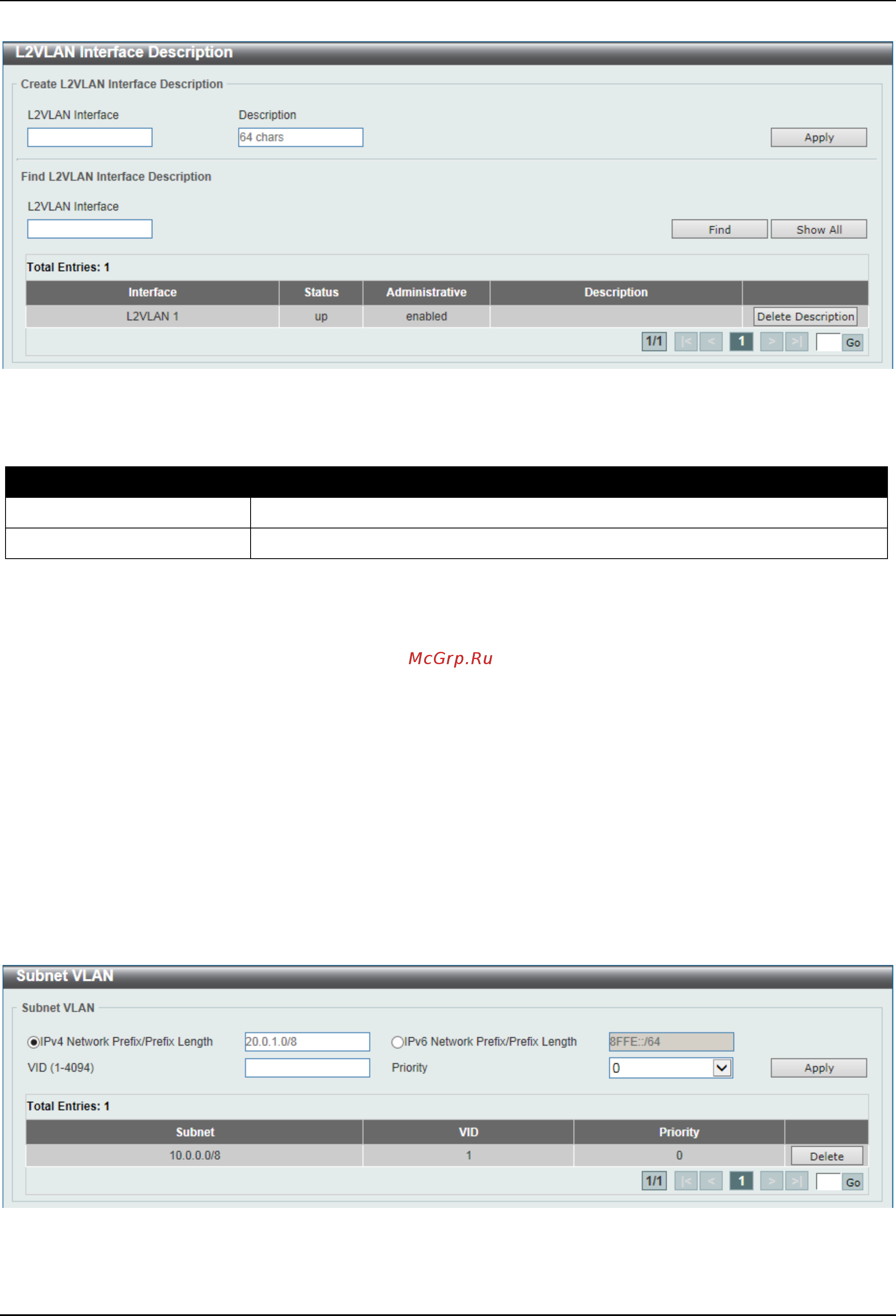

Figure 5-29 L2VLAN Interface Description Window

The fields that can be configured are described below:

Parameter Description

L2VLAN Interface

Enter the ID of the Layer 2 VLAN interface here.

Description

Enter the description for the Layer 2 VLAN interface here.

Click the Apply button to accept the changes made.

Click the Find button to generate the display based on the information entered.

Click the Show All button to display all the available entries.

Click the Delete Description button to remove the description from the specified Layer 2 VLAN.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

Subnet VLAN

This window is used to display and configure the subnet VLAN settings. A subnet VLAN entry is an IP subnet-based

VLAN classification rule. If an untagged or priority-tagged IP packet is received on a port, its source IP address will be

used to match the subnet VLAN entries. If the source IP is in the subnet of an entry, the packet will be classified to the

VLAN defined for this subnet.

To view the following window, click L2 Features > VLAN > Subnet VLAN, as shown below:

Figure 5-30 Subnet VLAN Window
