DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

591

Click the Apply button to accept the changes made.

MPLS LSP Trigger Information

This window is used to display and configure the MPLS Label-Switched Path (LSP) trigger information. The LSP

trigger filter rules are IP access list rules that it is used to control the IP routes that can be used to trigger the

establishment of an LSP.

To view the following window, click MPLS > MPLS LSP Trigger Information, as shown below:

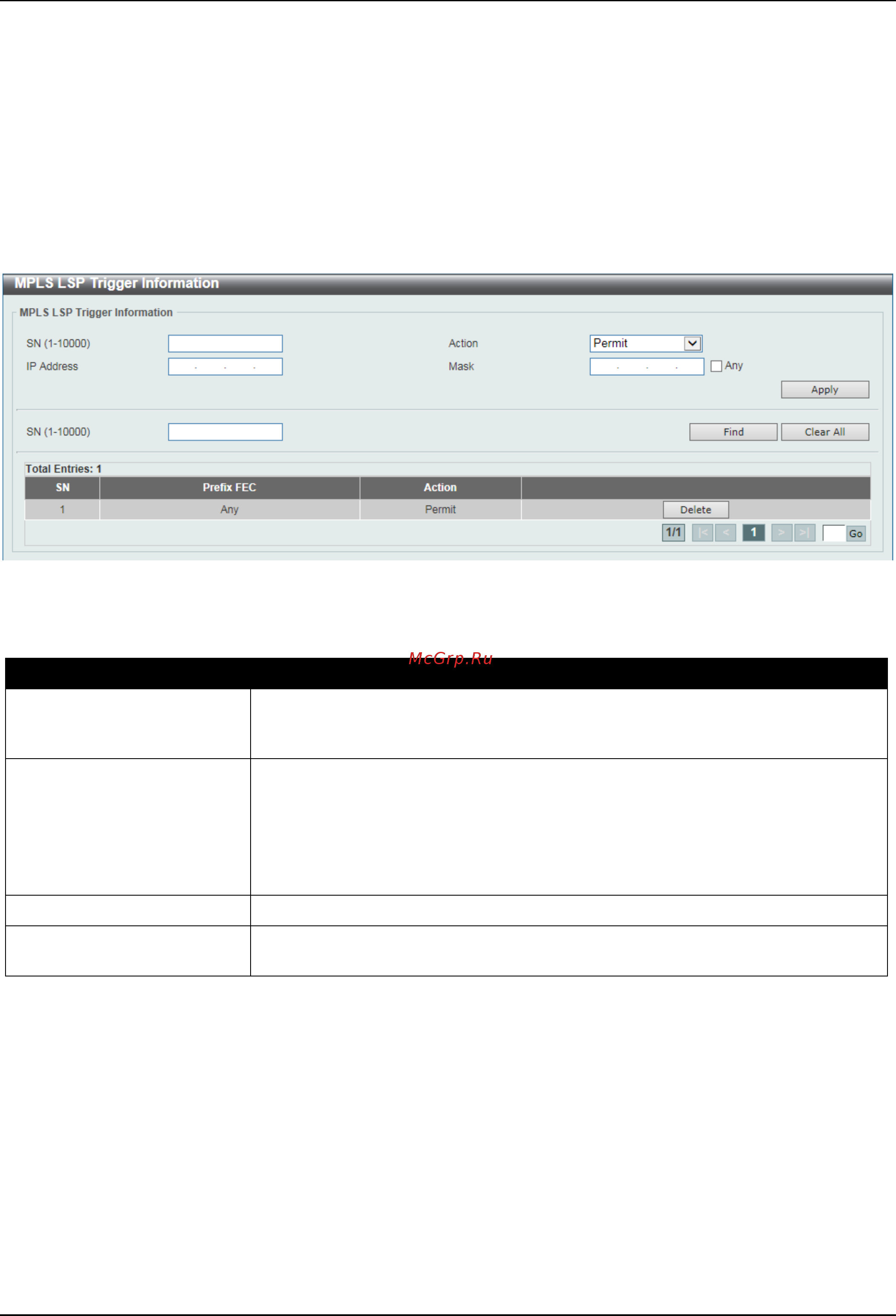

Figure 11-2 MPLS LSP Trigger Information Window

The fields that can be configured are described below:

Parameter Description

Enter the sequence number of the LSP trigger filter rule here. When creating a

new rule, if not specified, the SN begins from 10 and is incremented by 10. The

range is from 1 to 10000.

Action

Select the action that will be taken here. Options to choose from are:

• Permit - Specifies to permit LDP in establishing the LSP to follow the IP

prefix FEC.

• Deny - Specifies no permit LDP in establishing the LSP to follow the IP prefix

FEC.

IP Address

Enter the IPv4 address FEC on which the rule will apply.

Mask

Enter the subnet mask FEC on which the rule will apply. Selecting the Any option

specifies that the rule will apply on any IP prefix FEC.

Click the Apply button to accept the changes made.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear All button to clear all the information related to the SN entered.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

MPLS Forwarding Settings

This window is used to display and configure the MPLS forwarding settings.
