Parameter Description

Type

Select the type of counter information that will be cleared or displayed here.

Options to choose from are All, TX, and RX.

Click the Find button to locate a specific entry based on the information entered.

Click the Clear button to clear the counter information based on the information specified.

Click the Show All button to display all the entries.

Click the Clear All button to clear the counter information associated with all entries.

CFM Counter CCM

This window is used to view and clear the CFM CCM counter information.

To view the following window, click OAM > CFM > CFM Counter CCM, as shown below:

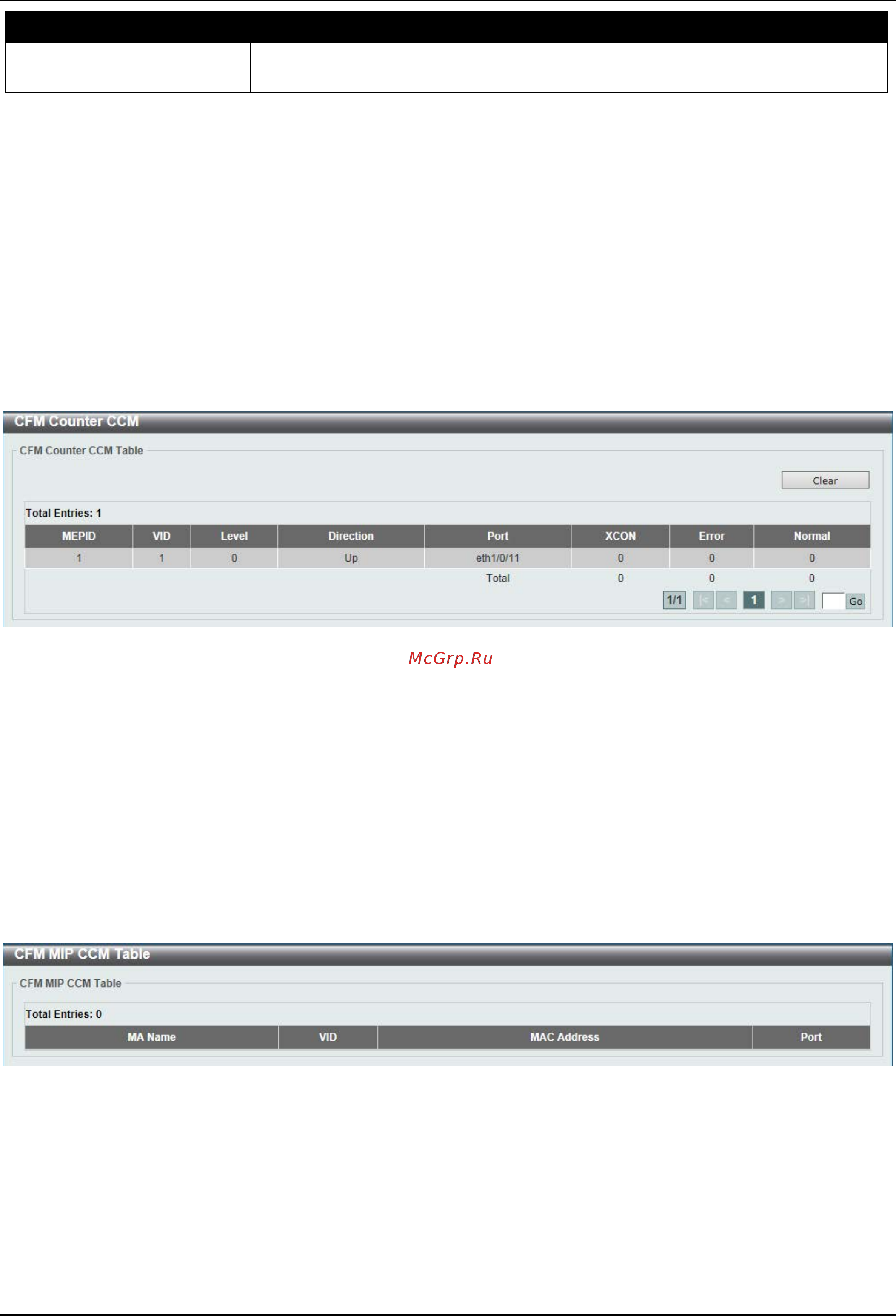

Figure 10-18 CFM Counter CCM Window

Click the Clear button to clear the counter information associated with all entries.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

CFM MIP CCM Table

This window is used to display the MIP CCM database entries.

To view the following window, click OAM > CFM > CFM MIP CCM Table, as shown below:

Figure 10-19 CFM MIP CCM Table Window

CFM MEP Fault Table

This window is used to display the MEPs that have faults.
