After clicking the Edit button, the following page will appear.

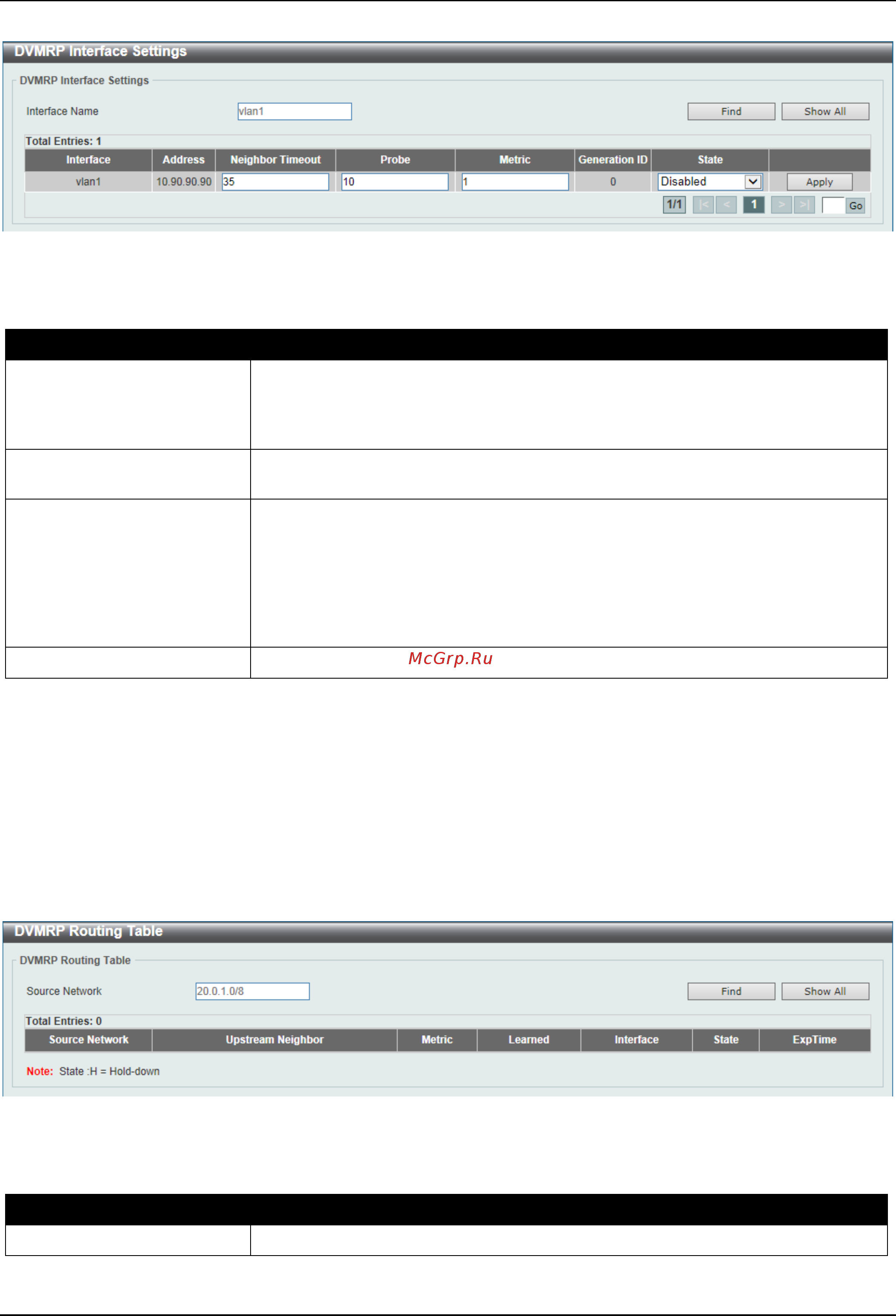

Figure 6-104 DVMRP Interface Settings (Edit) Window

The fields that can be configured in the table are described below:

Parameter Description

Neighbor Timeout

Enter the neighbor lifetime value here. If the router has not received a probe

message from a neighbor after the neighbor timeout interval, the neighbor is

considered to be down. The range is from 1 to 65535 seconds. By default, this

value is 35 seconds.

Probe

Enter the DVMRP probe interval value here. The range is from 1 to 65535

seconds. By default, this value is 10 seconds.

Metric

Enter the metric value here. The range is from 1 to 32. A value of 32 means it is

unreachable. For each source network reported, a route metric is associated with

the route being reported. The metric is the sum of the interface metrics between

the router originating the report and the source network. For DVMRP, the metric

with 32 means it is unreachable. This limits the breadth across the whole DVMRP

network and is necessary to place an upper limit on the convergence time of the

protocol.

State

Select to enable or disable the DVMRP feature on the selected interface.

Click the Apply button to accept the changes made.

DVMRP Routing Table

This window is used to find and display DVMRP routing information.

To view the following window, click L3 Features > IP Multicast Routing Protocol > DVMRP > DVMRP Routing

Table, as shown below:

Figure 6-105 DVMRP Routing Table Window

The fields that can be configured are described below:

Parameter Description

Source Network

Enter the source IPv4 network address and mask length here.

Click the Find button to locate a specific entry based on the information entered.
