DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
188
After clicking the Show Detail button, the following page will be available.

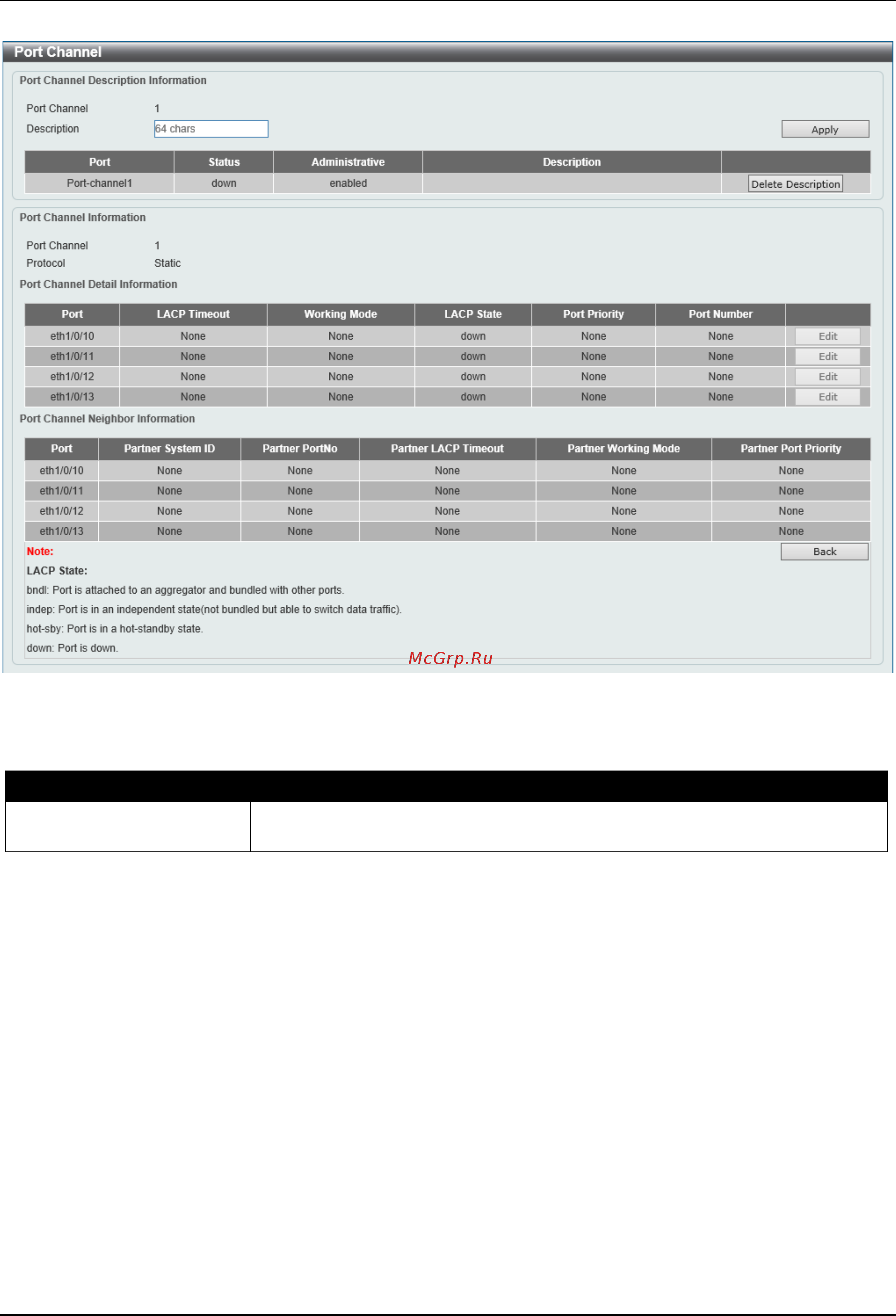

Figure 5-65 Link Aggregation (Channel Detail) Window
The fields that can be configured are described below:
Parameter Description
Description
Enter the description for the port channel here. This string can be up to 64
characters long.
Click the Apply button to accept the changes made.
Click the Delete Description button to delete the description for the port channel.
Click the Edit button to re-configure the specific entry.
Click the Back button to return to the previous page.
Flex Links
This window is used to display and configure the Flex Link feature. Flex Links belong to a pair of Layer 2 interfaces
where one interface is configured to act as a backup to the other. Flex Links provide link-level redundancy as an
alternative to STP and LBD.
