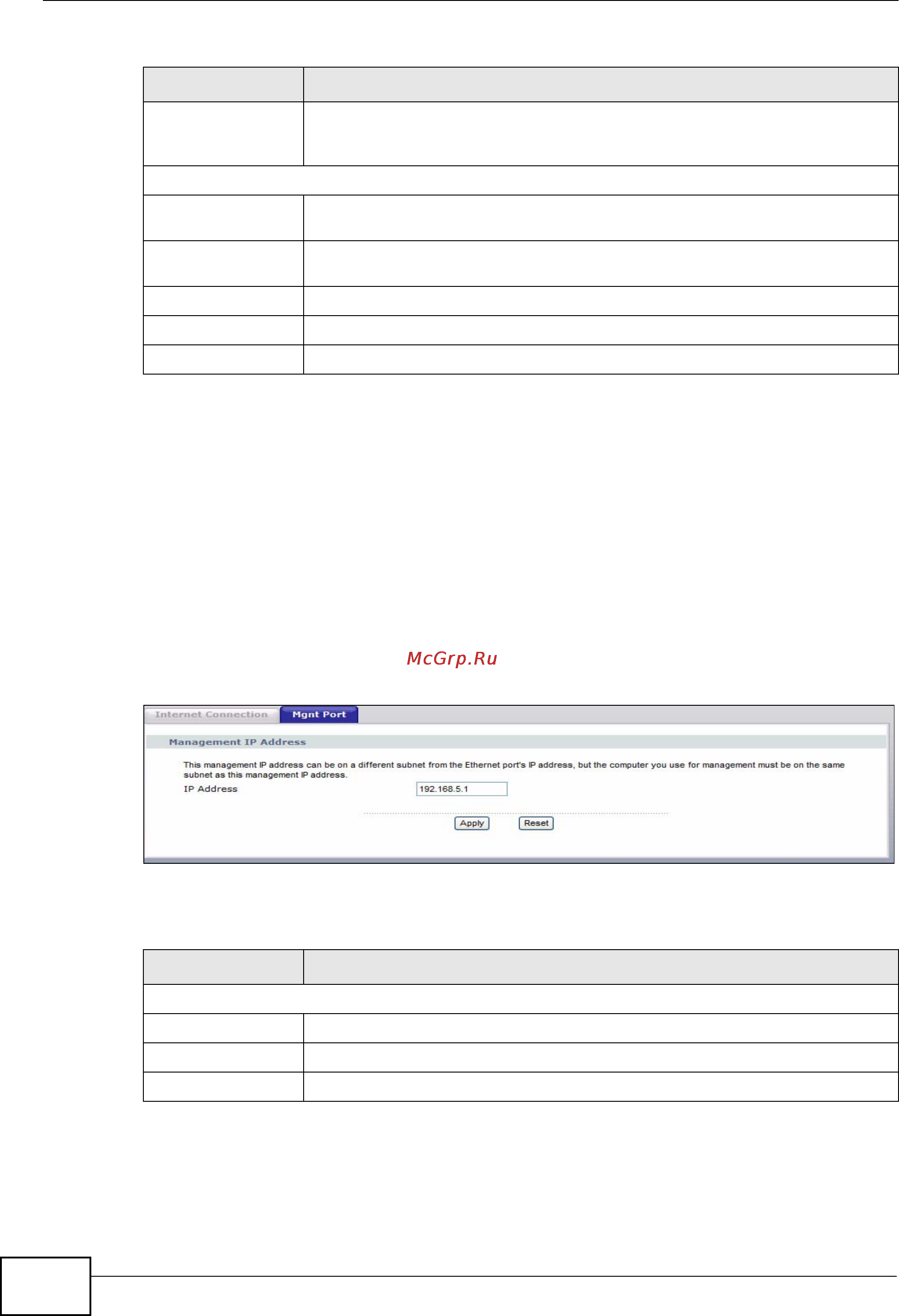

![Zyxel V301-T1 [100/240] Management port](/views2/1013116/page100/bg64.png)
Chapter 9 Network Setup
V300 Series User’s Guide
100
9.3 Management Port
Use this screen to configure the management IP address of the V300. You can use
this IP address to connect to the V300 even when its WAN IP address is in a
different subnet. Your computer must be in the same subnet as the management
IP address to use it.
Click Network > Ethernet > Mgnt Port. The following screen displays.
Figure 83 Network > Mgnt Port
The following table describes the labels in this screen.
Primary DNS
Secondary
DNS
Enter the DNS (Domain Name Service) servers, if provided by your
ISP.
PPPoE
Use PPPoE
Client
Select this if your V300 is a PPPoE client.
PPPoE User
Name
Type the user name given to you by your ISP.
Password Type the password associated with the user name above.
Apply Click this to save your changes.
Reset Click this to reload the previous configuration for this screen.
Table 24 Network > Internet Connection
LABEL DESCRIPTION
Table 25 Network > Mgnt Port
LABEL DESCRIPTION
Management IP Address
IP Address Enter the new management IP address you want the V300 to use.
Apply Click this to save your changes.
Reset Click this to reload the previous configuration for this screen.
