Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

183

5 For statically assigned settings, do the following:

•From the Configure IPv4 list, select Manually.

•In the IP Address field, type your IP address.

•In the Subnet Mask field, type your subnet mask.

•In the Router field, type the IP address of your device.

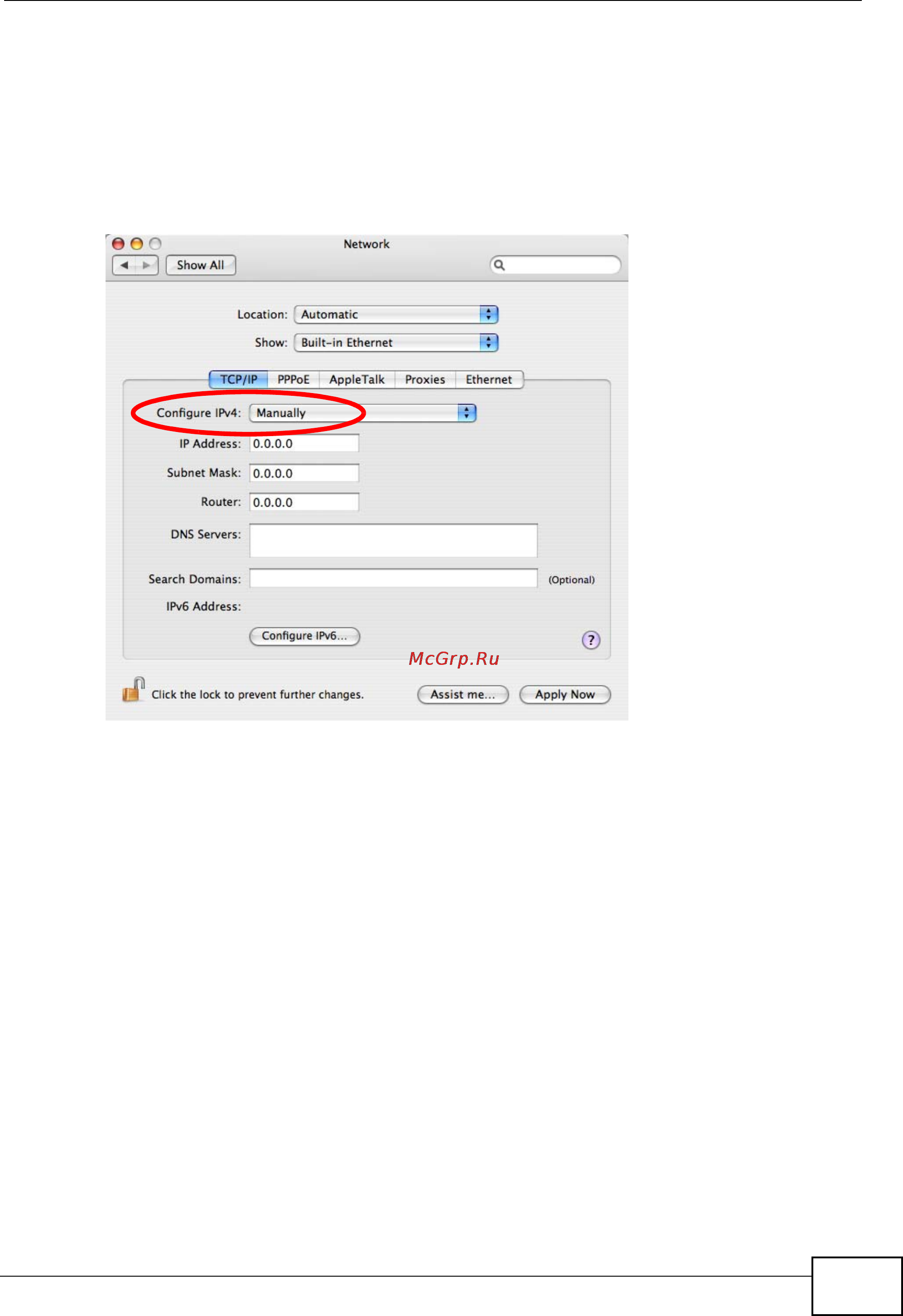

Figure 137 Mac OS X 10.4: Network Preferences > Ethernet

6 Click Apply Now and close the window.
