Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

186

3 When the Network preferences pane opens, select Ethernet from the list of

available connection types.

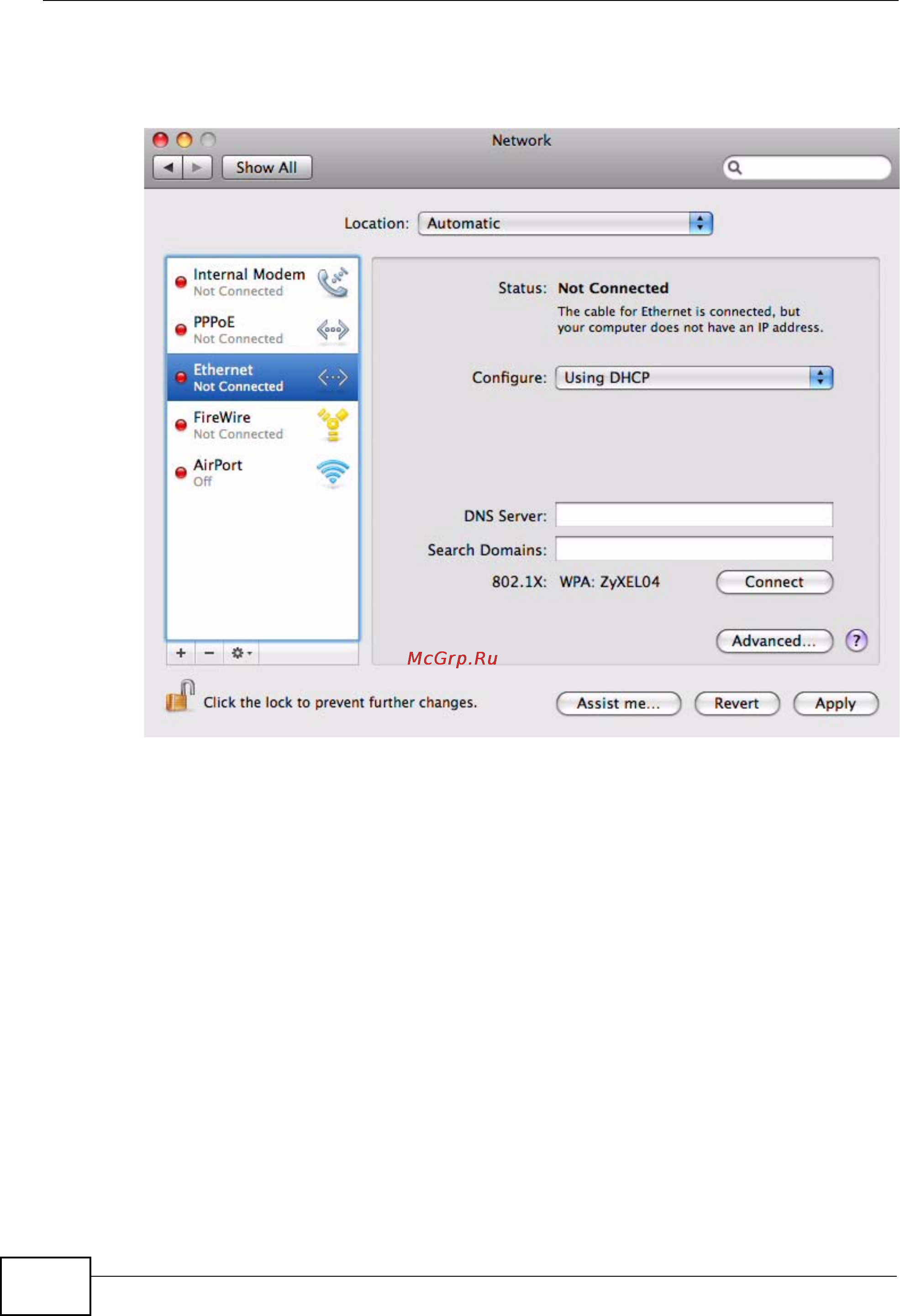

Figure 141 Mac OS X 10.5: Network Preferences > Ethernet

4 From the Configure list, select Using DHCP for dynamically assigned settings.

5 For statically assigned settings, do the following:

•From the Configure list, select Manually.

•In the IP Address field, enter your IP address.

•In the Subnet Mask field, enter your subnet mask.
