Appendix B Setting Up Your Computer’s IP Address
V300 Series User’s Guide
196
4 When the Network Settings window opens, click the Overview tab, select the
appropriate connection Name from the list, and then click the Configure button.

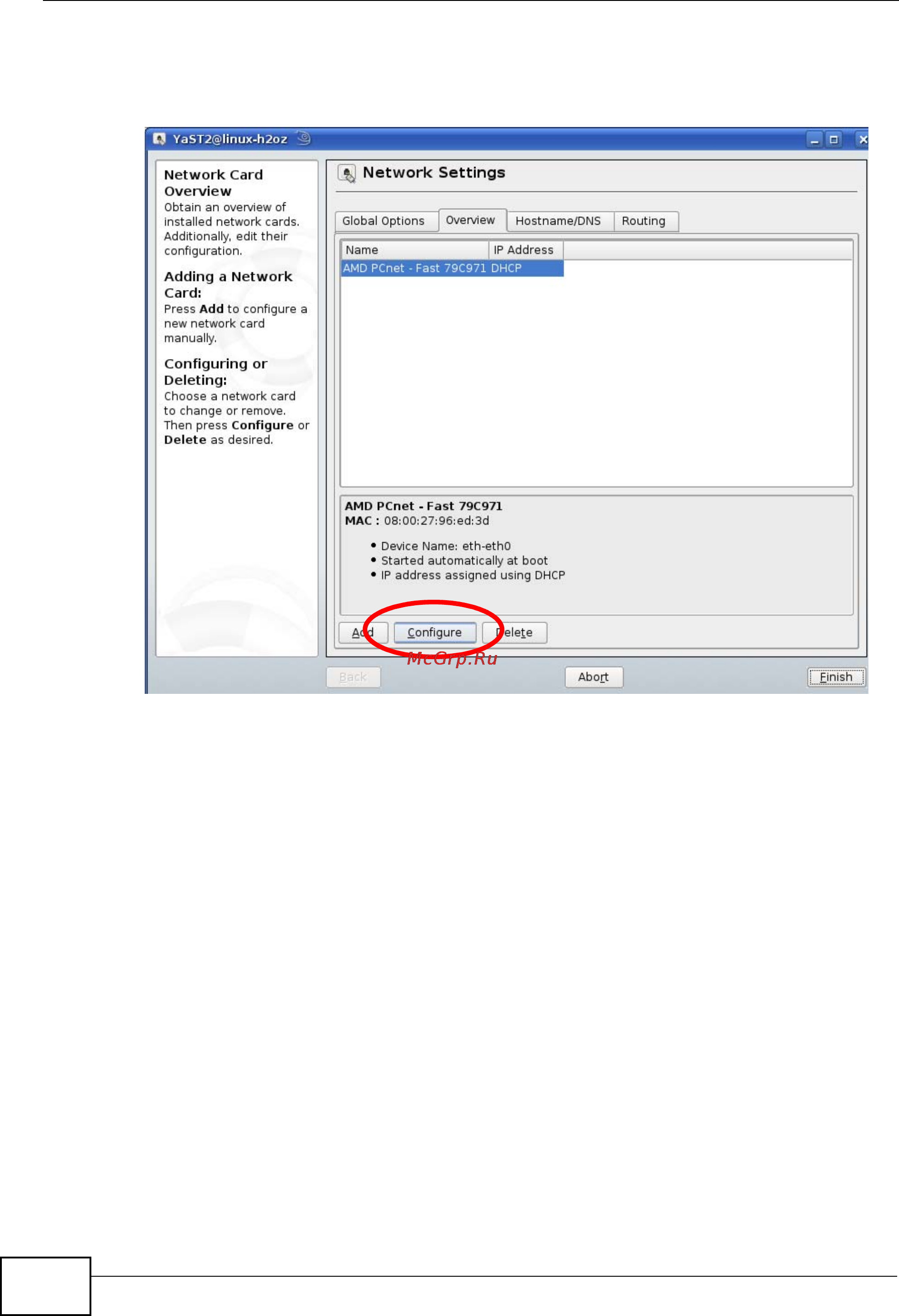

Figure 154 openSUSE 10.3: Network Settings
