Инструкция по эксплуатации Страница: 198

Zyxel V301-T1 [198/240] Figure 156 opensuse 10 network settings

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

198

8 If you know your DNS server IP address(es), click the Hostname/DNS tab in

Network Settings and then enter the DNS server information in the fields

provided.

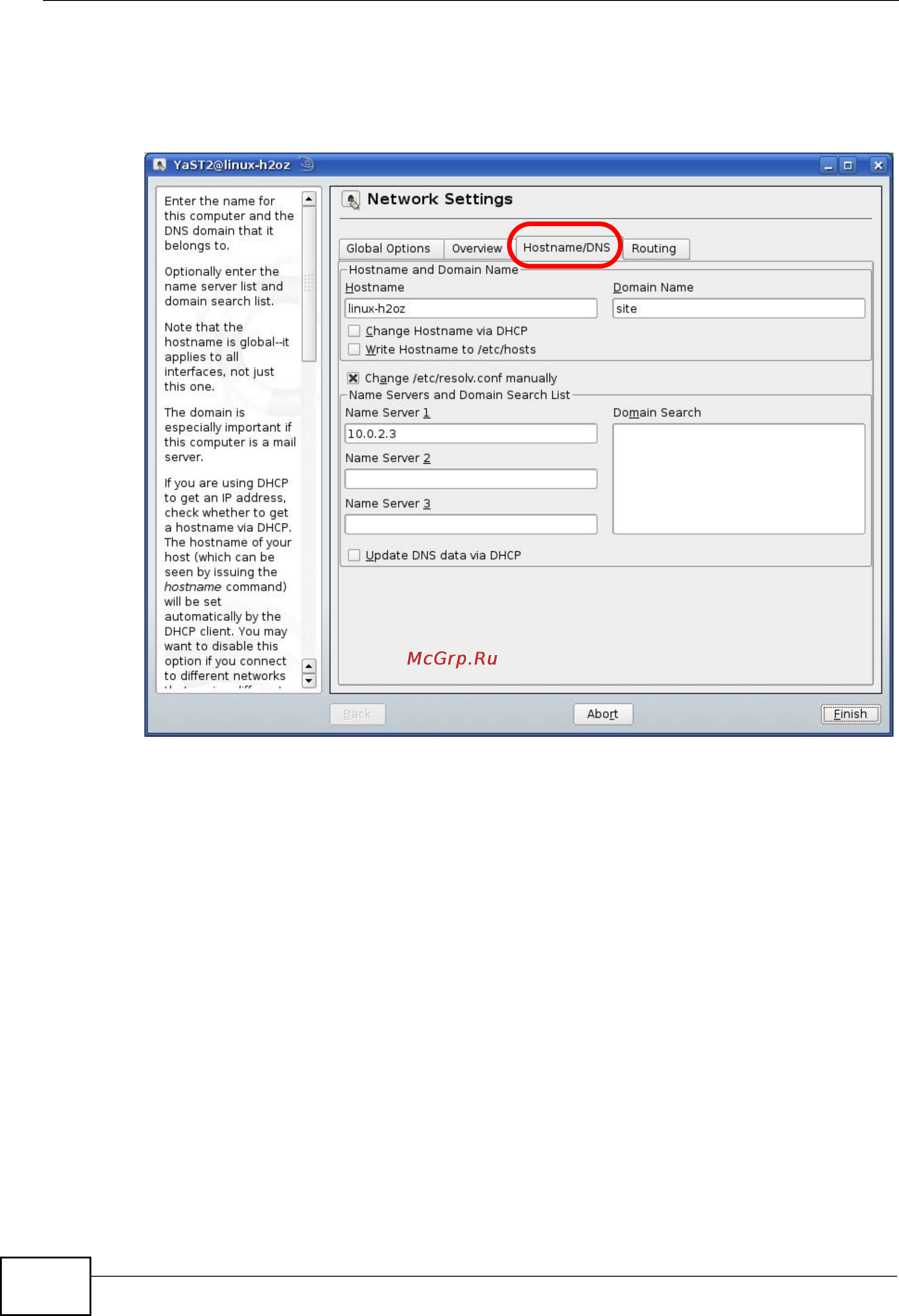

Figure 156 openSUSE 10.3: Network Settings

9 Click Finish to save your settings and close the window.
