Zyxel V301-T1 [84/240] Figure 77 change password screen

Chapter 7 The Web Configurator

V300 Series User’s Guide

4 Type “admin” as the default username and "1234" as the password and click

5 It is strongly recommended that you change your password in the screen that

displays next.

Note: If you do not change your password, anyone who knows the default password

can access your phonebook and SIP account information over the network.

6 Type a new password (and retype it to confirm) then click Apply. Alternatively,

click Ignore.

Note: If you do not change the password, the following screen appears every time you

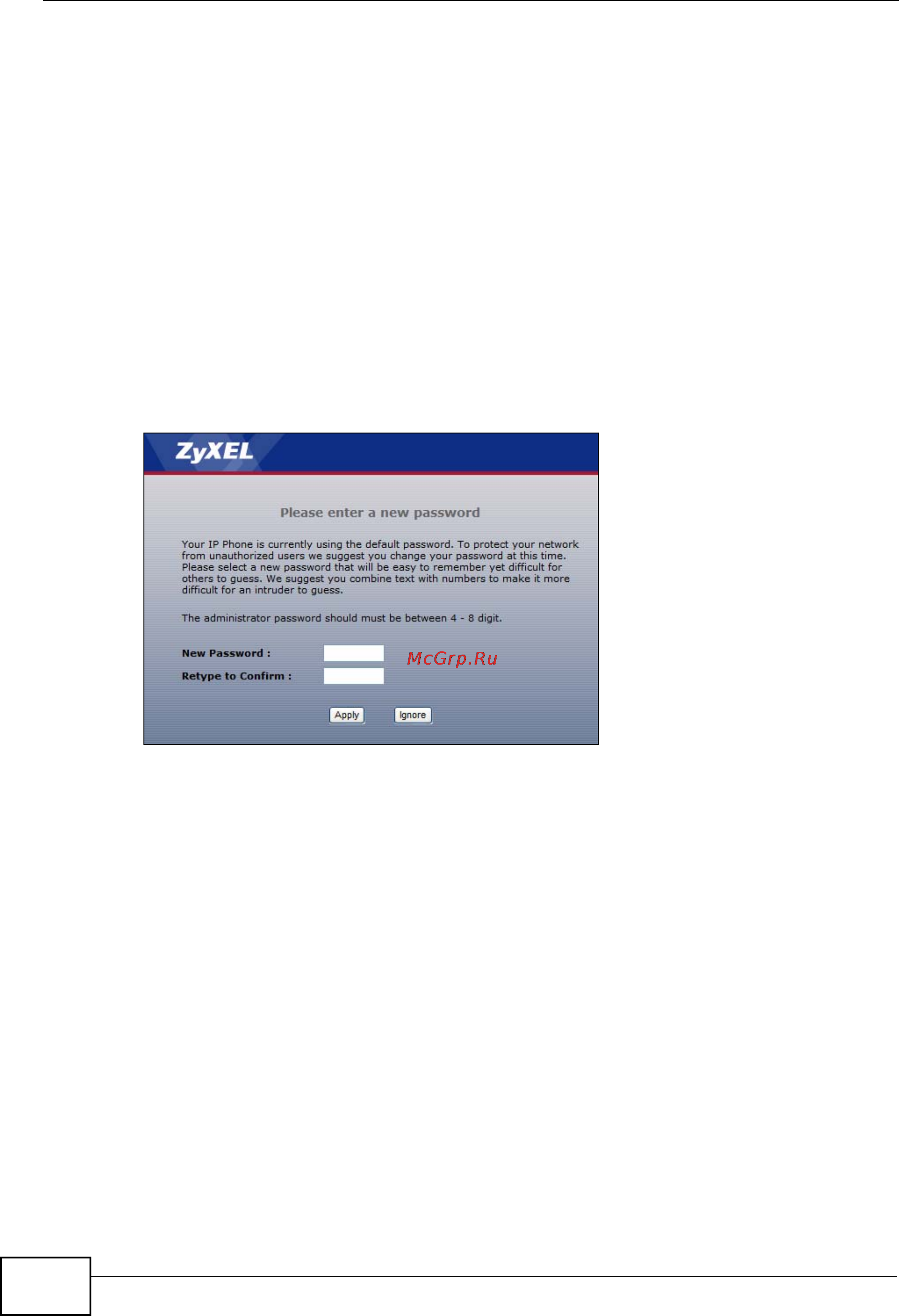

Figure 77 Change Password Screen
