Chapter 10 SIP Account Setup
V300 Series User’s Guide
110
should provide this. You can also enable and disable each SIP account. To access
this screen, click VoIP > SIP > SIP Settings.

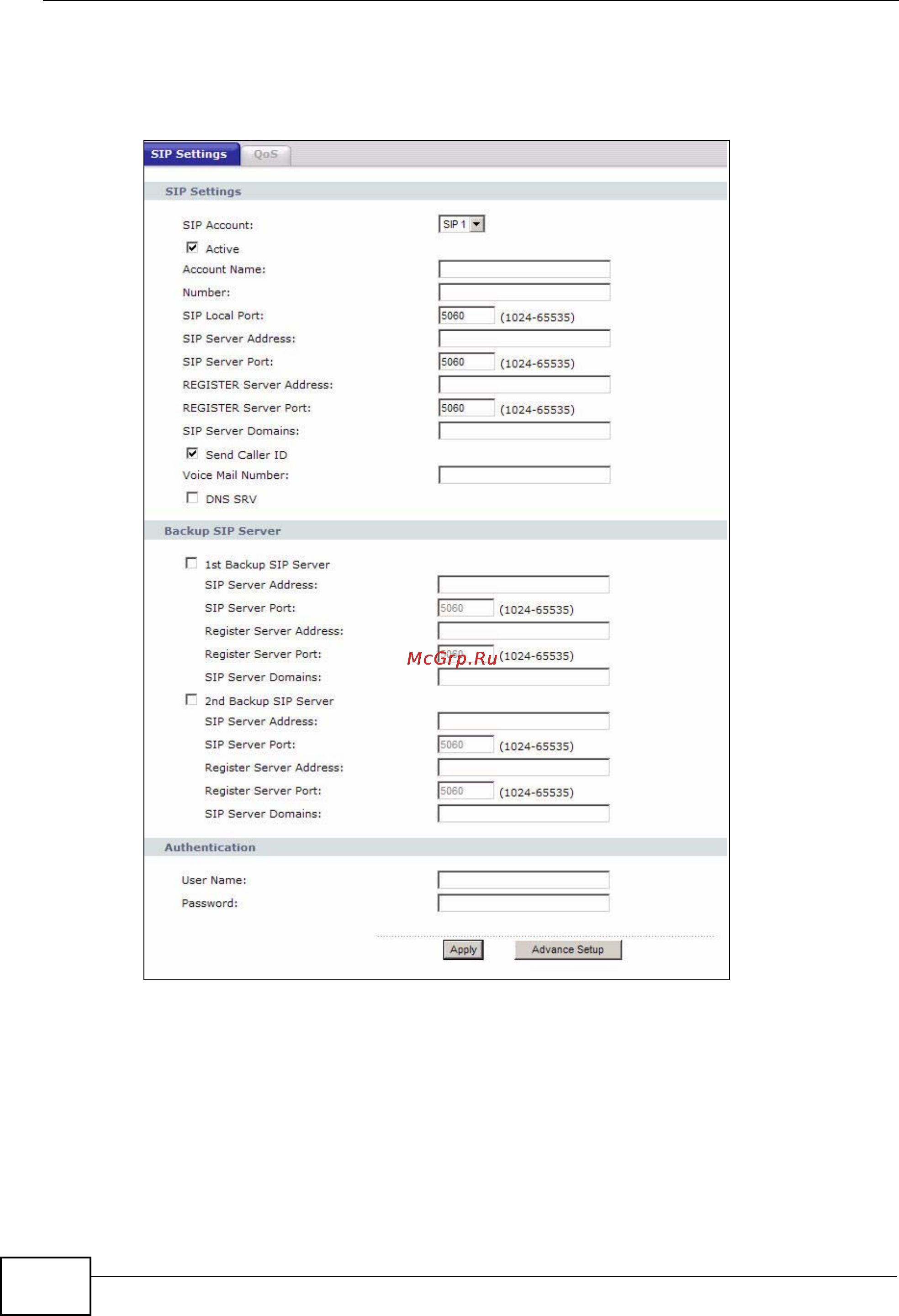

Figure 89 VoIP > SIP > SIP Settings
