Chapter 15 Tools
V300 Series User’s Guide
153
15.5 Ring Maintenance Screen
This screen allows you to upload files to the V300 and use them as ringtones.
These files must be MIDI (Musical Instrument Digital Interface) files with a “.midi”
extension. You can also download files from the V300 to your computer.
Note: The V300 has ten MIDI file slots. If you upload a MIDI file to a file slot on the
V300, the MIDI file already in the slot is deleted. There is no way to retrieve the
deleted file, unless it is a default ringtone (in which case you need to reset the
V300).
Note: Each MIDI file can be up to 10K in size.
Click Maintenance > Tools > Ring Maintenance. The following screen displays.

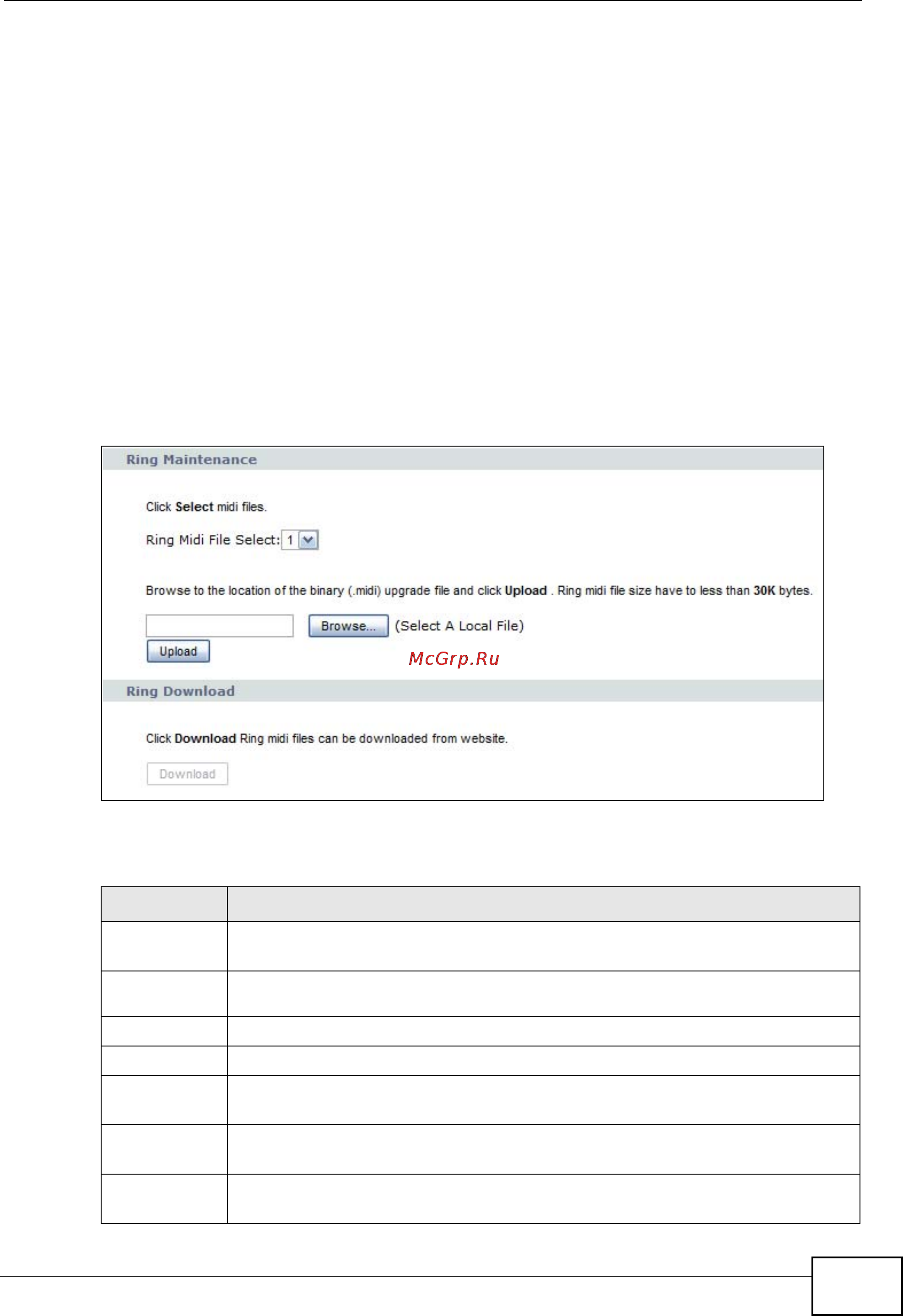

Figure 116 Maintenance > Tools > Ring Maintenance
The following table describes the labels in this screen.
Table 47 Maintenance > Tools > Ring Maintenance
LABEL DESCRIPTION
Ring
Maintenance
Ring Midi
File Select
Select the file you want to manage. The V300 has four MIDI file slots.
Browse Use this to select the file you want to upload to the V300.
Upload Click this once you have selected a file you want to upload.
Delete Click this to delete the file in the slot you selected in the Ring Midi File
Select list.
Ring
Download
Download Click this to download the MIDI file you selected in the Ring Midi File
Select list to your computer. The file is saved in .rar format.
