Appendix C Pop-up Windows, JavaScripts and Java Permissions
V300 Series User’s Guide
207
5 Click OK to close the window.

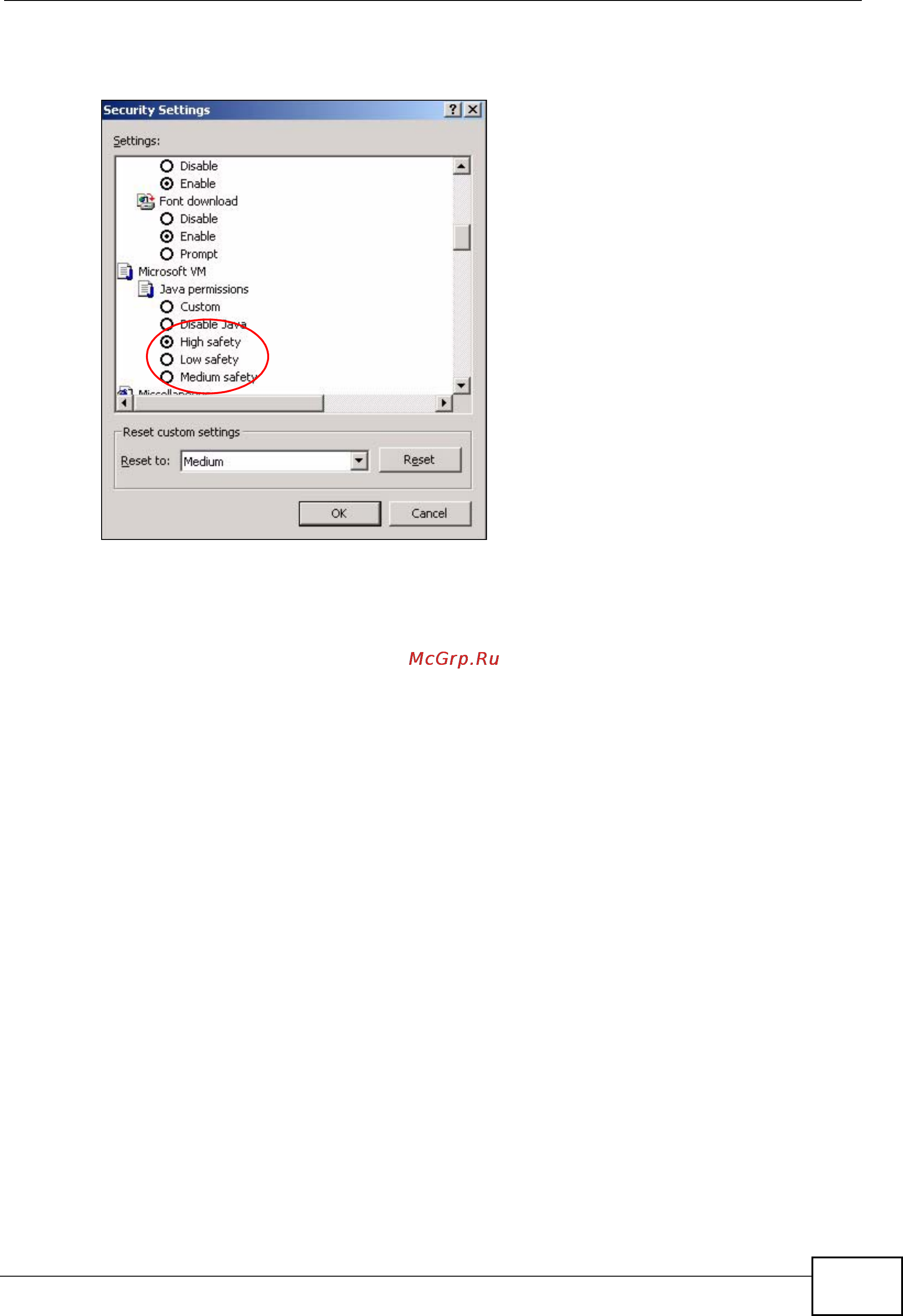

Figure 165 Security Settings - Java
JAVA (Sun)
1 From Internet Explorer, click Tools, Internet Options and then the Advanced
tab.
2 Make sure that Use Java 2 for <applet> under Java (Sun) is selected.
