Zyxel V301-T1 [93/240] Voip statistics

Chapter 8 The Status Screens

V300 Series User’s Guide

8.4 VoIP Statistics

This screen displays SIP registration information, status of calls and VoIP traffic

statistics. To access it, open the Status screen (see Section 8.2 on page 90), and

click (Details...) next to VoIP Statistics.

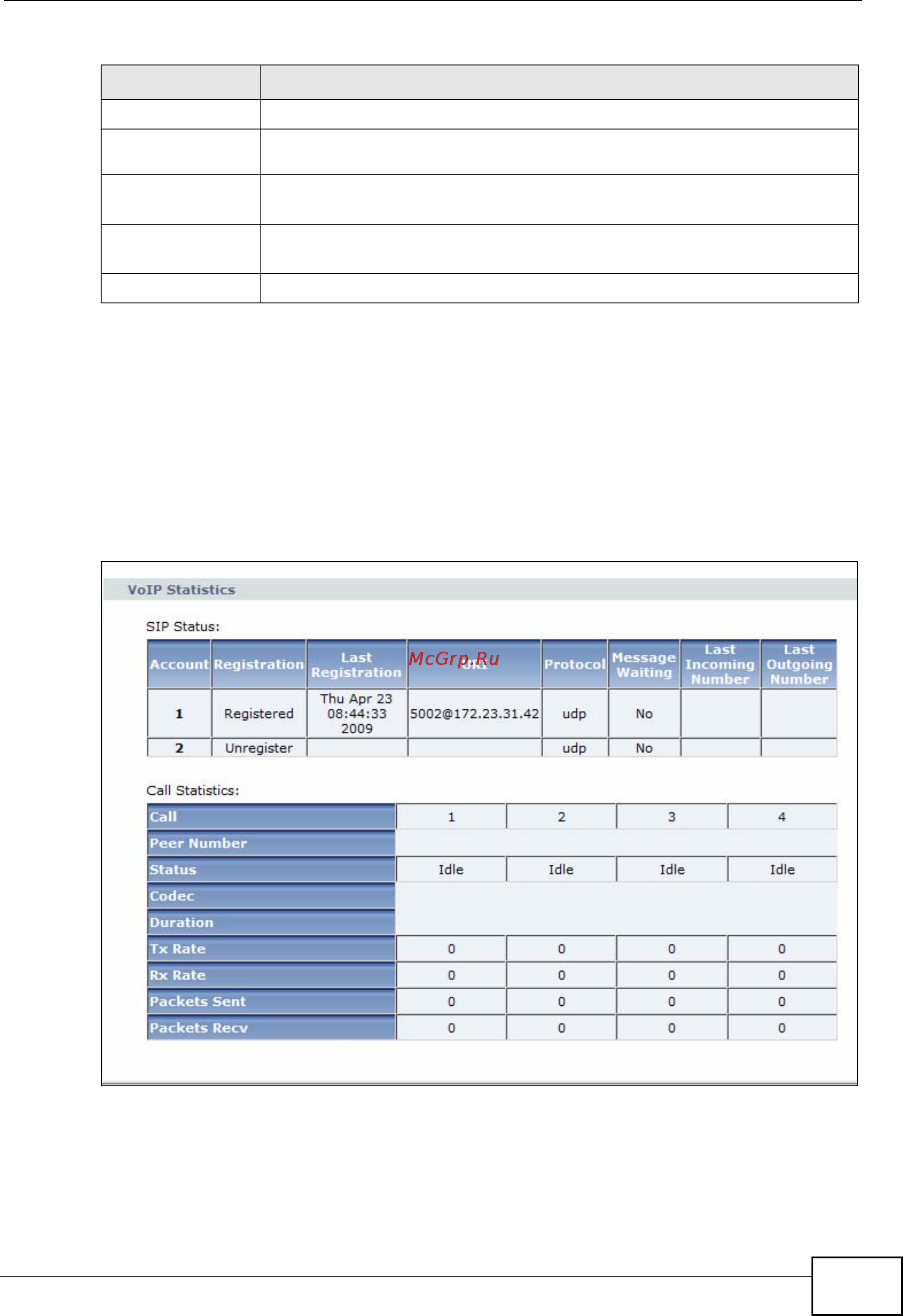

Figure 81 VoIP Statistics

Up Time This field displays the elapsed time this interface has been connected.

System up

Time

This is the elapsed time the system has been on.

Poll Interval(s) Type the time interval (in seconds) for the browser to refresh system

statistics.

Set Interval Click this button to apply the new poll interval you entered in the Poll

Interval field.

Stop Click this button to halt the refreshing of the system statistics.

Table 21 Packet Statistics (continued)

LABEL DESCRIPTION
