Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

177

4 Click Manage network connections.

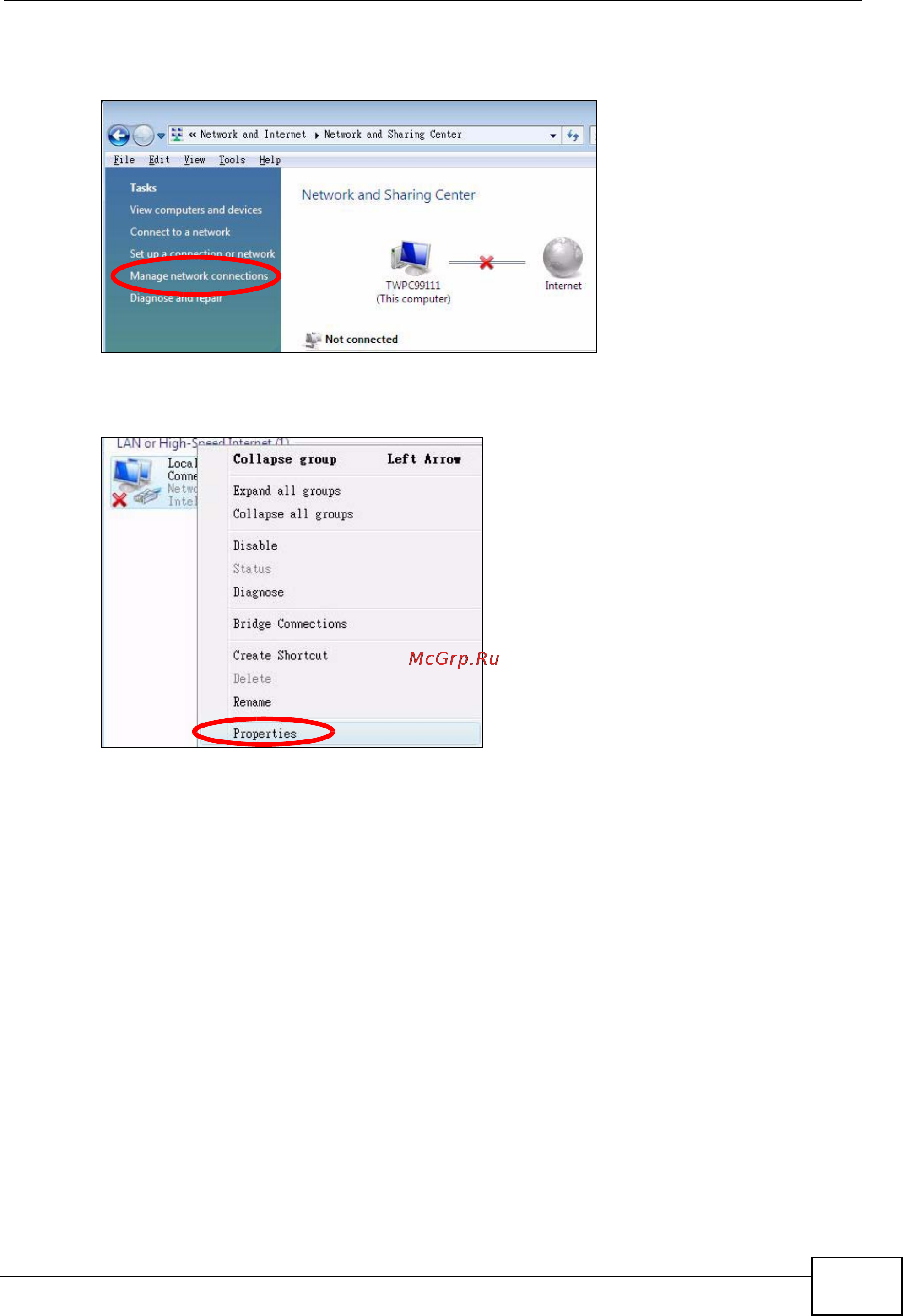

Figure 129 Windows Vista: Network and Sharing Center

5 Right-click Local Area Connection and then select Properties.

Figure 130 Windows Vista: Network and Sharing Center

Note: During this procedure, click Continue whenever Windows displays a screen

saying that it needs your permission to continue.
