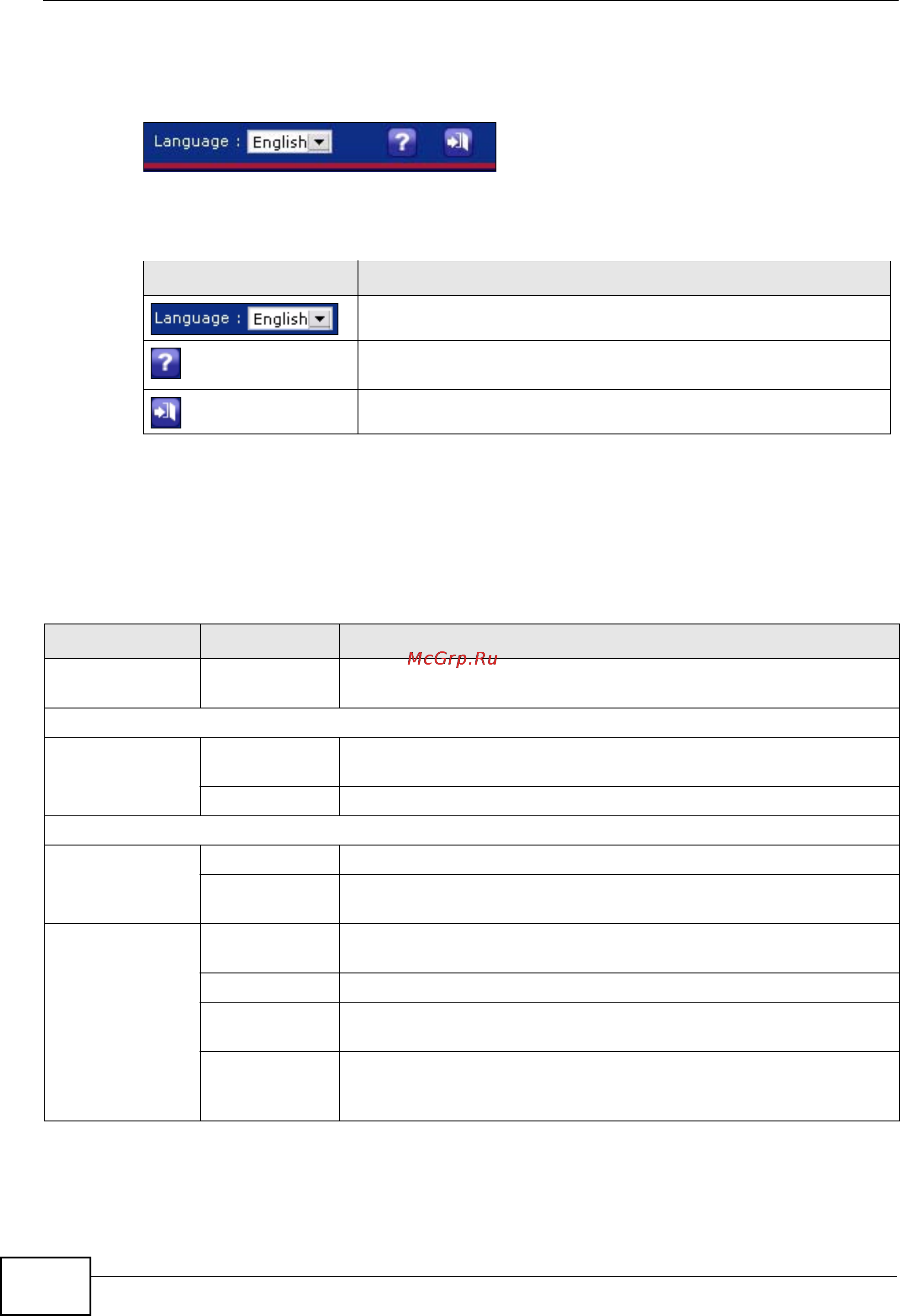

Chapter 7 The Web Configurator
V300 Series User’s Guide
86
7.2.1 Title Bar
The title bar has some icons in the upper right corner.
The icons have the following functions.
7.2.2 Navigation Panel
Use the menu items on the navigation panel to open screens and configure the
V300’s features. The following table describes the menu items.
Table 18 Web Configurator Icons in the Title Bar
ICON DESCRIPTION
Language: At the time of writing, only English is supported.
Help: Click this to see online help related to the current
screen.
Logout: Click this icon to log out of the web configurator.
Table 19 Navigation Panel Summary
LINK TAB FUNCTION
Status This screen contains administrative and system-related
information.
Network
Ethernet Internet
Connection
Use this screen to configure ISP parameters, WAN IP address
assignment and other advanced properties.
Mgnt Port Use this screen to set the V300’s management IP address.
VoIP
SIP SIP Settings Use this screen to configure your V300’s Voice over IP settings.
QoS Use this screen to configure your V300’s Quality of Service
settings for VoIP.
Phone Phone Settings Use this screen to configure general phone settings, including
volume levels and ringtone selection.
Region Use this screen to select your location.
Speed Dial
Settings
Use this screen to configure speed dial for phone numbers that
you call often.
Programmable
Feature Key
Settings
Use this screen configure the phone’s programmable feature
keys.
