Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

191

5 The Properties dialog box opens.

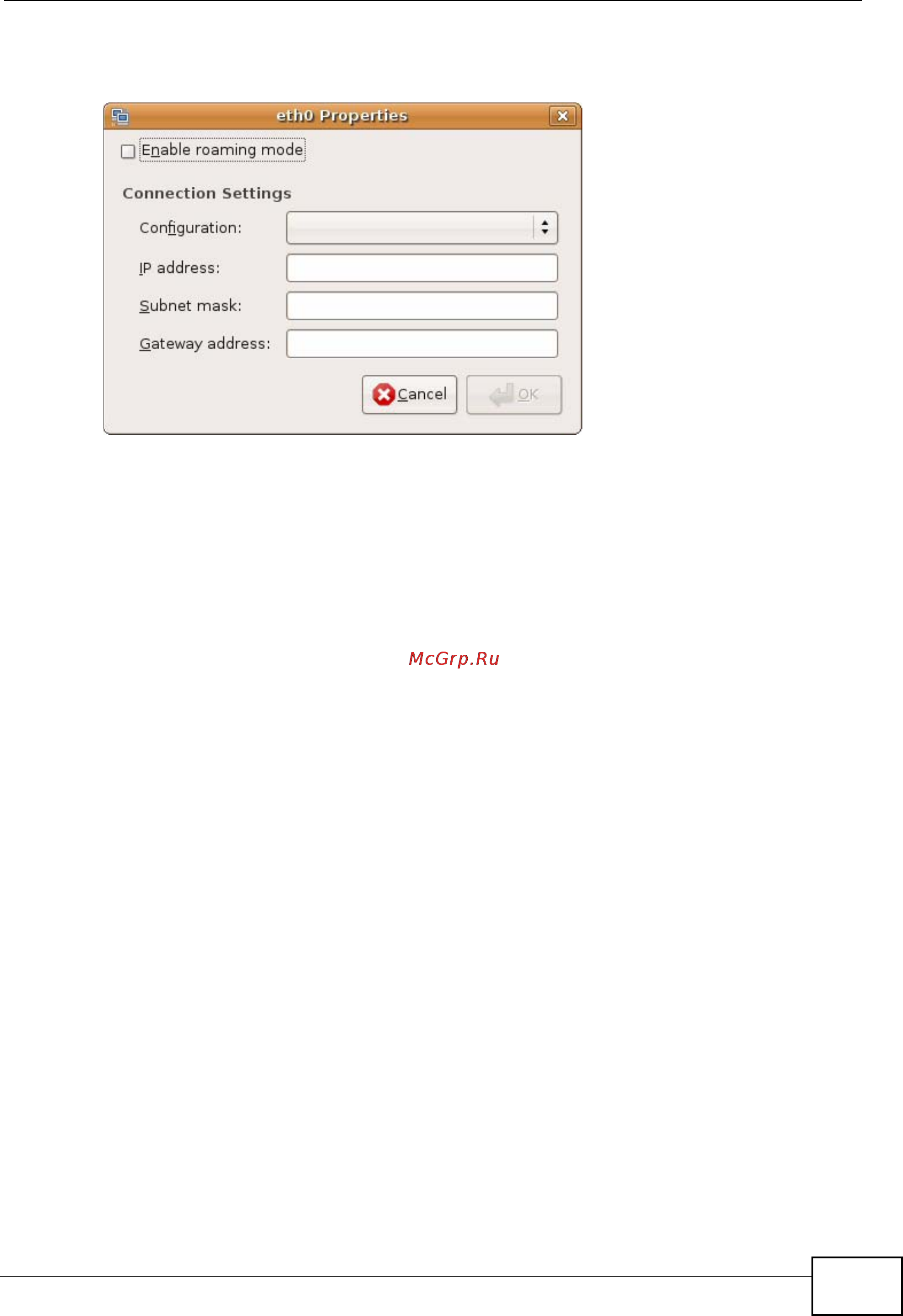

Figure 148 Ubuntu 8: Network Settings > Properties

•In the Configuration list, select Automatic Configuration (DHCP) if you

have a dynamic IP address.

•In the Configuration list, select Static IP address if you have a static IP

address. Fill in the IP address, Subnet mask, and Gateway address fields.

6 Click OK to save the changes and close the Properties dialog box and return to

the Network Settings screen.
