Appendix C Pop-up Windows, JavaScripts and Java Permissions

V300 Series User’s Guide

204

4 Click Add to move the IP address to the list of Allowed sites.

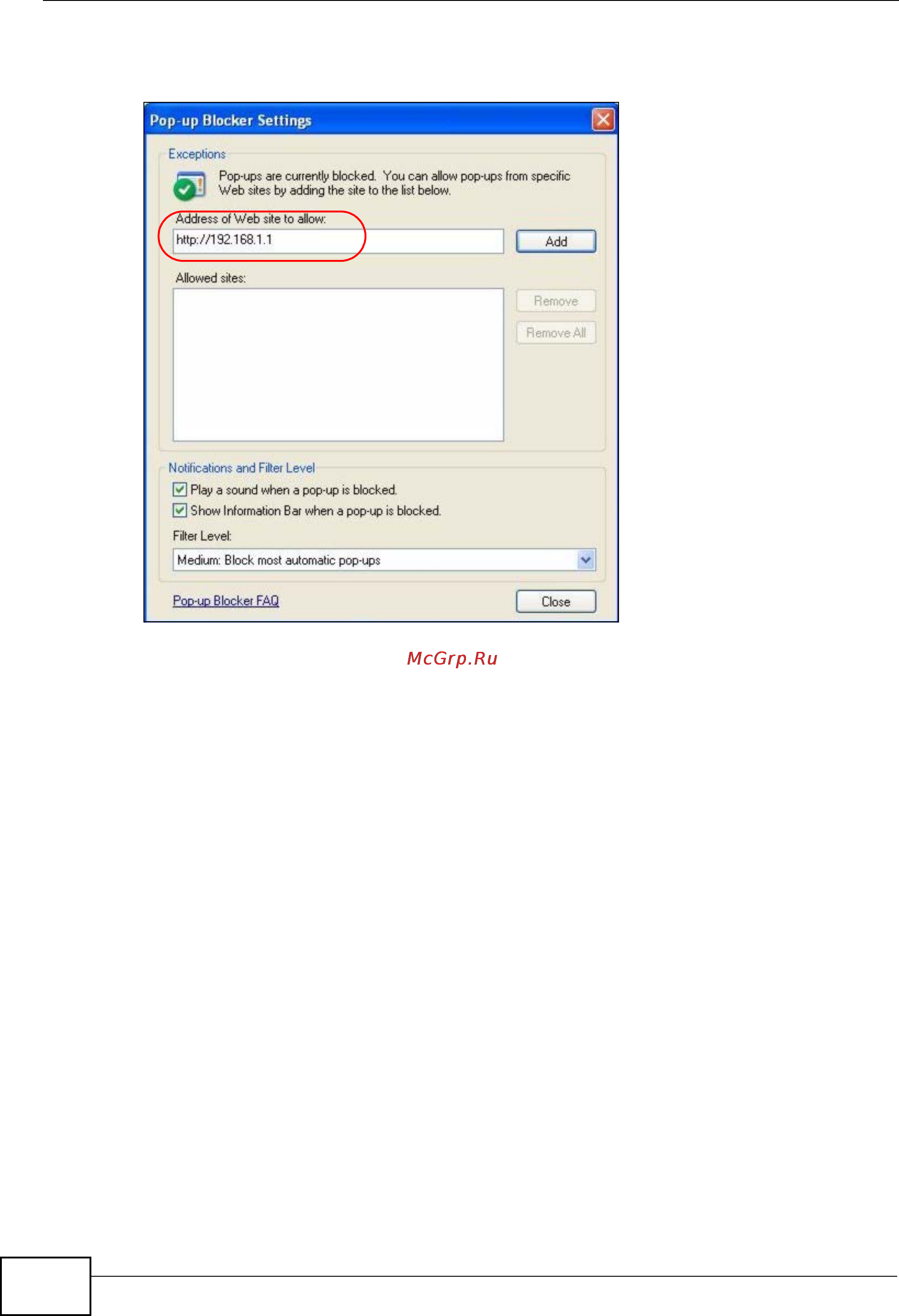

Figure 162 Pop-up Blocker Settings

5 Click Close to return to the Privacy screen.

6 Click Apply to save this setting.

JavaScripts

If pages of the web configurator do not display properly in Internet Explorer, check

that JavaScripts are allowed.
