Chapter 9 Network Setup
V300 Series User’s Guide
99
Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as
it requires no specific configuration of the broadband modem at the customer site.
By implementing PPPoE directly on the V300 (rather than individual computers),
the computers on the LAN do not need PPPoE software installed, since the V300
does that part of the task. Furthermore, with NAT, all of the LANs’ computers will
have access.
9.2 Internet Connection
Use this screen to change your V300’s Internet access settings. Click Network >
Internet Connection.

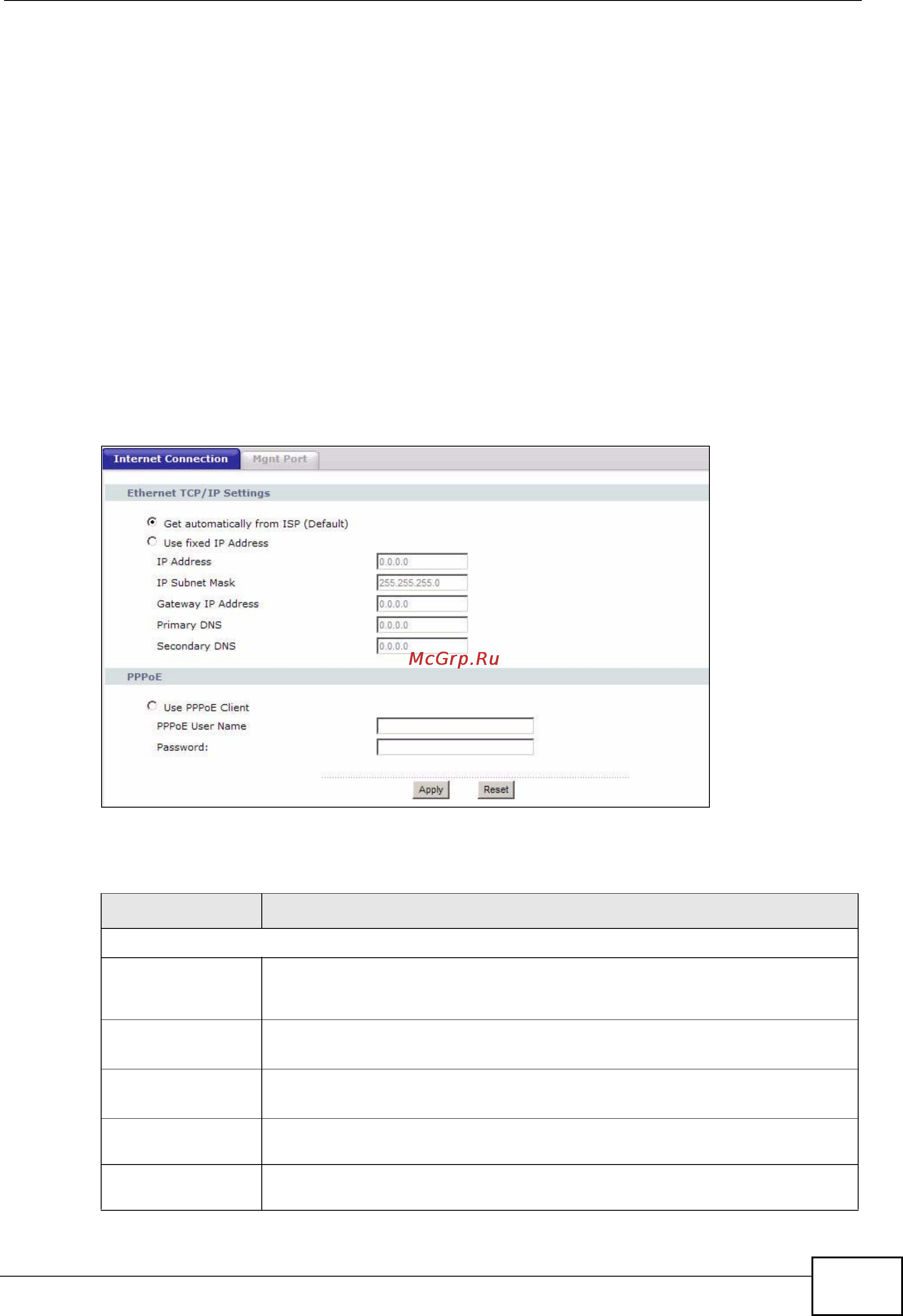

Figure 82 Network > Internet Connection
The following table describes the labels in this screen.
Table 24 Network > Internet Connection
LABEL DESCRIPTION
Ethernet TCP/IP Settings
Get
automatically
from DHCP
Select this option if your ISP did not give you an IP address.
Use Fixed IP
Address
Select this option If your ISP assigned a fixed IP address. Enter the
address information in the following fields.
IP Address Enter your WAN IP address in this field if you selected Use Fixed IP
Address.
IP Subnet
Mask
Enter the IP Subnet Mask in this field.
Gateway IP
Address
Enter a Gateway IP Address (if your ISP gave you one) in this field.
