Appendix C Pop-up Windows, JavaScripts and Java Permissions

V300 Series User’s Guide

206

6 Click OK to close the window.

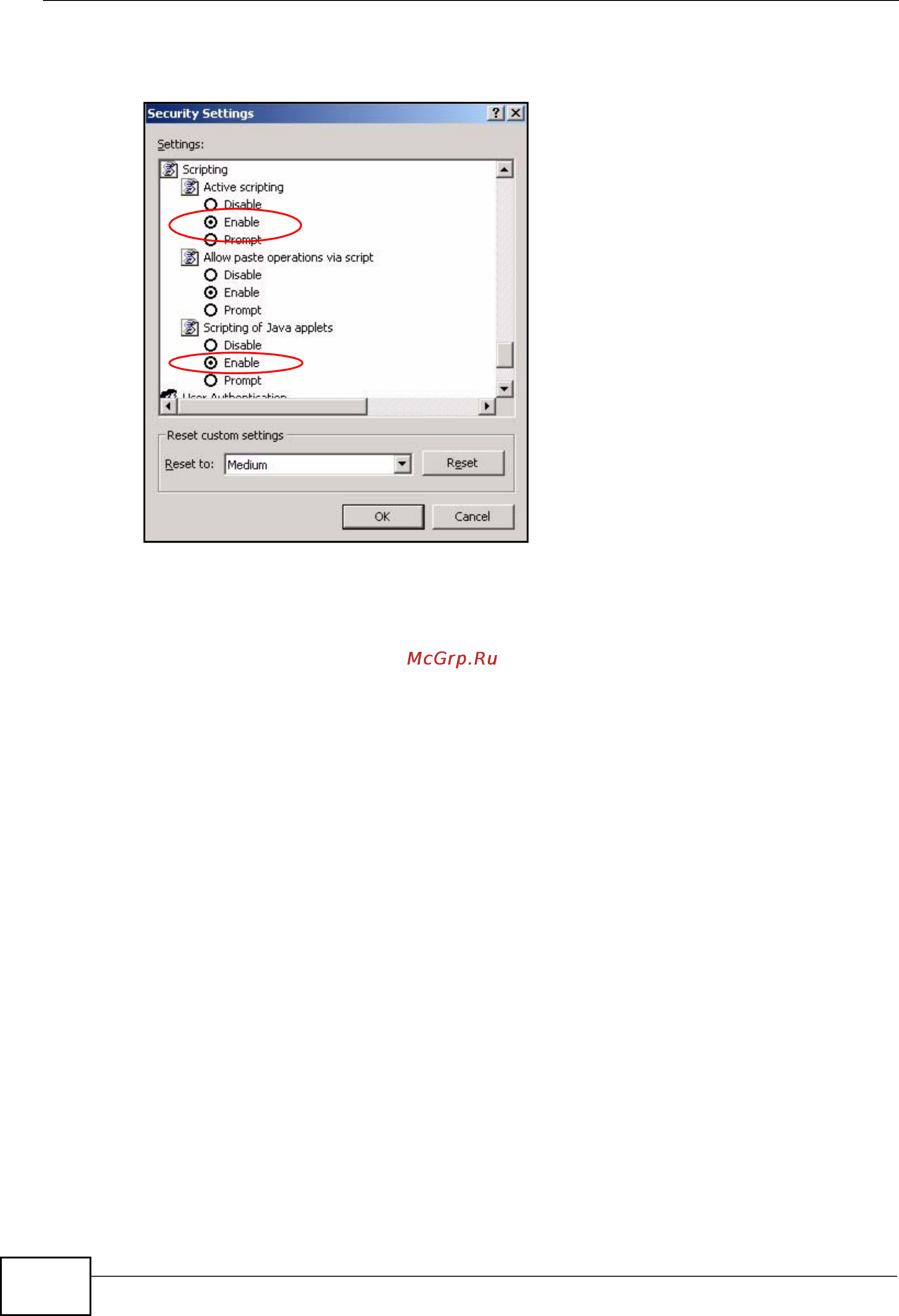

Figure 164 Security Settings - Java Scripting

Java Permissions

1 From Internet Explorer, click Tools, Internet Options and then the Security

tab.

2 Click the Custom Level... button.

3 Scroll down to Microsoft VM.

4 Under Java permissions make sure that a safety level is selected.
