Appendix B Setting Up Your Computer’s IP Address
V300 Series User’s Guide
185
Mac OS X: 10.5
The screens in this section are from Mac OS X 10.5.

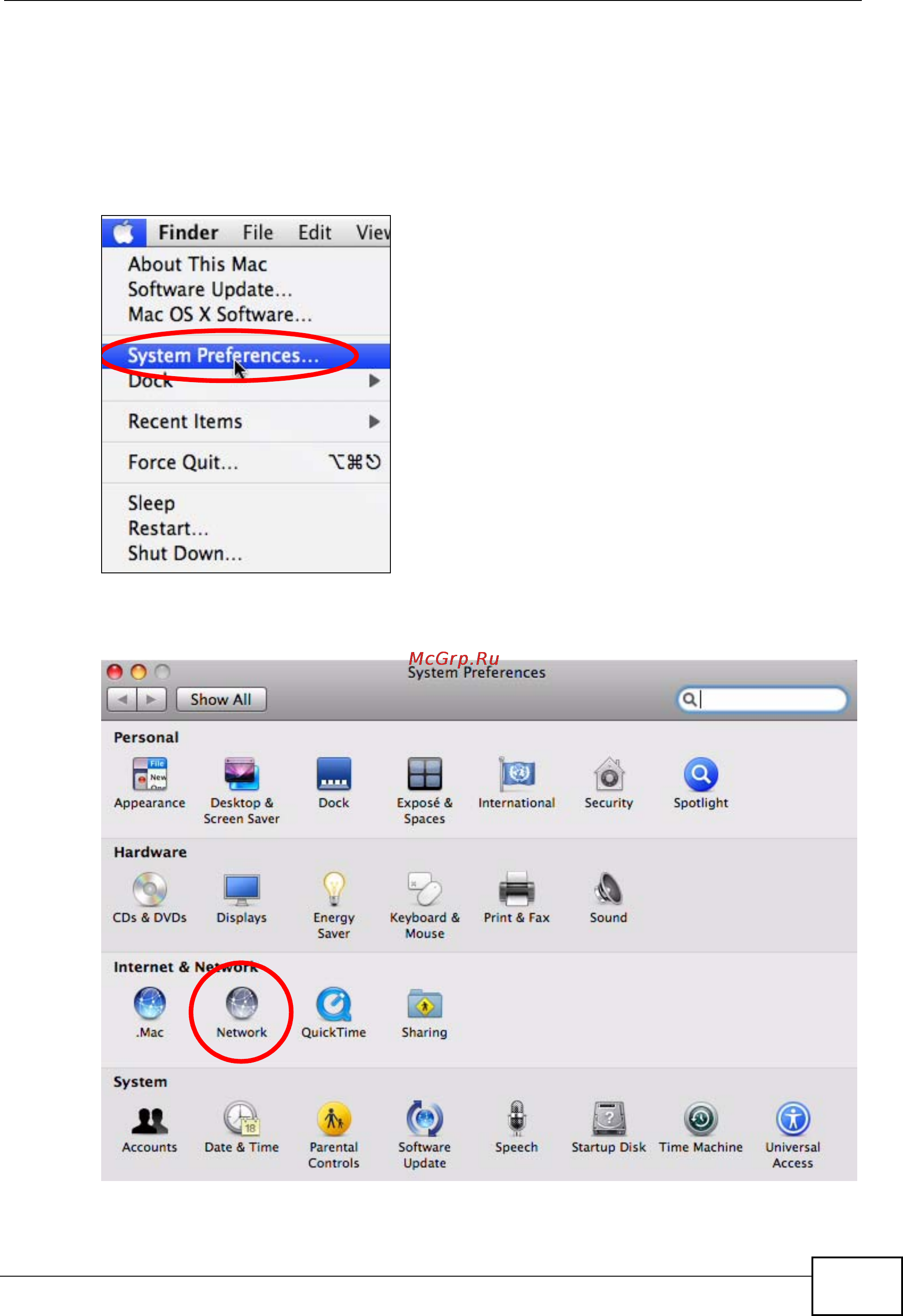

1 Click Apple > System Preferences.
Figure 139 Mac OS X 10.5: Apple Menu
2 In System Preferences, click the Network icon.
Figure 140 Mac OS X 10.5: Systems Preferences
