Chapter 1 Introducing the V300
V300 Series User’s Guide
29
network. The IP-PBX also forwards calls to IP phones (C) through an IP network
(this could include the Internet).

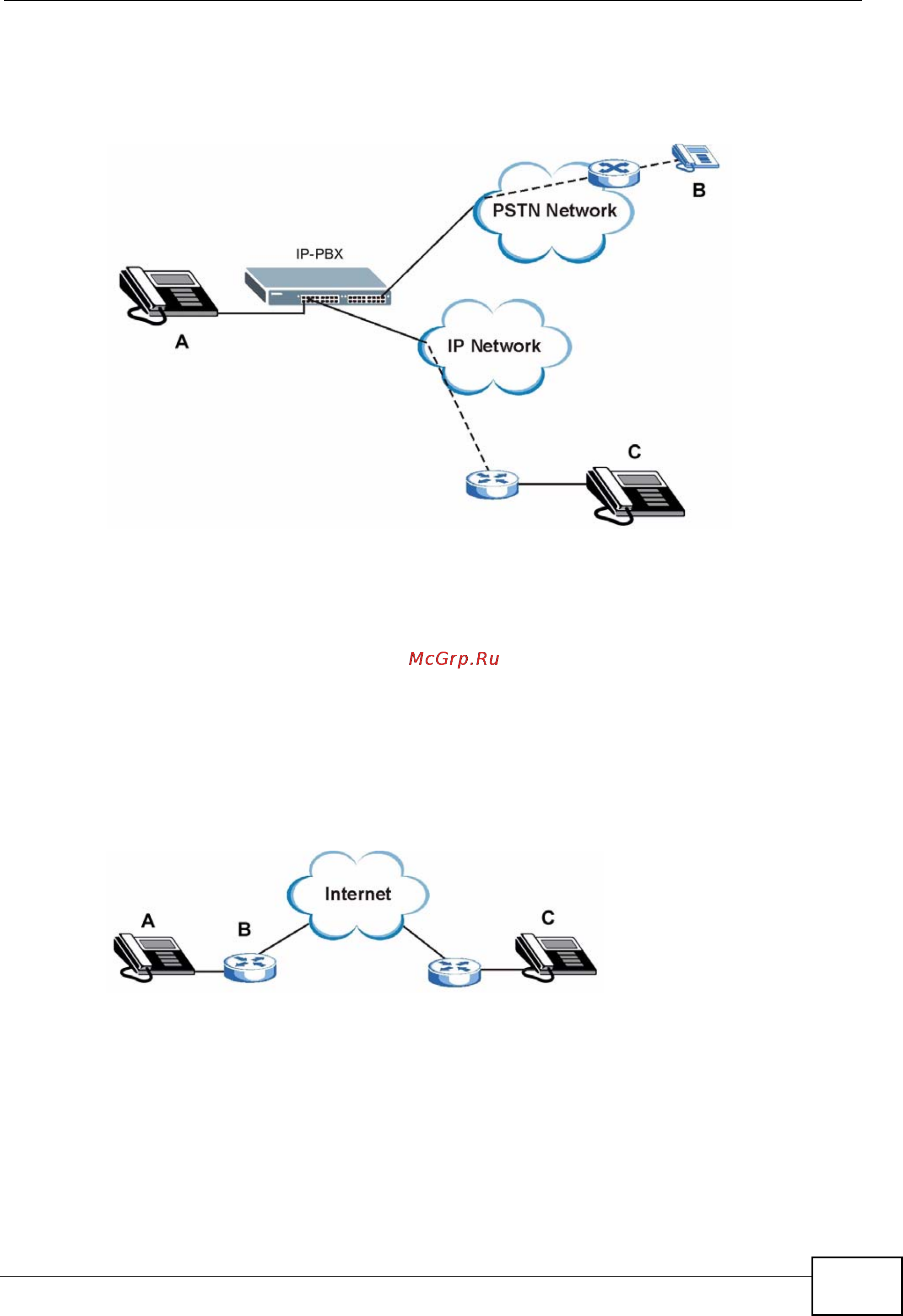

Figure 2 IP-PBX Application
1.2.3 Make Peer-to-peer Calls
Use the V300 to make a call to the recipient’s IP address without using a SIP
server. Peer-to-peer calls are also called “Point to Point” or “IP-to-IP” calls. You
must know the peer’s IP address in order to do this.
The following figure shows a basic example of how you would make a peer-to-peer
VoIP call. You make a call on your V300 (A), which sends your call through your
modem or router (B) and the Internet to the peer VoIP device (C).
Figure 3 Peer-to-peer Calling
1.3 Ways to Manage the V300
Use any of the following methods to manage the V300.
• Hardware keys. Use the control keys and LCD menus on the V300 for basic
configuration.
