Zyxel V301-T1 [154/240] Packet mirror screen

Chapter 15 Tools

V300 Series User’s Guide

154

15.6 Packet Mirror Screen

This screen is where you can configure packet mirroring on the V300. This sets the

device to send voice packets from the V300 to another IP address, where they can

be analyzed to clarify Internet-related issues.

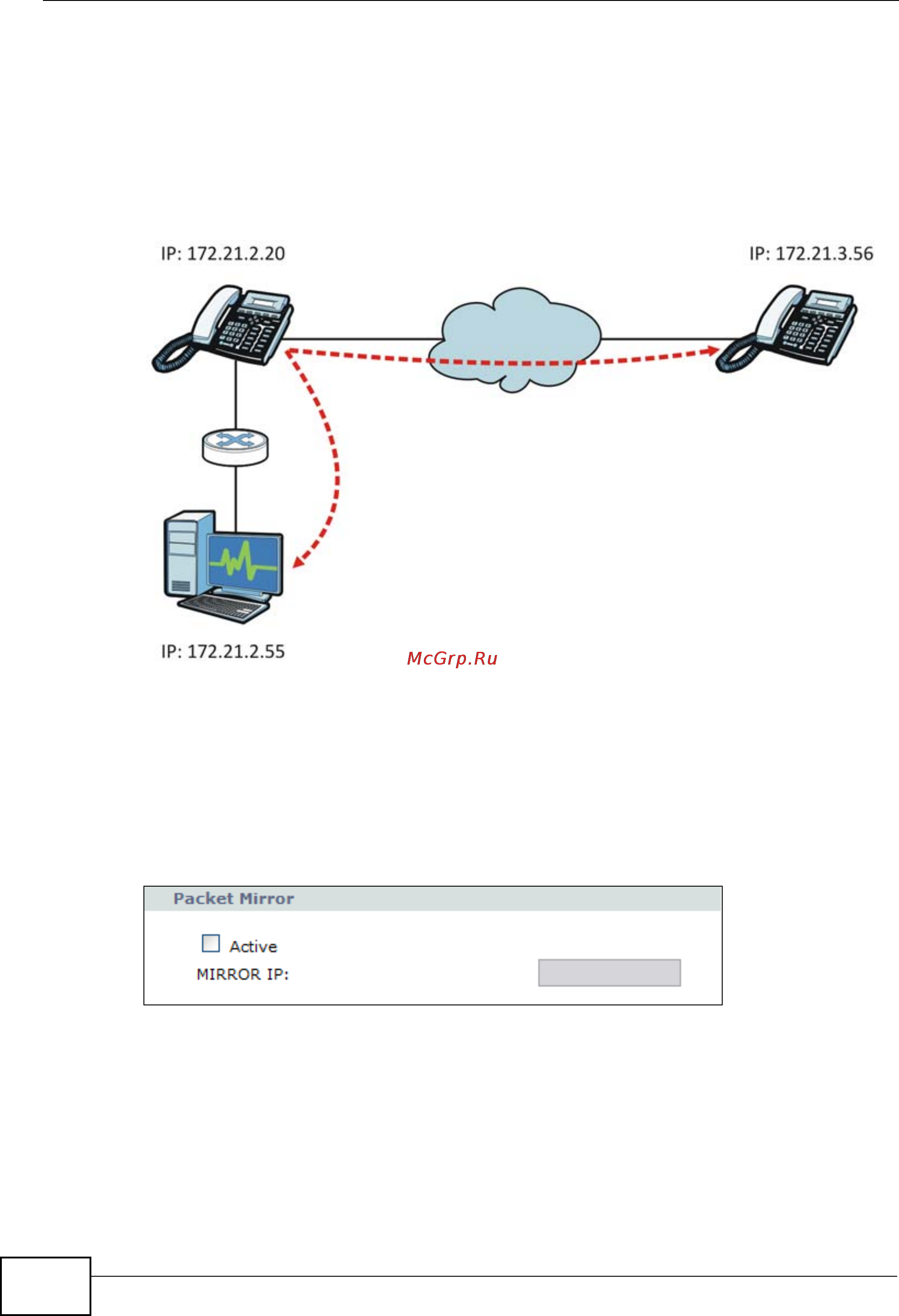

Figure 117 Packet Mirror Example

In this example, phone A sends its voices packets to phone B as part of its routine

communication but also sends duplicate packets to a computer with a packet

analyzer so that they can be scanned for errors. Furthermore, in order for this to

work both phone A and the monitoring computer are in the same subnet.

Click Maintenance > Tools > Packet Mirror. The following screen displays.

Figure 118 Maintenance > Tools > Packet Mirror
