Chapter 10 SIP Account Setup
V300 Series User’s Guide
117
10.3 SIP QoS Screen
Use this screen to maintain ToS and VLAN settings for the V300. Click VoIP > SIP
> QoS. The following screen displays.

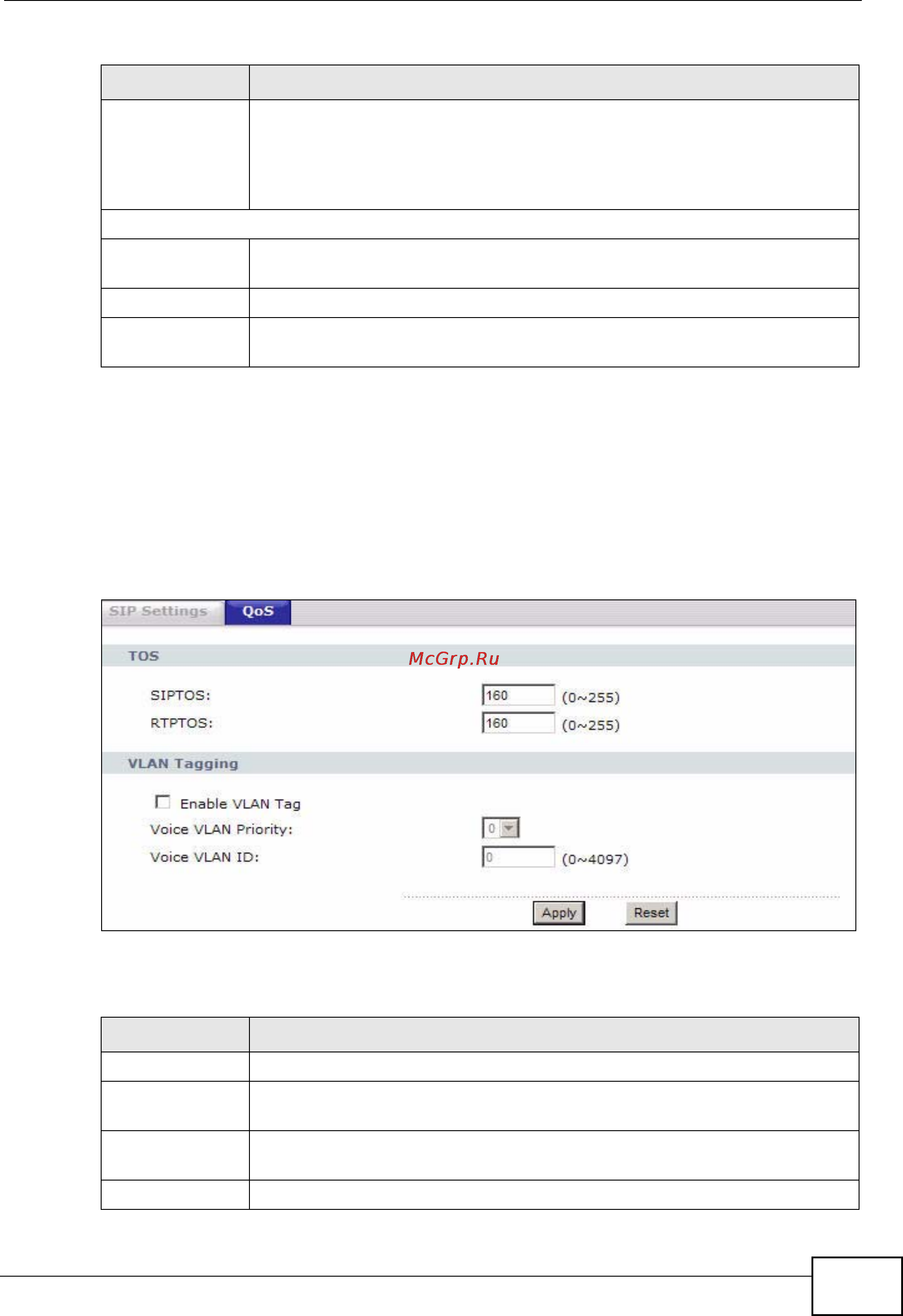

Figure 91 VoIP > SIP > QoS
Each field is described in the following table.
Enable Select this to turn the RingBack function on. When someone calls you,
and the line is busy, the caller is given the option to set an automatic
RingBack. When you finish your call, the V300 automatically calls the
person who called you, and then rings to alert you once the caller picks
up.
MusicOnHold Active
Enable Check this box if you want people to hear a customized recording when
you put them on hold. This function depends on your service provider.
Apply
Click this to save your changes.
Back Click this to return to the SIP Settings screen without saving your
changes.
Table 28 VoIP > SIP > SIP Settings > Advanced Setup (continued)
LABEL DESCRIPTION
Table 29 VoIP > SIP > QoS
LABEL DESCRIPTION
TOS
SIPTOS Enter the priority for SIP voice transmissions. The V300 creates Type of
Service priority tags with this priority to voice traffic that it transmits.
RTPTOS Enter the priority for RTP voice transmissions. The V300 creates Type of
Service priority tags with this priority to RTP traffic that it transmits.
VLAN Tagging
