Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

195

2 When the Run as Root - KDE su dialog opens, enter the admin password and

click OK.

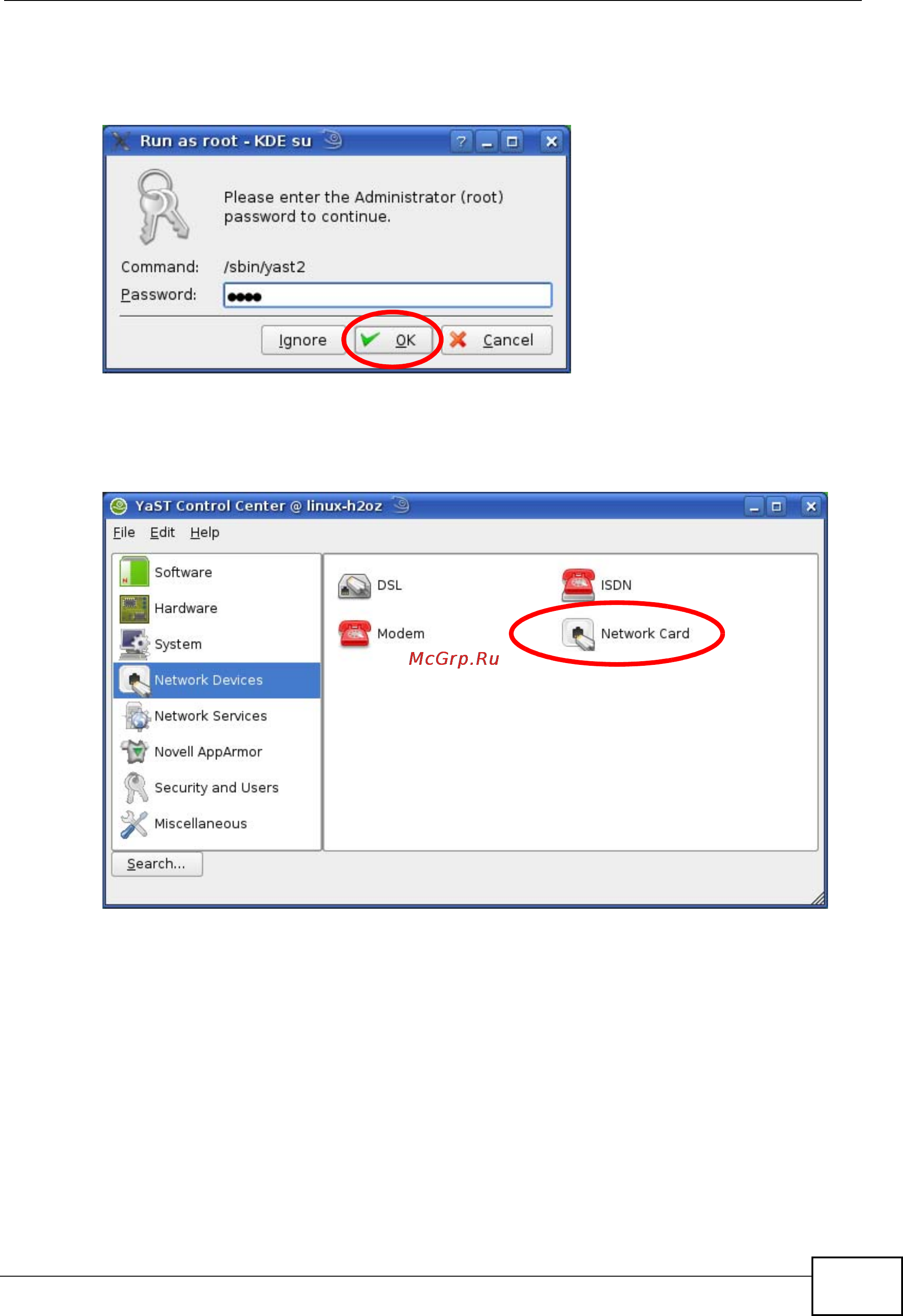

Figure 152 openSUSE 10.3: K Menu > Computer Menu

3 When the YaST Control Center window opens, select Network Devices and

then click the Network Card icon.

Figure 153 openSUSE 10.3: YaST Control Center
