Chapter 10 SIP Account Setup
V300 Series User’s Guide
113
10.2.1 Advanced SIP Setup Screen
Use this screen to maintain advanced settings for each SIP account. Click
Advanced Setup in VoIP > SIP > SIP Settings. The following screen displays.

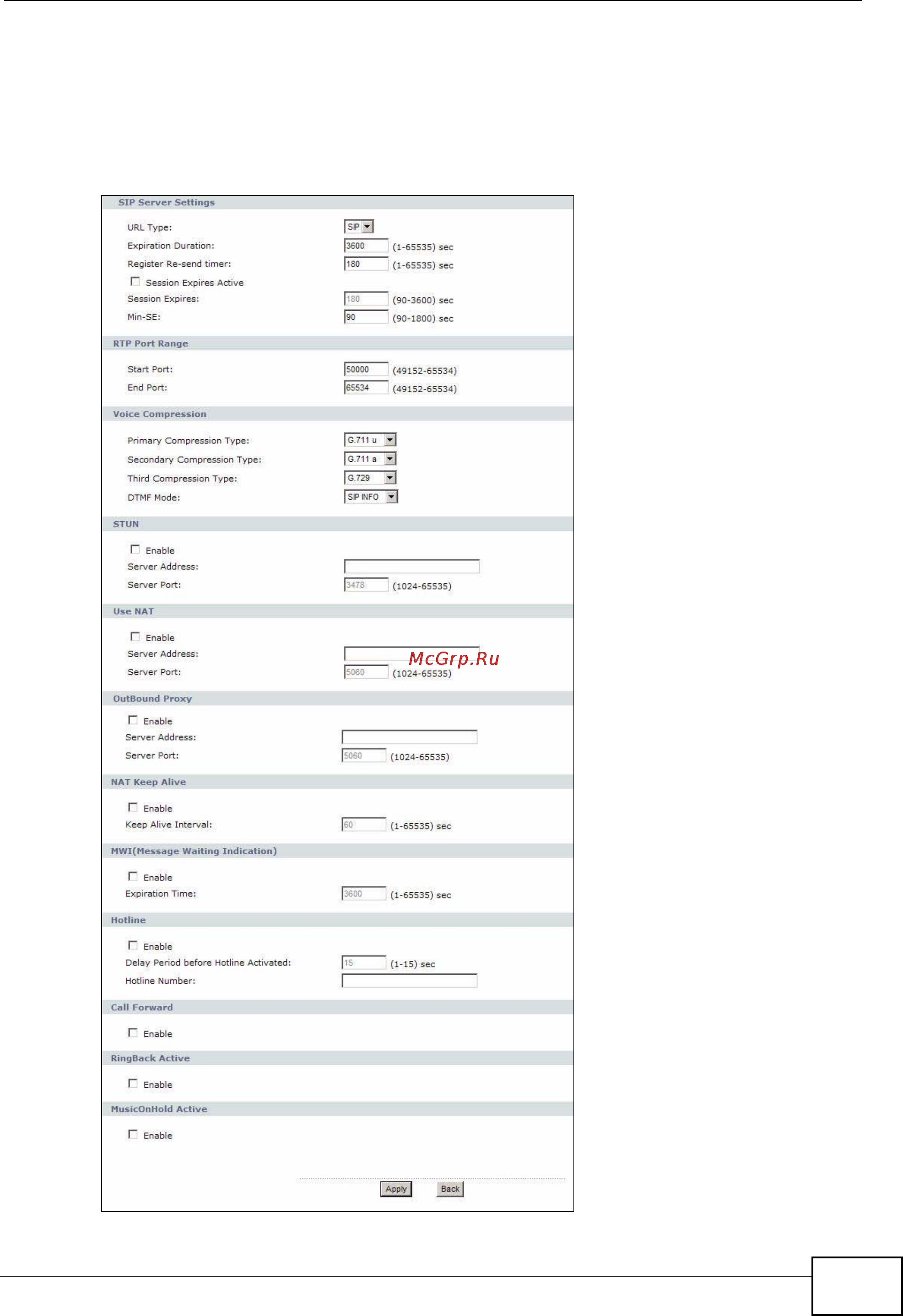

Figure 90 VoIP > SIP > SIP Settings > Advanced
