Zyxel V301-T1 [205/240] Figure 163 internet options security

Appendix C Pop-up Windows, JavaScripts and Java Permissions

V300 Series User’s Guide

205

1 In Internet Explorer, click Tools, Internet Options and then the Security tab.

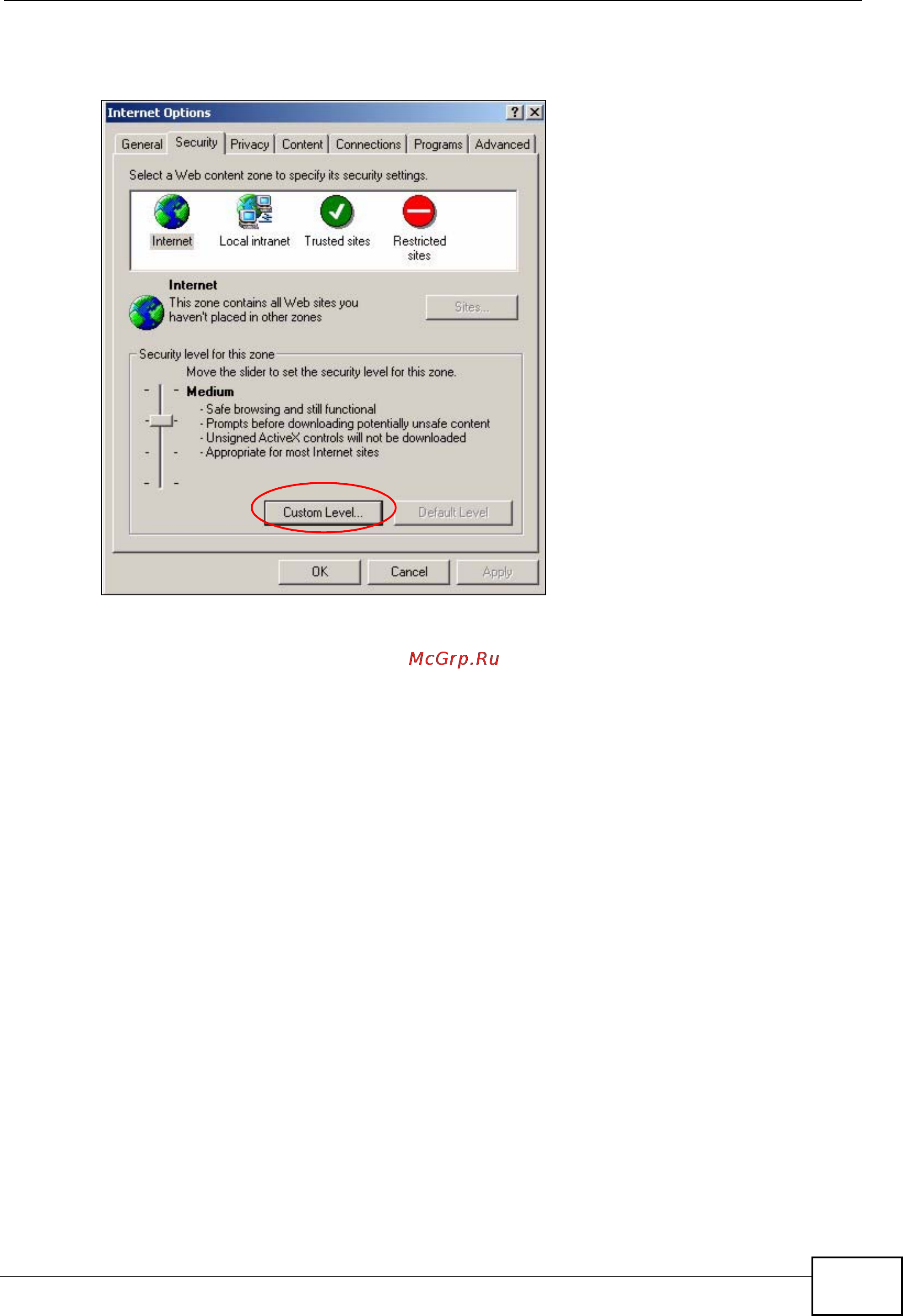

Figure 163 Internet Options: Security

2 Click the Custom Level... button.

3 Scroll down to Scripting.

4 Under Active scripting make sure that Enable is selected (the default).

5 Under Scripting of Java applets make sure that Enable is selected (the

default).
