Chapter 12 The Phone Book
V300 Series User’s Guide
130
12.3 Contact List Screen
Use this screen to see, add and edit details of your contacts. Click VoIP > Phone
Book > Contact List. The following screen displays.

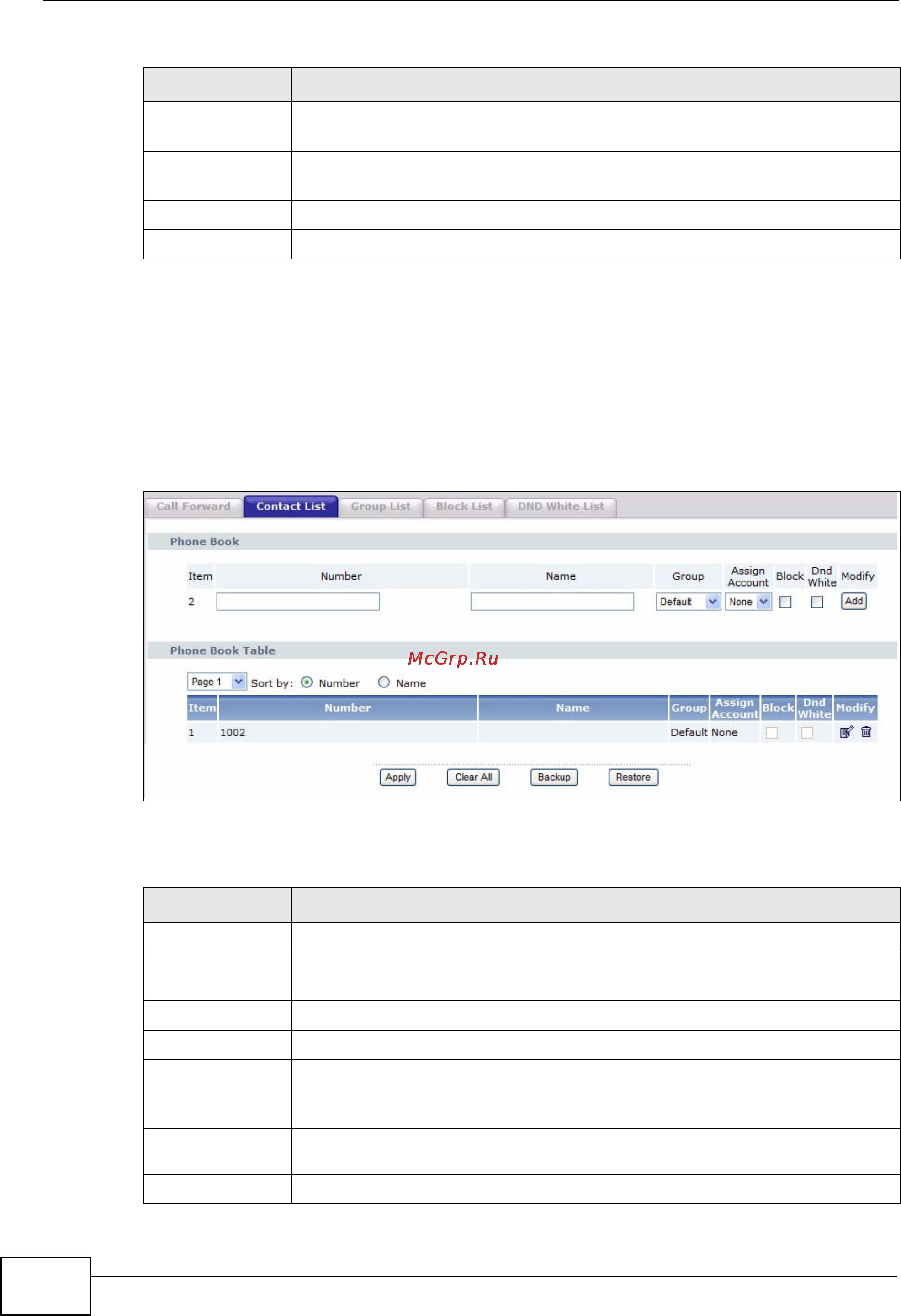

Figure 97 VoIP > Phone Book > Contact List
The following table describes the labels in this screen.
Busy Select this to forward incoming calls from this number if the V300 is in
use. It does not matter which line is being used.
DND Select this to forward incoming calls from this number if you have DND
(Do Not Disturb) turned on.
Apply
Click this to save your settings.
Reset
Click this to set every field in this screen to its last-saved value.
Table 34 VoIP > Phone Book > Call Forward (continued)
LABEL DESCRIPTION
Table 35 VoIP > Phone Book > Contact List
LABEL DESCRIPTION
Phone Book
Item This shows the index number of the list entry. The V300 supports up to
200 phonebook entries.
Number Enter the contact’s phone number.
Name
Enter the contact’s name.
Group
Select the group to which you want the contact to belong. Alternatively,
leave Default selected if you do not wish to assign the contact to a
group.
Assign
Account
At the time of writing, the V300 supports a single SIP account.
Block
Select this if you want to prevent this contact from calling you.
