Chapter 8 The Status Screens
V300 Series User’s Guide
90
8.2 Status Screen
This screen displays the overall status and performance statistics of your device.
Click Status to display it.

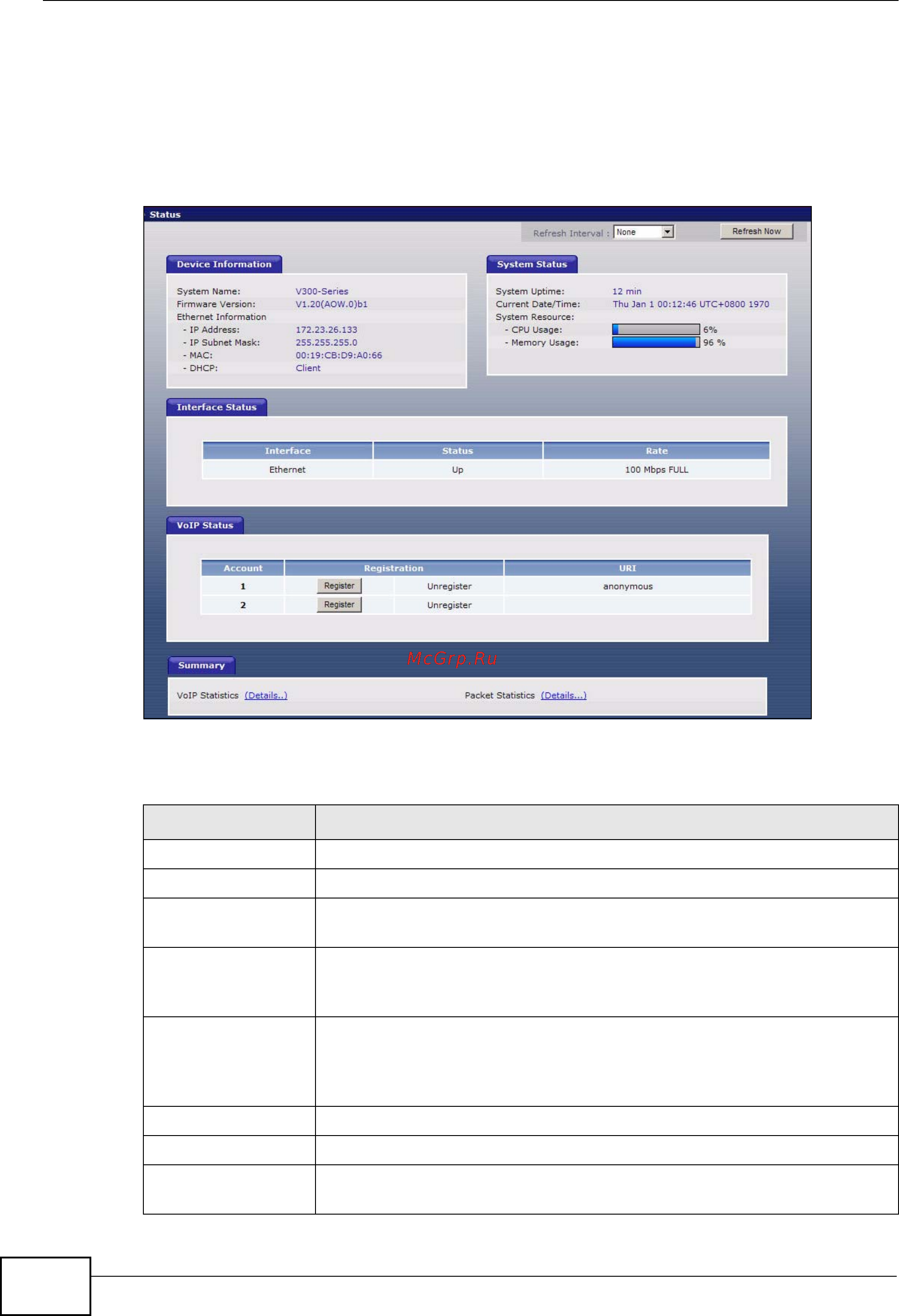

Figure 79 Status Screen
Each field is described in the following table.
Table 20 Status Screen
LABEL DESCRIPTION
Refresh Interval Enter how often you want the V300 to update this screen.
Refresh Now Click this to update this screen immediately.
Device
Information
System Name This field displays the V300’s system name. It is used for
identification. You can change this in the Maintenance > System >
General screen’s System Name field.
Firmware
Version
This field displays the current version of the firmware inside the
device. It also shows the date the firmware version was created. You
can change the firmware version by uploading new firmware in
Maintenance > Tools > Firmware.
IP Address This field displays the current IP address of the V300 on the LAN.
IP Subnet Mask This field displays the current subnet mask on the LAN.
MAC This is the MAC (Media Access Control) or Ethernet address unique
to your V300.
