Zyxel V301-T1 [169/240] Figure 119 wall mounting example

Appendix A Product Specifications

V300 Series User’s Guide

169

3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5

cm between the heads of the screws and the wall.

4 Make sure the screws are snugly fastened to the wall. They need to hold the

weight of the V300 with the connection cables.

5 Align the holes on the back of the V300 with the screws on the wall. Hang the

V300 on the screws.

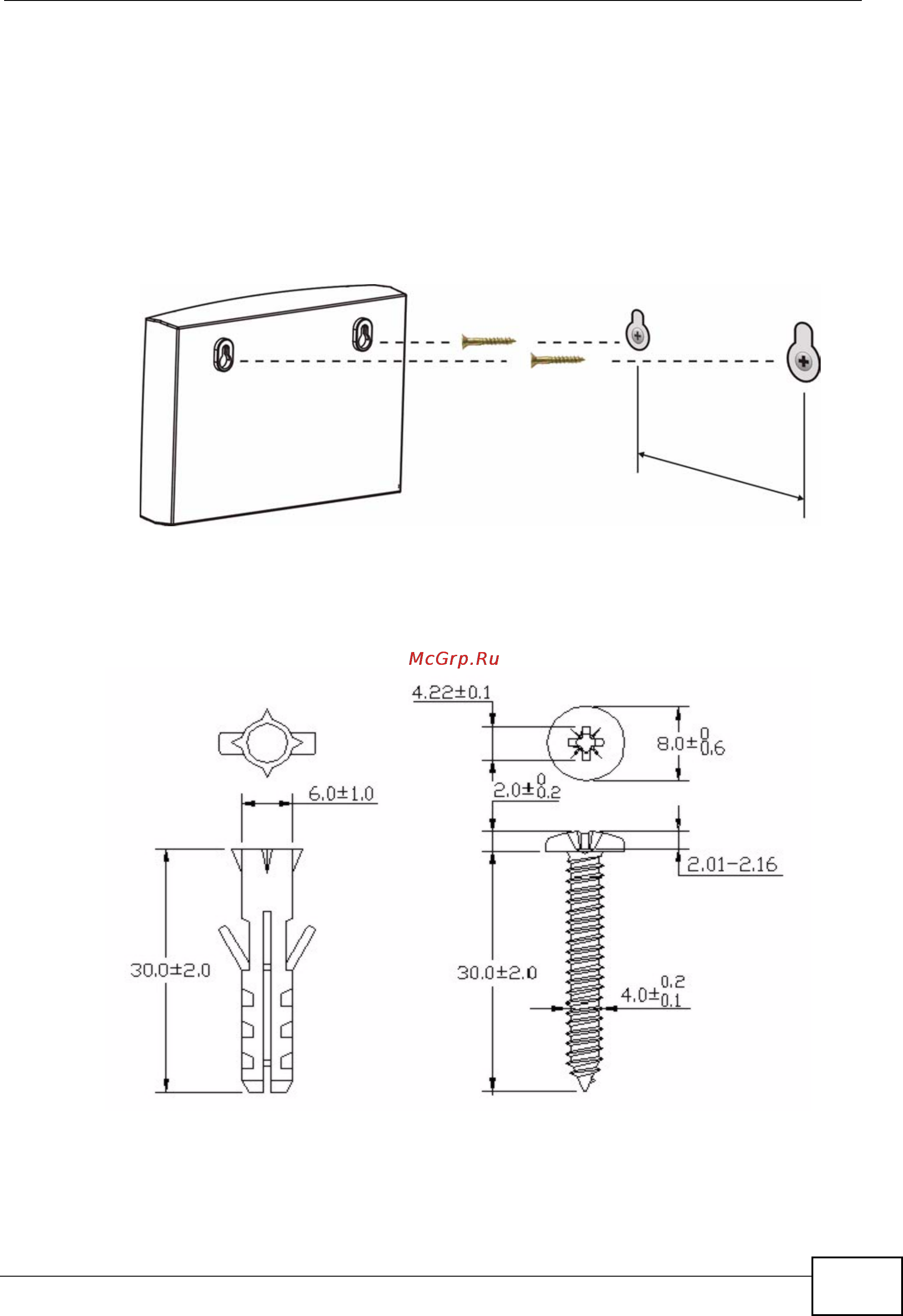

Figure 119 Wall-mounting Example

The following are dimensions of an M4 tap screw and masonry plug used for wall

mounting. All measurements are in millimeters (mm).

Figure 120 Masonry Plug and M4 Tap Screw
