Zyxel V301-T1 [176/240] Windows vista

Appendix B Setting Up Your Computer’s IP Address

V300 Series User’s Guide

176

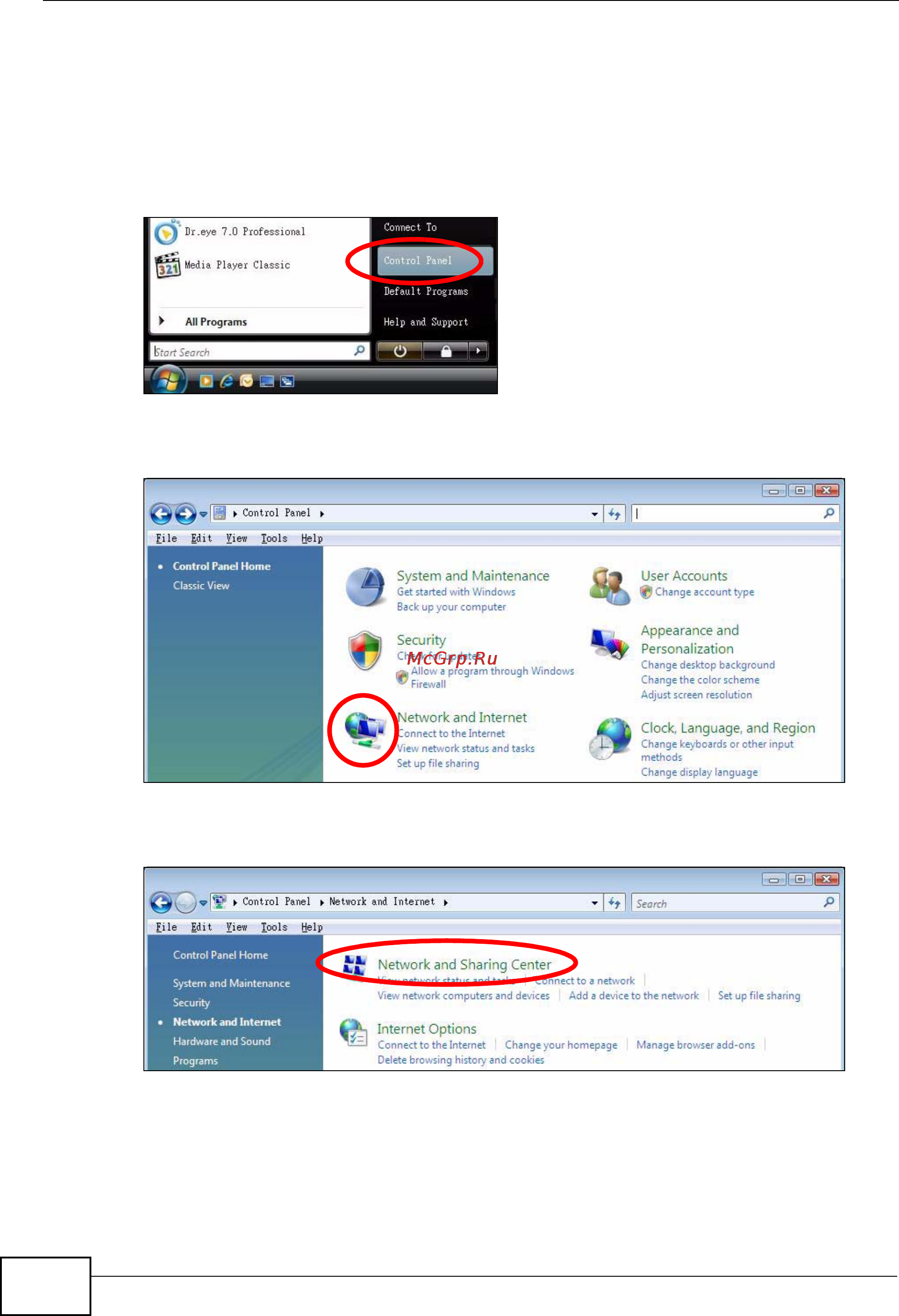

Windows Vista

This section shows screens from Windows Vista Professional.

1 Click Start > Control Panel.

Figure 126 Windows Vista: Start Menu

2 In the Control Panel, click the Network and Internet icon.

Figure 127 Windows Vista: Control Panel

3 Click the Network and Sharing Center icon.

Figure 128 Windows Vista: Network And Internet
