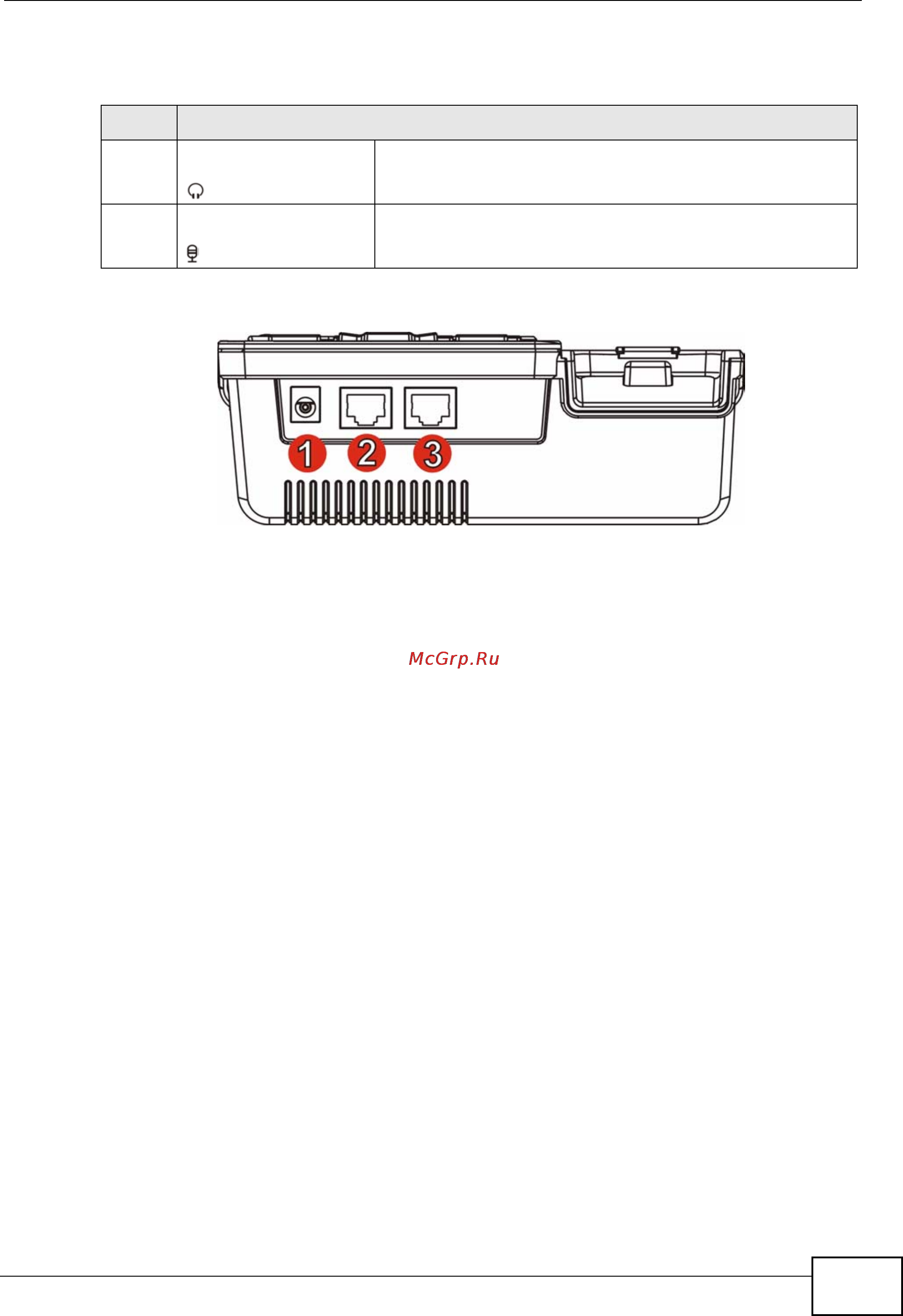

Zyxel V301-T1 [35/240] Figure 6 rear panel

Chapter 2 Hardware

V300 Series User’s Guide

The following table describes the side panel hardware.

Figure 6 Rear Panel

Table 3 Side Panel Hardware

LABEL DESCRIPTION

1 Headphone socket Use this to connect a headset’s earphone jack,

headphones, or an external loudspeaker.

2 Microphone socket Use this to connect a headset’s microphone jack, or an

external microphone.
