Appendix B Setting Up Your Computer’s IP Address
V300 Series User’s Guide
184
Verifying Settings
Check your TCP/IP properties by clicking Applications > Utilities > Network
Utilities, and then selecting the appropriate Network Interface from the Info
tab.

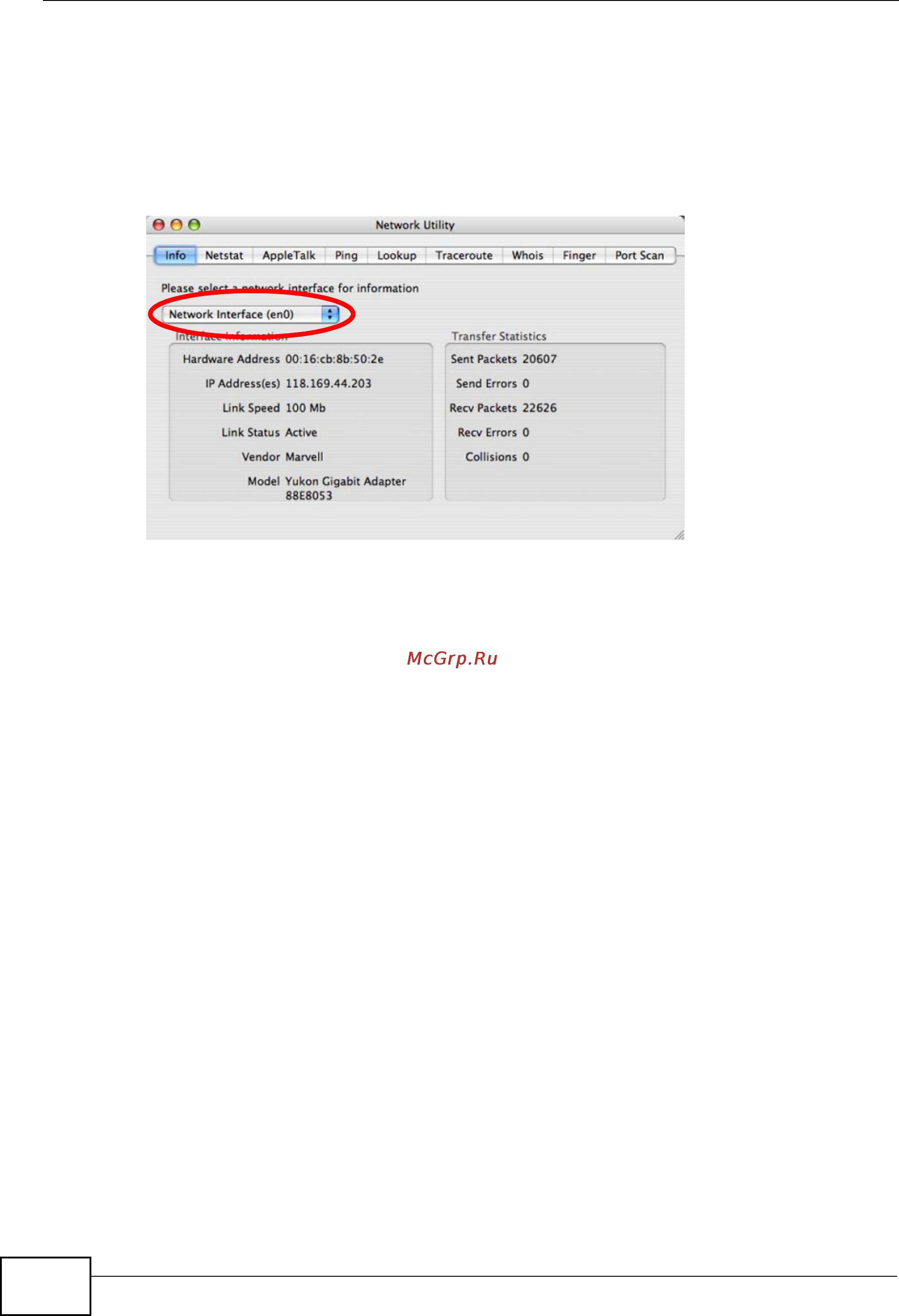

Figure 138 Mac OS X 10.4: Network Utility
